Snapper 281123BV (84940) - 28" Rear-Engine Rider, 11 HP, Series 23 PRIMARY CHAIN CASE & SMOOTH CLUTCH Spareparts

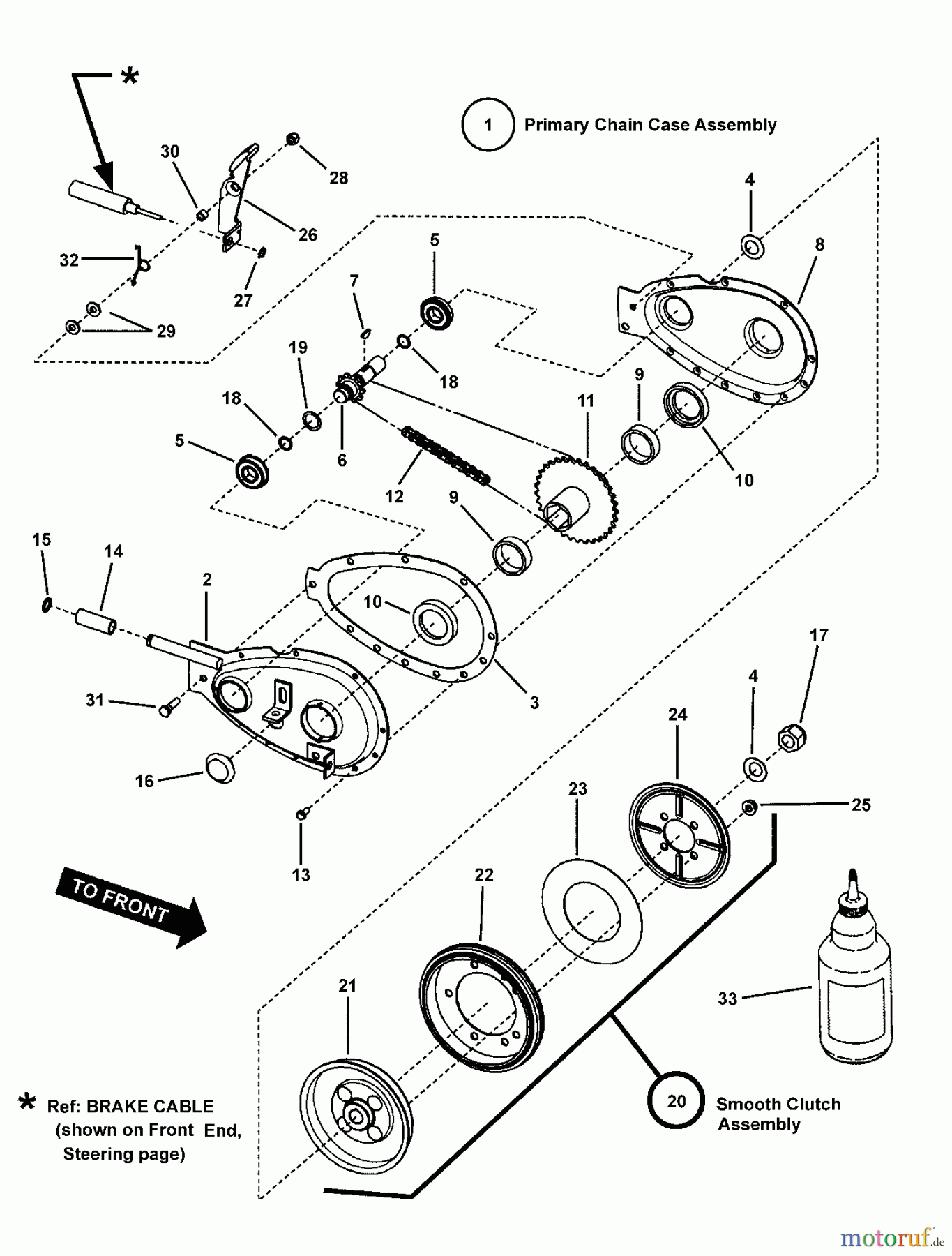

PRIMARY CHAIN CASE & SMOOTH CLUTCH 281123BV (84940) - Snapper 28" Rear-Engine Rider, 11 HP, Series 23

Snapper Reitermäher 281123BV (84940) - Snapper 28
PosArticle NumberDescription
1 BS7052683YPPRIMARKETTENKASTEN KOMPL.
2 BS7041136YPSPROCKET COVER, RH *
3 BS7028761YPGASKET,CHAIN CASE
4 BS7011121SMBW, .64X1.125X.028
5 BS7010756YPKUGELLAGER
6 BS7018963YPDRIVESHAFT
7 BS7010614YPFEDERKEIL, #5
8 BS7039778YPCOVER, SPROCKET, LH
9 BS7010942YPNADELLAGER
10 BS7011086YPSICHERUNGSSCHEIBE, NYLON
11 BS7040355YPHUB / SPROCKET
12 BS7010941YPKETTE
13 BS7090917
14 BS7022785YPROLLER
15 BS7010776YPRING, 1/2 DREHUNG
16 BS7011024YPSTOPFEN
17 BS703432SICHERUNGSMUTTER, 5/8-18
18 BS7019260YPO-RING
19 BS7027981YPZWISCHENSCHEIBE 62X.875
20 BS7600136YPKIT, SMOOTH CLUTCH
21 BS7600142YPKIT, HUB & CUP
22 Snapper KIT, FRICTION RINGBS7600135YPKIT, FRICTION RING
23 Snapper SICHERUNGSSCHEIBEBS7014523YPSICHERUNGSSCHEIBE
24 BS7032331YPPLATE, SMOOTH CLUTCH
25 BS703123NUT
26 BS7052497YPBREMSHEBEL, KOMPL.
27 BS7012313SMRING, RETAINING
28 BS703972NUT, HEX TOP, 1/4-28
29 BS7091294
30 BS7072593YPSPACER, BRAKE ARM
31 BS7091504YPSCHRAUBE, 1/4-28X1
32 BS7072406YPSPRING, TORSION, BRAK
33 BS7061017YPGREASE, SNAPPER TRAN
