Snapper 281318BE (84381) - 28" Rear-Engine Rider, 13 HP, Series 18 Fuel Tank & Operators Seat Spareparts

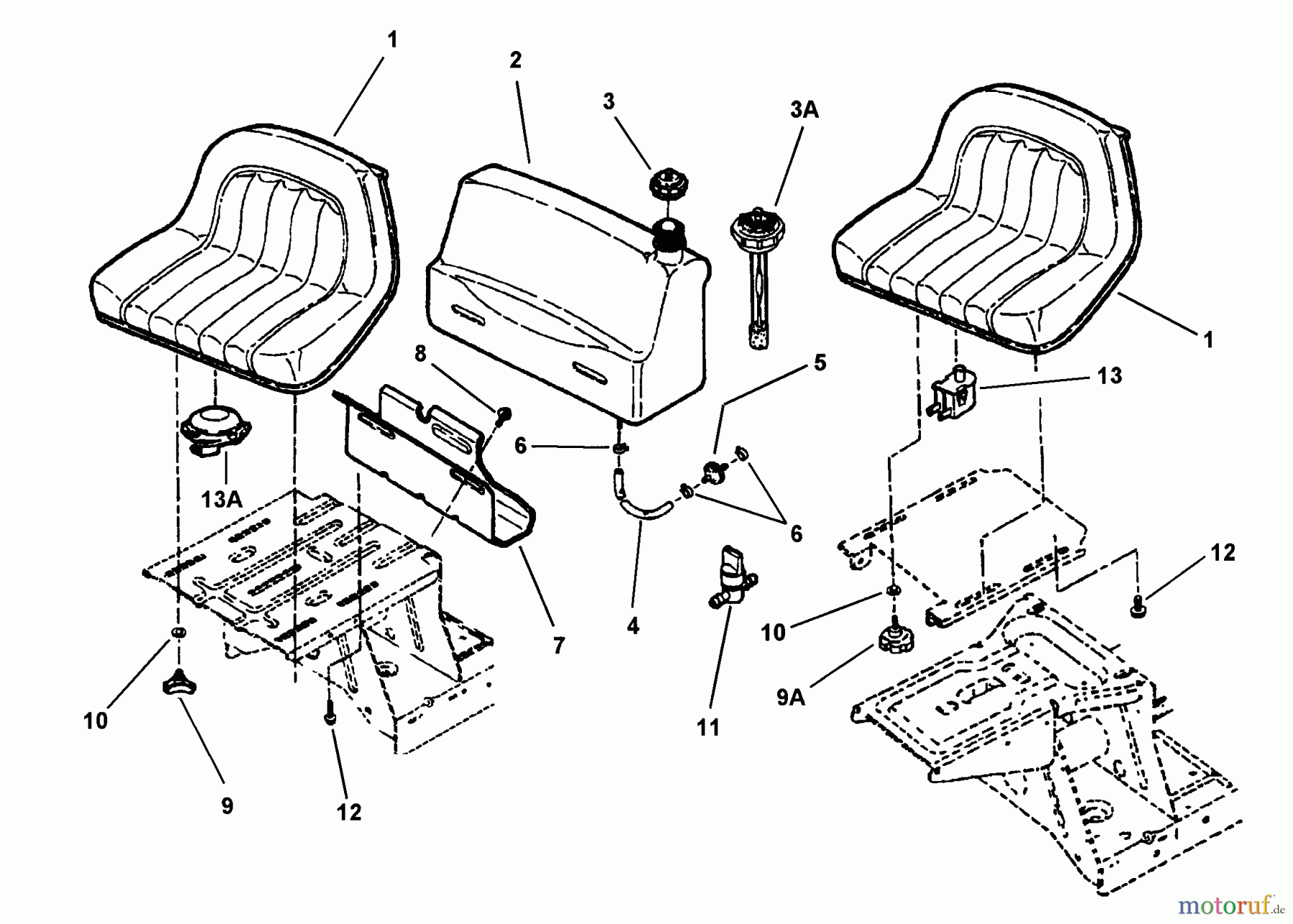

Fuel Tank & Operators Seat 281318BE (84381) - Snapper 28" Rear-Engine Rider, 13 HP, Series 18

Snapper Reitermäher 281318BE (84381) - Snapper 28
PosArticle NumberDescription
1 BS7028650YPSEAT
1 BS7028595
2 BS7051905YPGAS TANK ASMY
2 BS7052435YPGAS TANK ASMY, GAGE
3 BS7012515YPTANKDECKEL, 25
3A BS7019377YPGAS CAP / GAUGE
4 BS7076272YPHOSE, GAS LINE
4 BS7012638YPHOSE, FUEL, B&S
5 BS7014359
6 BS7029900SMKLEMME 490 X .31
7 BS7033377BMYPHALTER, KRAFTSTOFFTANK
8 BS703932SCREW, 5/16-18X.5
9 BS7023191SMKNOB, THREE PRONG 5/1
9A BS7028659YPKNOB, HINGED SEAT 5/1
10 BS703970DISTANZSTUCK
11 BS7034212YPBENZINHAHN
12 BS7091038YPBOLTZEN, 5/16-18X1/2
13 BS7023354YPSWITCH, SEAT
13A BS7029211SMSWITCH, SEAT
