Snapper 301013BE - 30" Rear-Engine Rider, 10 HP, Series 13 Rails, Lift Arms, Cam Lift (25", 28", 30", 33" Models) Spareparts

Rails, Lift Arms, Cam Lift (25", 28", 30", 33" Models) 301013BE - Snapper 30" Rear-Engine Rider, 10 HP, Series 13

Snapper Reitermäher 301013BE - Snapper 30

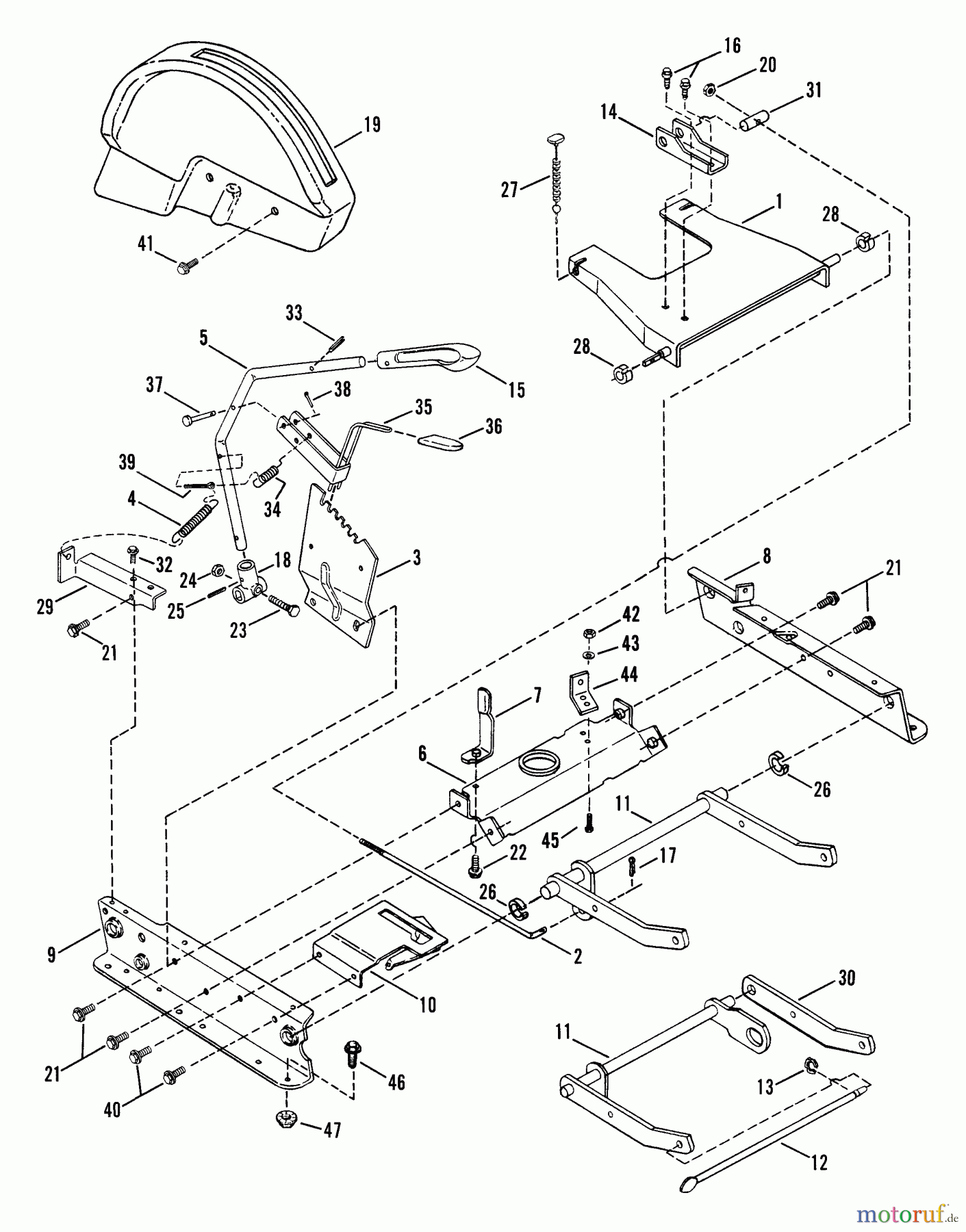

PosArticle NumberDescription
1 BS7041389YPWELD, REAR LIFT
2 BS7016122YPSTREBE
3 BS7033765YPQUADRANT
4 BS7024914YPSPRING, EXTENSION
5 BS7024878YPHANDLE, LIFT
6 BS7031838BMYPBRACE, TOP ECOAT
7 BS7031855YPTREIBRIEMENSCHUTZ
8 BS7063062YPDECK RAIL KIT
9 BS7036430YPFUHRUNGSSCHIENE RE.
10 BS7600140YPKIT, CLUTCH PLATE
11 BS7040684YPWELD, FRONT LIFT ARM
11 BS7040685YPWELD, FRONT LIFT ARM,
12 BS7022717YPROD, DECK SUPPORT
13 BS7017847YPFIXIERRING 438 AUSSEN
14 BS7033008YPARM, LEVELING
15 BS7023658YPLEVER, HANDLE, HEIGHT
16 BS7091000SMPHST, TORX
17 BS7091598SMCOTTER PIN, 1/8X3/4 Y
18 BS7025049YPHUB, DECK LIFT
19 BS7026394YPCOVER, HEIGHT OF CUT
20 BS7090854YPSECHSKANTMUTTER 3/8-24 SELBSTS
21 BS7091198SMHWST, 3/8CX5/8BP
22 BS703949SCHRAUBE, 5/16-18.625
23 BS7011035YPACHSBOLZEN LINKS
24 BS7090480YPHFLN, 5/16F BZ
25 BS7013550YPSPANNSTIFT 3/16X1
26 BS7012067YPRING, HEBEARM VORN
27 BS7027429YPCABLE, DECK LIFT
28 BS7022112YPSPACER, NYLON
29 BS7024762YPBRKT, DECK LIFT
30 BS7032997YPAUSLEGER, FRONTLIFT
31 BS7022082YPPIVOT, LEVELING
32 BS7091084YPHWST, 1/4C X3/8 BZ
33 BS2816169SMPIN, SPRING, .188 X 0
34 BS7026292YPFEDER
35 BS7041470YPWELD, LATCH
36 BS7026286YPGRIP, BLADE HANDLE
37 BS7023914YPCLEVIS PIN, .25X1.63
38 BS7090360YPCOTTER PIN, 1/16X3/4
39 BS703983SPLINT, 3/16X1.5
40 BS7090858YPMUTTER, 5/16-18X1/2 SELBSTS.
41 BS703456BOLZEN, 1/4-20X5/8, GR5
42 BS703331MUTTER, 5/16-24
43 BS90321
44 BS7032243YPSICHERUNGSBOLZEN
45 BS7090233YPHHCS, 5/16F X3/4 GR5
46 BS7090606SMHFLB, 5/16C X5/8 ZP
47 Snapper MUTTER, 5/16-18, GR5BS703409MUTTER, 5/16-18, GR5
BS7061803YPLIFT ARM KIT, SER 12
