Snapper 3011X6S - 30" Rear-Engine Rider, 11HP, Extra Tough Series 6 Chain Case, LH Fender Spareparts

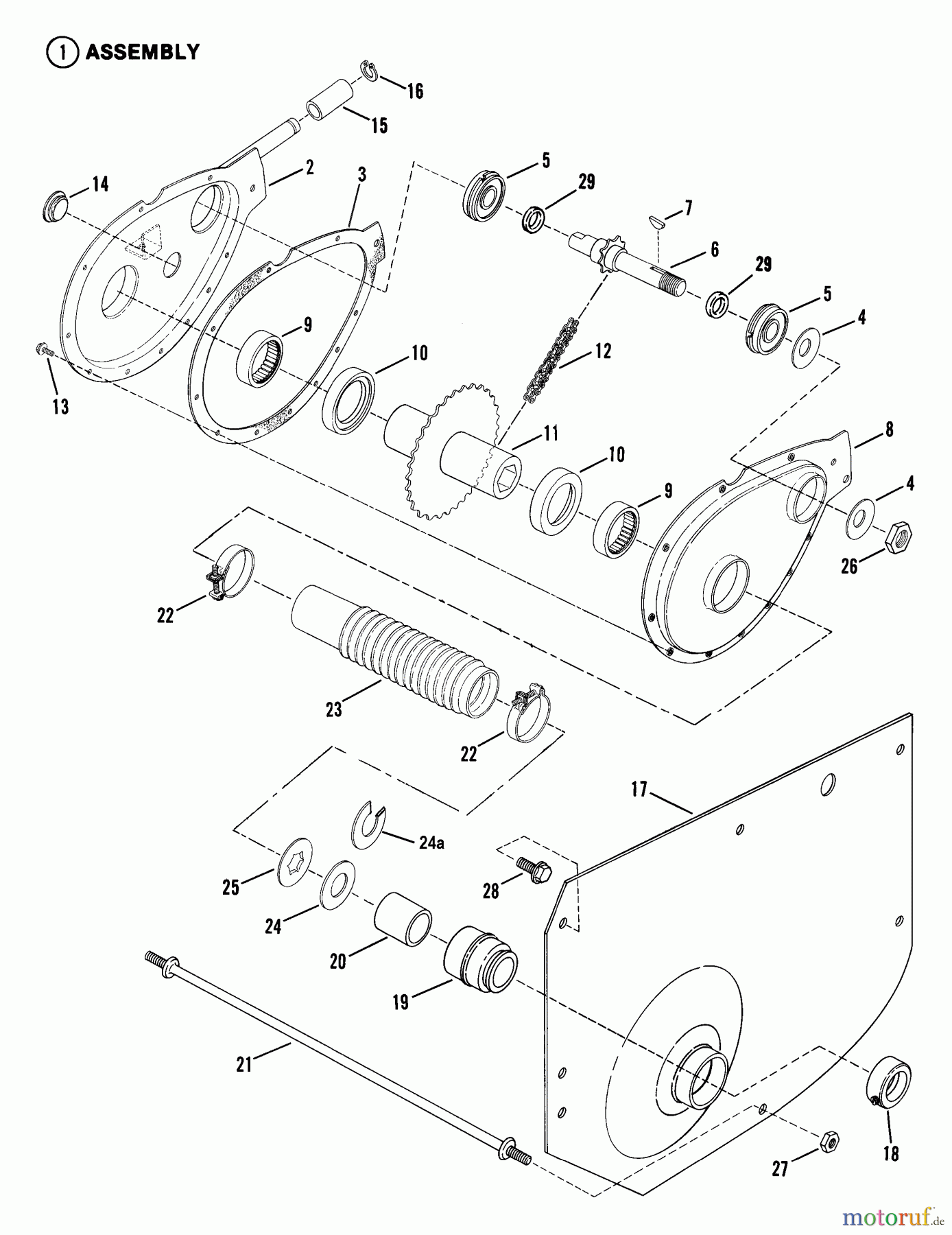

Chain Case, LH Fender 3011X6S - Snapper 30" Rear-Engine Rider, 11HP, Extra Tough Series 6

Snapper Reitermäher 3011X6S - Snapper 30
PosArticle NumberDescription
1 BS7059688
2 BS7047889YPWELD, SPROCKET COVER
3 BS7028761YPGASKET,CHAIN CASE
4 BS7011121SMBW, .64X1.125X.028
5 BS7010756YPKUGELLAGER
6 BS7010940YPZAHNRADWELLE
7 BS7010614YPFEDERKEIL, #5
8 BS7039778YPCOVER, SPROCKET, LH
9 BS7010942YPNADELLAGER
10 BS7011086YPSICHERUNGSSCHEIBE, NYLON
11 BS7040355YPHUB / SPROCKET
12 BS7010941YPKETTE
13 BS704060SCREW,HEX, #10-24X.5
14 BS7011024YPSTOPFEN
15 BS7020908YPROLLER
16 BS7010776YPRING, 1/2 DREHUNG
17 BS7037958
18 BS7014625YPSCHUTZHULLE
19 BS7014624YPLAGER. ACHSE HINTEN
20 BS7023447YPSPACER
21 BS7011070YPTUGANKER
22 BS7012332YPKLEMME, 2
23 Snapper BOOT, AXLEBS7075115YPBOOT, AXLE
24 BS7011071YPSICHERUNGSSCHEIBE
24A BS7012271
25 BS7011072YPSICHERUNGSSCHEIBE
26 BS7090356YPMUTTER
27 BS703331MUTTER, 5/16-24
28 BS703949SCHRAUBE, 5/16-18.625
-- BS7051451
29 BS7014508YPO-RING, 5/8
30 BS7060277
