Snapper CP214017R2 (84691) - 21" Walk-Behind Mower, 4 HP, 2 Cycle, Steel Deck, Series 17 GRASS BAG ACCESSORY Spareparts

GRASS BAG ACCESSORY CP214017R2 (84691) - Snapper 21" Walk-Behind Mower, 4 HP, 2 Cycle, Steel Deck, Series 17

Snapper Rasenmäher CP214017R2 (84691) - Snapper 21

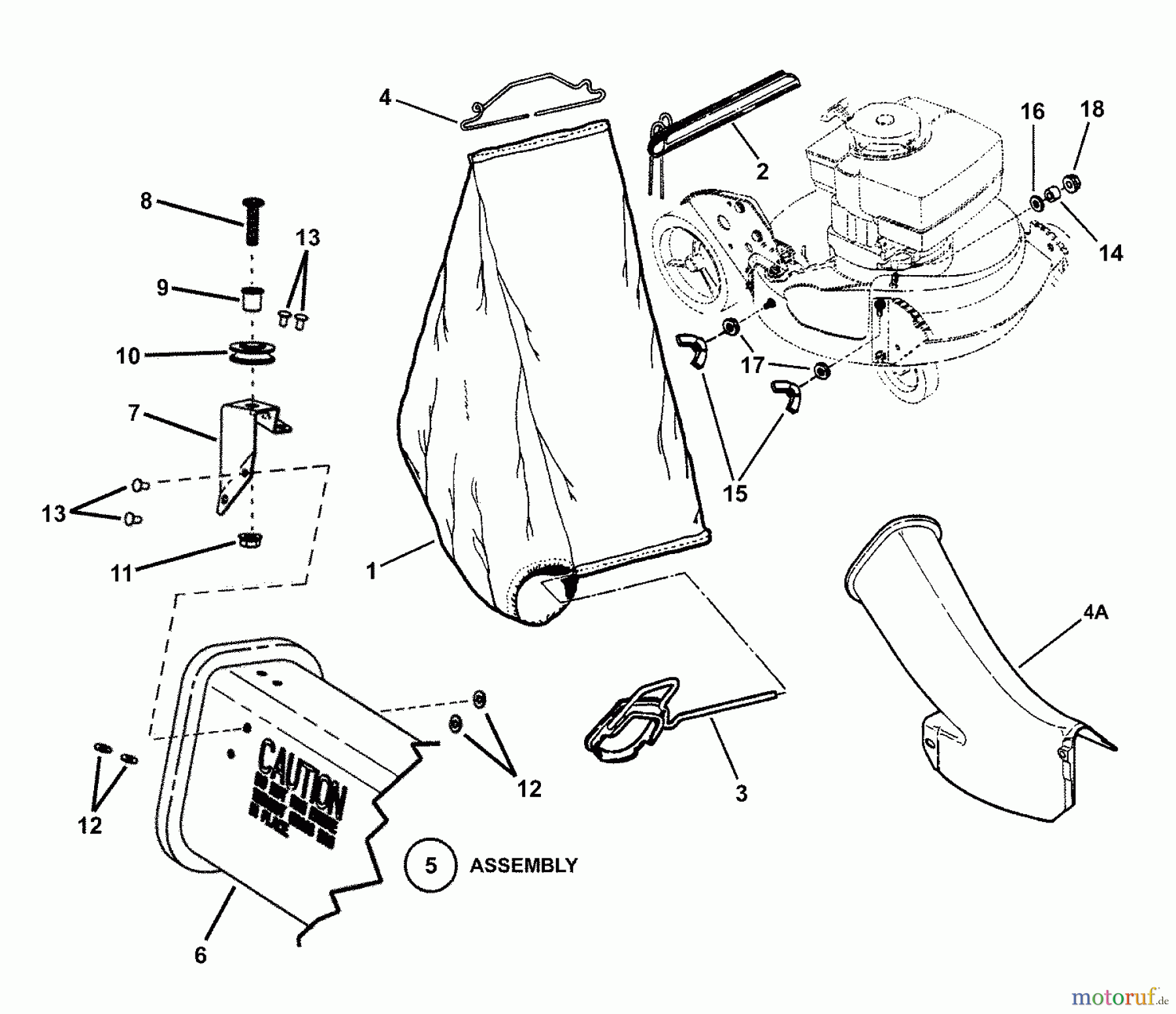

PosArticle NumberDescription
-- BS7060936YPGRASS CATCHER KIT ,SL
1 BS7074426YPGRASS BAG,SLIDER,GOLD
2 BS7050711YPSLIDER ASMY
3 BS7042489AYPBAG CONNECTOR
4 BS7019247YPWIRE, REAR BAG
4A BS7016050YPADAPTER HINTEN
5 BS7600117YPBAG ADAPTER ASSY. KIT
6 BS7047081
7 BS7047082AYPBRKT, ROPE GUIDE
8 BS7091984YPSCHRAUBE, 5/16-18X1-1/4
9 BS7012306SMBUSHING, FLANGE
10 BS7024228SM(C) PULLEY, NYLON
11 Snapper MUTTER, 5/16-18, GR5BS703409MUTTER, 5/16-18, GR5
12 BS7072107YPUNTERLAGSCH. 497X03
13 BS7013860YPNIET, 3/16X.344
14 BS7024340SMDISTANZSTUCK
15 BS7024085YPWN, W/ NYLON RING
16 BS703297RETAINER, GR5, 5/16
17 BS703350U-SCHEIBE, 5/16
18 BS704001NUT, 5/16-18
