Snapper P21506BE - 21" Walk-Behind Mower, 5 HP, Steel Deck, BBC, Series 6 Electric Start Spareparts

Electric Start P21506BE - Snapper 21" Walk-Behind Mower, 5 HP, Steel Deck, BBC, Series 6

Snapper Rasenmäher P21506BE - Snapper 21

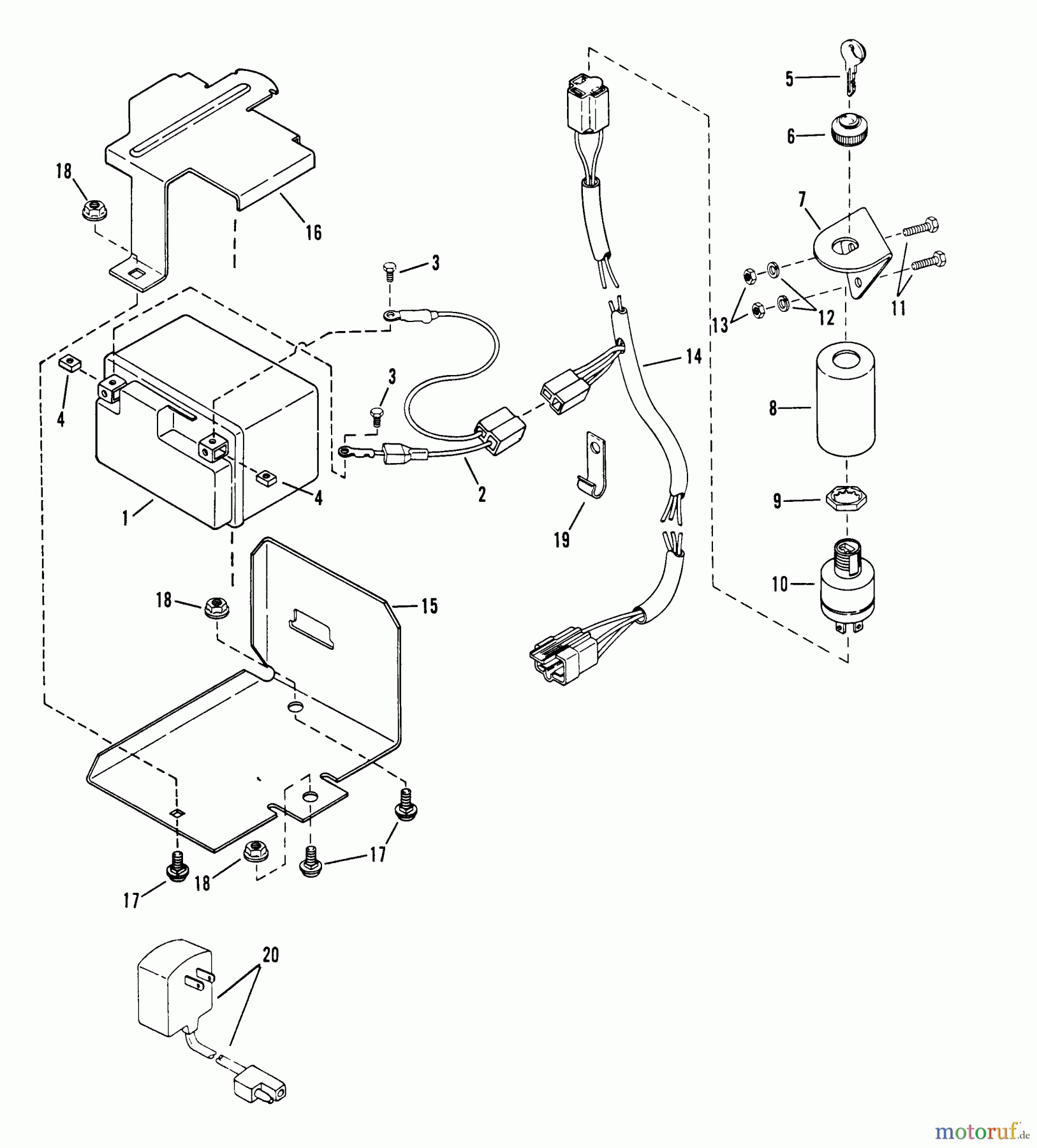

PosArticle NumberDescription
BS7067012YP*HAZ MAT* BATTERIEFLU.
1 BS7067012
2 BS7015488YPHARNESS, BATTERY
3 BS7043977
4 BS7090932YPNUT, M5 X .08
BS7051910
5 BS7011167YPKEY, IGNITION V21, PA
6 BS7015207YPSEAL & FACE NUT ASSY.
7 BS7038485YPBRKT, IGNITION SWITCH
8 BS7023894YPCOVER, KEY SWITCH
9 BS7015206YPNUT, LOCK, 3/4-20 ZP
10 BS7011139YPSWITCH W/ KEYS
11 BS7090552YPHHCS, 1/4FX1-3/8 GR5
12 BS703462U.-SCHEIBE, 1/4
13 BS7090095YPNUT, HEX, 1/4
14 BS7019298YPWIRE HARNESS
15 BS7032906YPBRKT, BATTERY
16 BS7036132AYPCOVER, BATTERY
17 BS703798BOLT, 5/16-18X0.50
18 Snapper MUTTER, 5/16-18, GR5BS703409MUTTER, 5/16-18, GR5
19 BS7012652YPCLIP, KABEL
20 BS206838YPBATTERIELADEGER.
