Snapper HC32RDKAV13ECE (5900846) - 32" Wide-Area Walk-Behind Mower, 13 HP, Rear Discharge, Hydro Drive 32" Mower Deck - Height Adjustment Group Spareparts

• Start
• Snapper
• Rasenmäher für Großflächen
• HC32RDKAV13ECE (5900846) - Snapper 32" Wide-Area Walk-Behind Mower, 13
• 32" Mower Deck - Height Adjustment Group

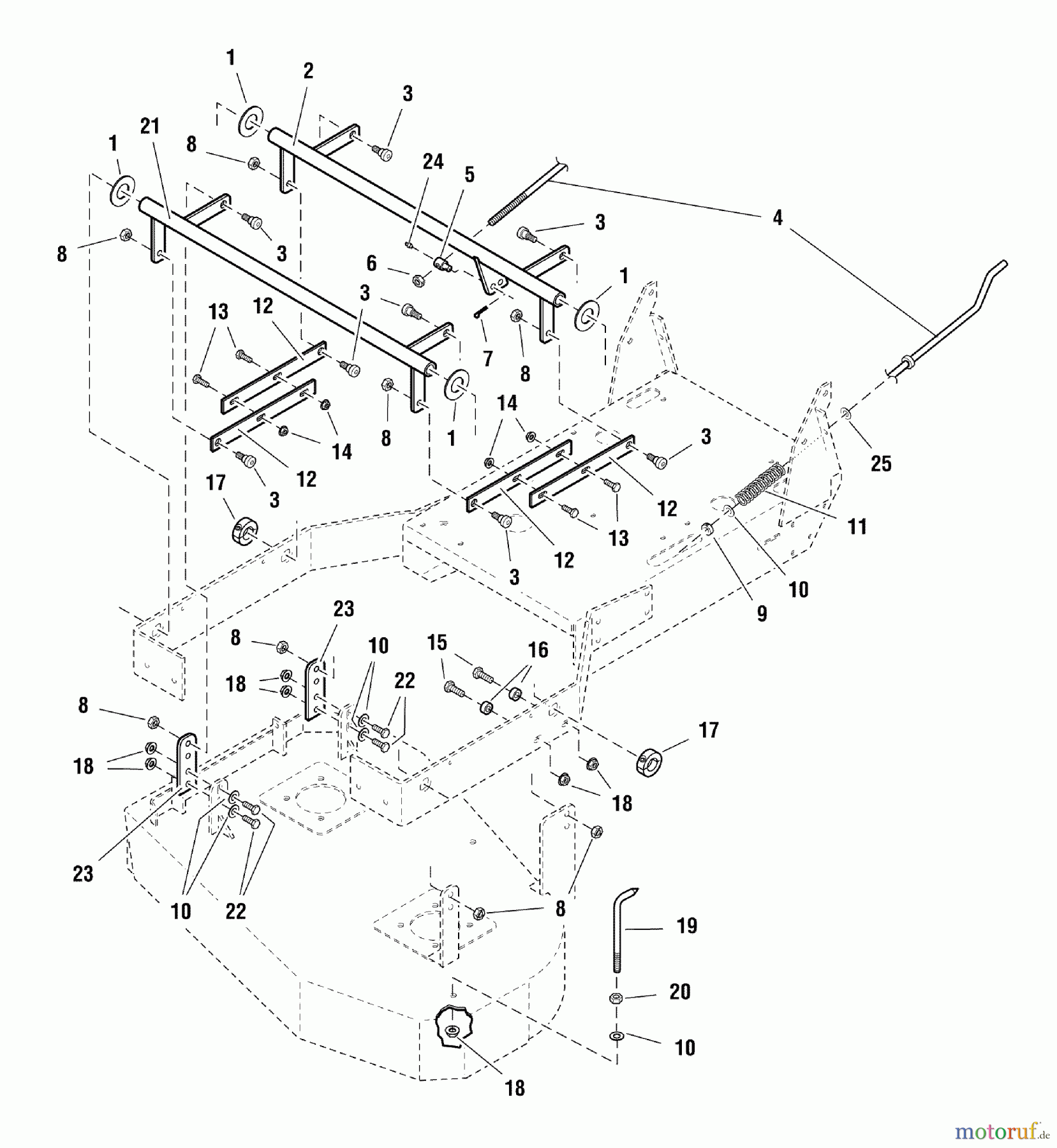

32" Mower Deck - Height Adjustment Group HC32RDKAV13ECE (5900846) - Snapper 32" Wide-Area Walk-Behind Mower, 13 HP, Rear Discharge, Hydro Drive

Pos		Article Number	Description
1		BS5025162SM
2		BS5047682B
3		BS5025356SM	BOLT, 3/8-16 X 3/8",
4		BS5047655SM	ROD CUTTER DECK HEIGH
5		BS5048526SM
6		BS5025100SM	NUT, 3/8-16 HEX SIDE
7		BS703312	PIN, COTTER, 3/32X.75
8		BS5025046SM	NUT, 3/8-16, HEX TOP
9		BS5010546SM	COLLAR, 3/8" SET
10		BS703590	WASHER, FLAT, .406
11		BS5022645SM	SPRING, REVERSE RETUR
12		BS5047710B
13		BS5025011X8SM	BOLZEN, 5/16-18 X 1" GD
14		BS5025139SM	MUTTER, 5/16-18 SECHSK.
15		BS5025013X10SM	BOLZEN, 3/8-16 X 1-1/4"
16		BS5044933SM	DISTANZRING, 39 X .75 X
17		BS5048549SM
18		BS5025128SM	MUTTER, 3/8-16 SECHSK.
19		BS5047737SM	POINTER, CUT HEIGHT
20		BS5025034SM	MUTTER, 3/8-16 HEX
21		BS5047681B
22		BS5025013X6SM	BOLZEN, 3/8-16 X 3/4" G
23		BS5048439B
24		BS5020095SM	SCHMIERNIPPEL , 1/4-2
25		BS5048548SM
