Snapper HC32RDKAV13ECE (5900846) - 32" Wide-Area Walk-Behind Mower, 13 HP, Rear Discharge, Hydro Drive 32" Rear Discharge Mower Deck - Housing, Spindles, Blades & Pulleys Group Spareparts

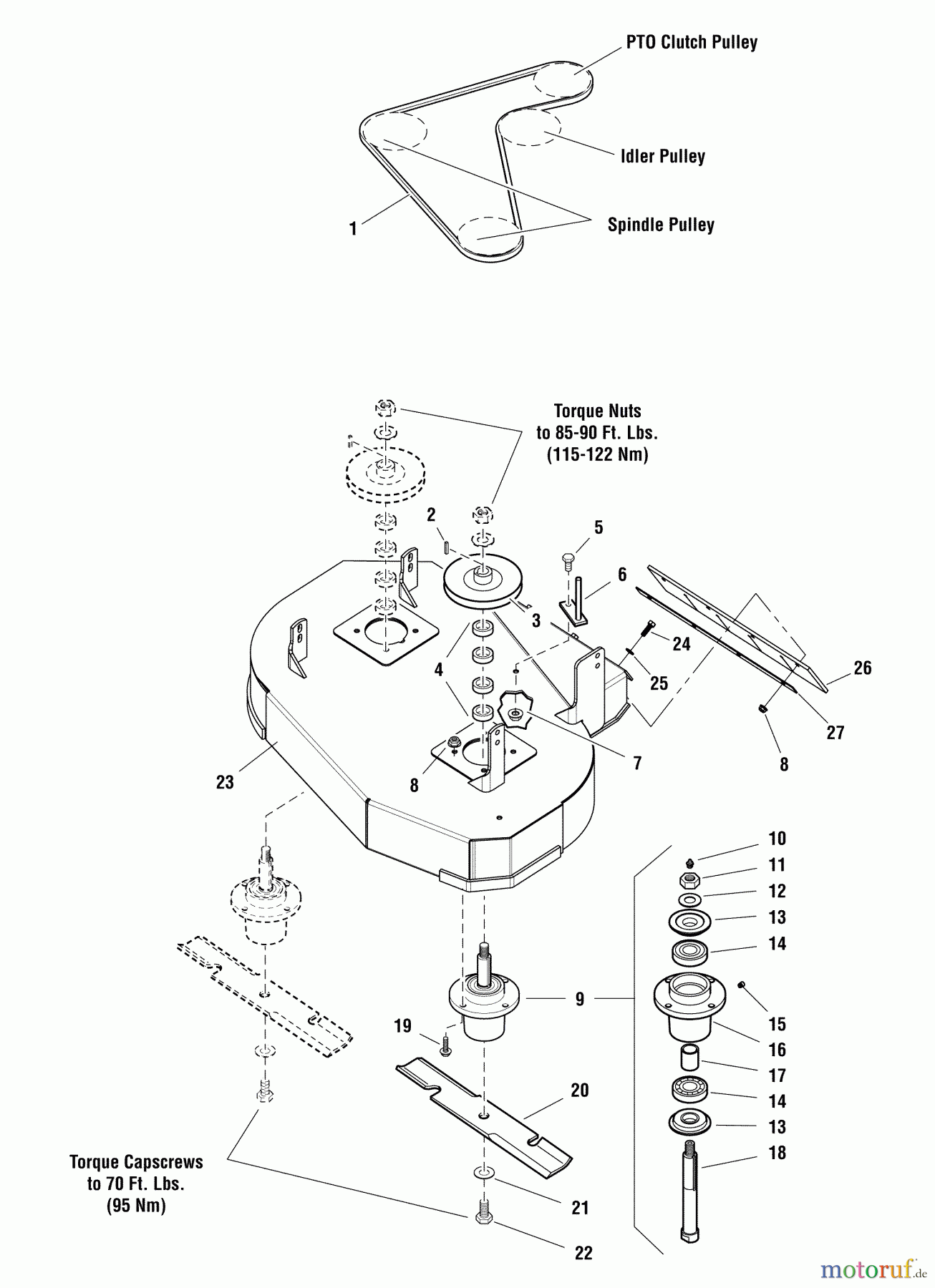

32" Rear Discharge Mower Deck - Housing, Spindles, Blades & Pulleys Group HC32RDKAV13ECE (5900846) - Snapper 32" Wide-Area Walk-Behind Mower, 13 HP, Rear Discharge, Hydro Drive

Snapper Rasenmäher für Großflächen HC32RDKAV13ECE (5900846) - Snapper 32
PosArticle NumberDescription
1 BS5022918SMBELT, #7-7169
2 BS5050407X8SM
3 BS5047638SMPULLEY, SPINDLE
4 BS5041476SMSPACER, 1.02 X 1.56 X
5 BS5025013X8SMBOLZEN, 3/8-16 X 1" GD5
6 BS5047777B
7 BS703233MUTTER, 1/4-20, GR5
8 BS703115MUTTER
9 BS5061096SMASSM, SPINDLE, LONG S
10 BS5023329SM
11 BS5025405SMNUT, 3/4-16 HEX
12 BS5025406SM
13 BS5049793SM
14 BS5023330SMBEARING, .98 X 2.44 X
15 BS5023296SMFITTING, RELIEF, 1-5
16 BS5102993YPSUB ASM, SPINDLE, LON
17 BS5061099SM
18 BS5061100SMSHAFT, SPINDLE
19 BS5023156SMBOLZEN, 5/16- 18 X 1
20 BS5020843ASMBLADE-16.25 BLACK
21 BS5025477SMWASHER, 5/8" YZ
22 BS5025320X14SMBOLT, 5/8-11 X 1-3/4"
23 BS5600326
24 BS5025011X8SMBOLZEN, 5/16-18 X 1" GD
25 BS703302U-SCHEIBE, 5/16
26 BS5405149
27 BS5405260B
