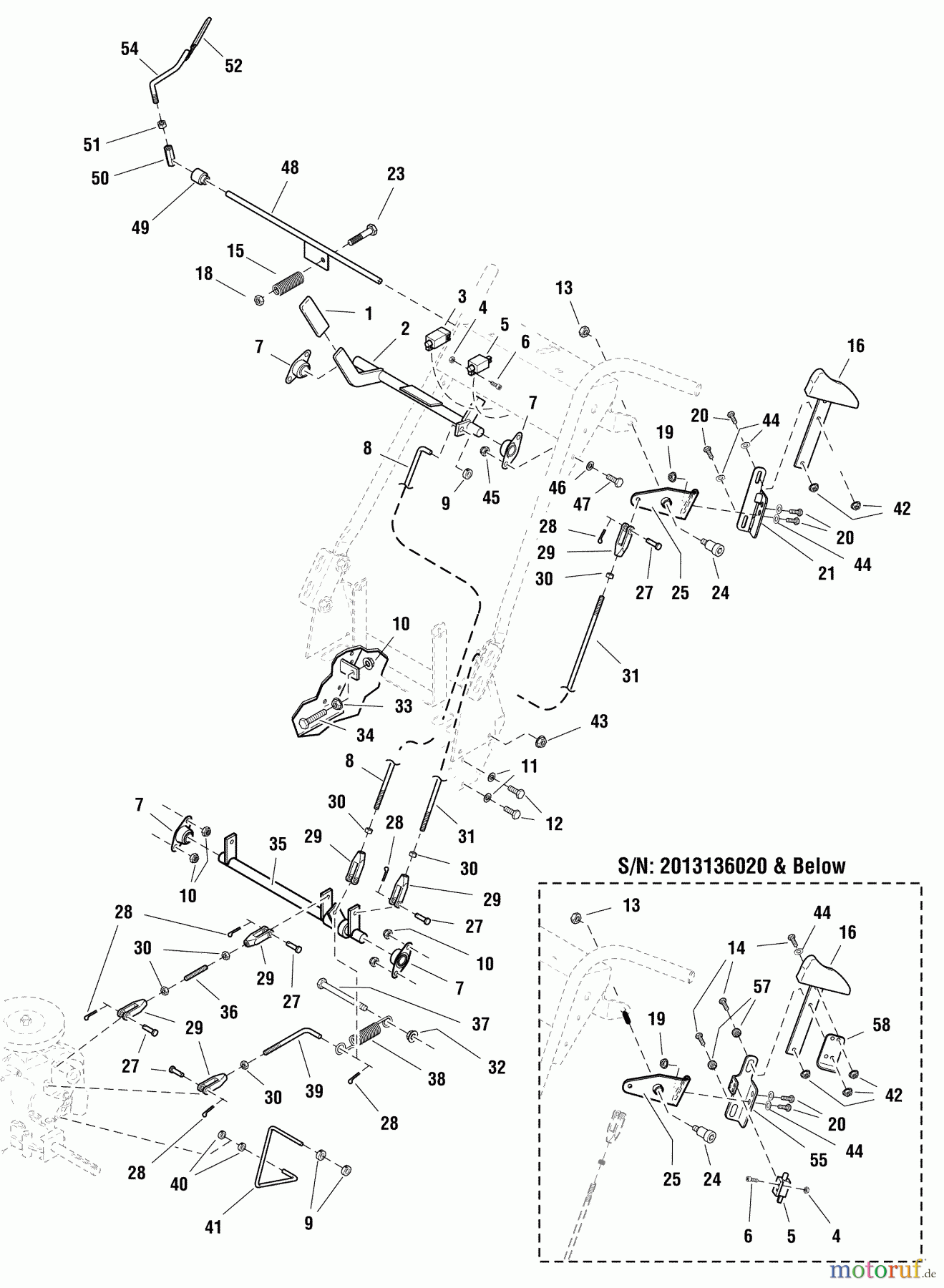

Snapper HC32RDKAV13ECE (5900846) - 32" Wide-Area Walk-Behind Mower, 13 HP, Rear Discharge, Hydro Drive Motion Control, Parking Brake, & Operator Presence Group (S/N: 2013136021 & Above) Spareparts

Motion Control, Parking Brake, & Operator Presence Group (S/N: 2013136021 & Above) HC32RDKAV13ECE (5900846) - Snapper 32" Wide-Area Walk-Behind Mower, 13 HP, Rear Discharge, Hydro Drive

Snapper Rasenmäher für Großflächen HC32RDKAV13ECE (5900846) - Snapper 32
PosArticle NumberDescription
1 BS5025510SMGRIP, FOAM, 1/4" X 1
2 BS5061278B
3 BS5022438SMSWITCH, PLUNGER, NO/N
4 BS703895NUT, HEX, 3/8-24
5 BS5021769SMSWITCH, PLUNGER, N.C.
6 BS5025179X4SMSCHRAUBE, #10-24 X 1/2
7 BS5021098SMBRONZELAGER FLANSCH
8 BS5061495SM
9 BS5020047SMMANSCHETTE 5/16 SET
10 BS703115MUTTER
11 BS703302U-SCHEIBE, 5/16
12 BS5025011X6SMBOLZEN, 5/16-18 X 3/4"
13 BS5025100SMNUT, 3/8-16 HEX SIDE
14 BS5025010X8SMBOLT, 1/4-20 X 1", GD
15 BS5061693SM
16 BS5061691SM
17 BS5061702SM
18 BS5061713B
19 BS703233MUTTER, 1/4-20, GR5
20 BS5025010X6SMBOLZEN, 1/4-20 X 3/4 X 5"
21 BS5061689SM
22 BS5061692SM
23 BS5025010X5SMBOLT, 1/4-20 X 5/8" G
24 BS5025223SM
25 BS5061683B
26 BS5061685B
27 BS5025213X8SMPIN, GABELKOPF 5/16" X
28 BS703312PIN, COTTER, 3/32X.75
29 BS5020979SMCLEVIS, 5/16-24, PLAS
30 BS703331MUTTER, 5/16-24
31 BS5047642SMROD, THUMB CONTROL LI
32 BS5025128SMMUTTER, 3/8-16 SECHSK.
33 BS5025139SMMUTTER, 5/16-18 SECHSK.
34 BS5023157SMBOLT - 5/16-18
35 BS5047697B
36 BS5047740SM
37 BS5025013X32SMBOLT, 3/8-16 X 4" GD5
38 BS5049352SM
39 BS5048328SM
40 BS5022481SM
41 BS5047732SMLEVER, DUMP VALVE
42 BS5025391SMMUTTER, 1/4-20 SECHSK.
43 BS5025394SMMUTTER, 3/8-16 SECHSK.
44 BS5025154
45 BS5025394
58 BS5061713B
