Snapper PL7H1604BV (80704) - Wide-Area Walk-Behind Mower, 16 HP, Hydro Drive, Loop Handle, Series 4 Caster Wheel & Tire Assembly Spareparts

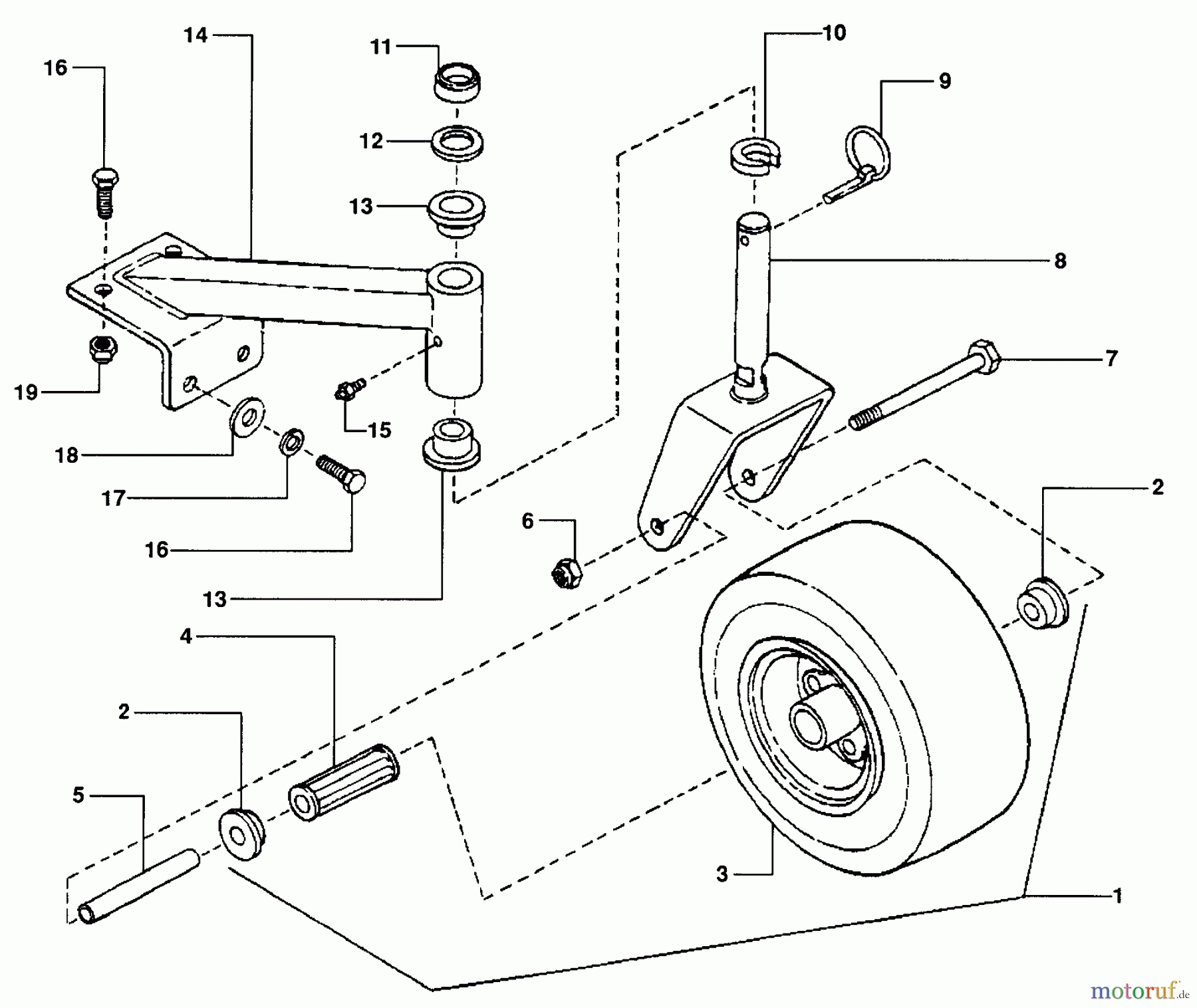

Caster Wheel & Tire Assembly PL7H1604BV (80704) - Snapper Wide-Area Walk-Behind Mower, 16 HP, Hydro Drive, Loop Handle, Series 4

Snapper Rasenmäher für Großflächen PL7H1604BV (80704) - Snapper Wide-Area Walk-Behind Mower, 16 HP, Hydro Drive, Loop Handle, Series 4 Caster Wheel & Tire Assembly
PosArticle NumberDescription
1 BS7058167YPWHEEL ASSY, 9 X 3.50-
2 BS7022394YP(C) BEARING, FLANGED
3 BS27193
4 BS7022395YP(C) BEARING, ROLLER
5 BS7022151YP(C) SLEEVE, AXLE
6 BS7091121YPHLN, NYLON, 1/2C ZP
7 BS7091326YPHHCS, 1/2C X5-1/2
8 BS7040726YP(C) WELD, CASTER YOKE
9 BS5020655SM
10 BS7019152YP(C) SPACER, CASTER
11 BS7028641YPSPACER, ELEC CL
12 BS7023747YPBUSHING, MACH, 1
13 BS7023556YPBUSHING, CASTER
14 BS7026943YP(C) CASTER SUPPORT WE
15 BS703153ZERK,GREASE FITTING
16 BS7091304SMSECHSK.SCHRAUBE, 3/8C X1 GR5 Y
17 BS703454LOCKWASHER, SPLIT 3/8
18 BS7090517SMFW, .438X1X.084 YZ
19 BS703117MUTTER
