Snapper PP7H1404KWV (80703) - Wide-Area Walk-Behind Mower, 14 HP, Hydro Drive, Pistol Grip, Series 4 52" Mower Deck Assembly Spareparts

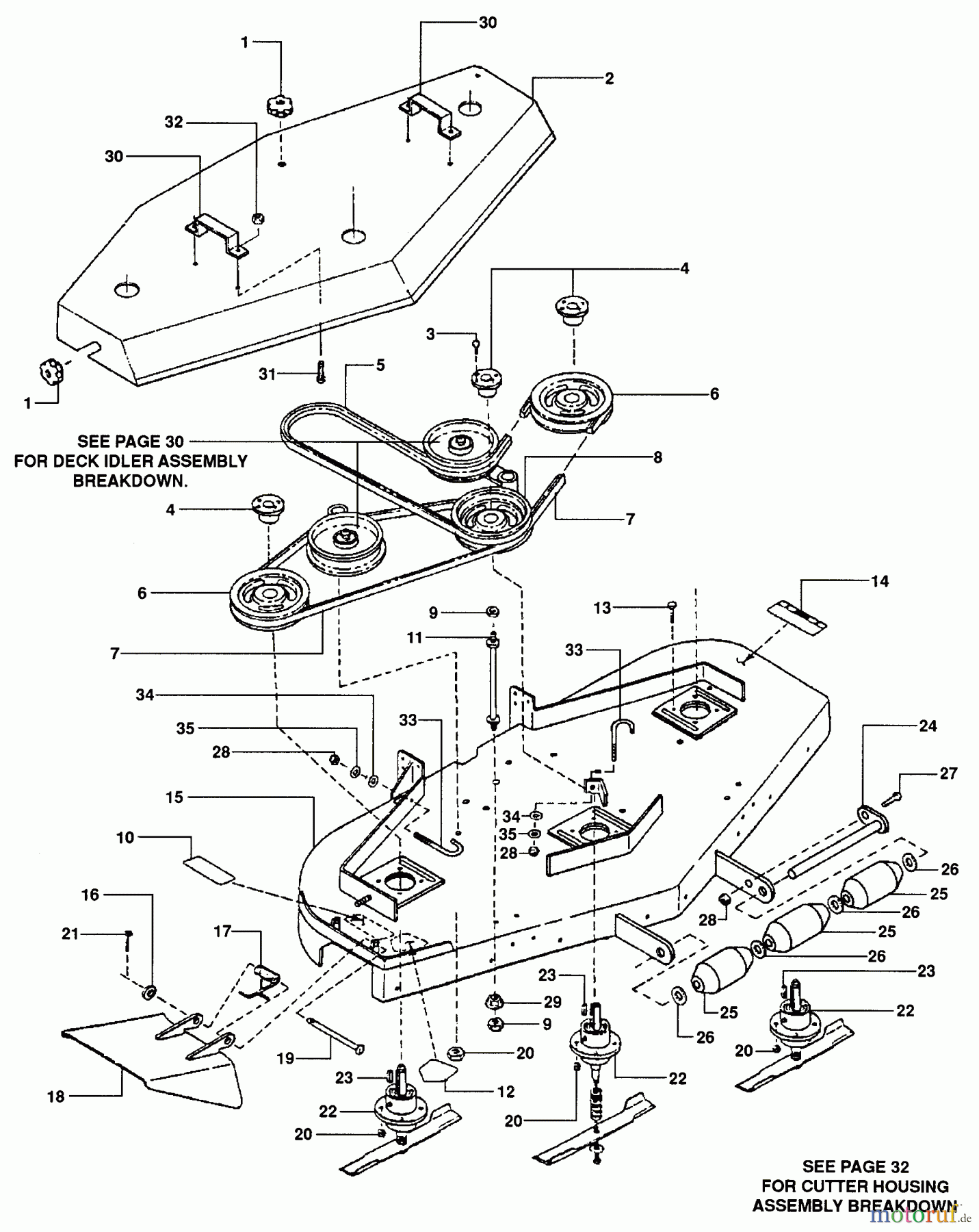

52" Mower Deck Assembly PP7H1404KWV (80703) - Snapper Wide-Area Walk-Behind Mower, 14 HP, Hydro Drive, Pistol Grip, Series 4

Snapper Rasenmäher für Großflächen PP7H1404KWV (80703) - Snapper Wide-Area Walk-Behind Mower, 14 HP, Hydro Drive, Pistol Grip, Series 4 52
PosArticle NumberDescription
1 BS703065WINGKNOB, 5/16-18
2 BS7027312YP
3 BS7090643YPHHCS, 1/4C X7/8 GR5 Z
4 BS7023381YP(C) BUSHING, TAPERLOC
5 BS7027346YP(C) V-BELT, 52" DECK
6 BS7017336YP(C) PULLEY, 5.75 BTD
7 BS7027347YP(C) V-BELT, 52" DECK
8 BS7029922YP(C) PULLEY, DBL.GROOV
9 Snapper MUTTER, 5/16-18BS703902MUTTER, 5/16-18
10 BS7022522YP(C) DECAL, WARNING
11 BS7027345YP(C) STUD, HOOD
12 BS7013010SMDECAL-DANGER, CUT FIN
13 BS703871KOPFSCHRAUBE,3/8-16X1.25
14 BS7027881
15 BS7080707
16 BS703350U-SCHEIBE, 5/16
17 BS7027950YPSPRING, CHUTE
18 BS7027329YP(C) CHUTE WELD, 52"
19 BS7024124YP(C) ROD, CHUTE PIVOT
20 BS703117MUTTER
21 BS7091313YPSPLINT
22 BS7052457YP(C) CUTTER HOUSING AS
23 BS7017033YP(C) KEY, SQUARE, 1/4X
24 BS7027327YP(C) WELD, PIVOT PIN,
25 BS7073142YPROLLER, DECK, BLACK
26 BS7027344SMFW, .668X1.324X.098 Y
27 BS7091304SMSECHSK.SCHRAUBE, 3/8C X1 GR5 Y
28 BS7091299
29 Snapper MUTTER, 5/16-18, GR5BS703409MUTTER, 5/16-18, GR5
30 BS7076585YP(C) HANDLE, HOPPER, C
31 BS703925CAPSCREW, 1/4-20X.75
32 BS7076978SMHLN, 1/4C BZ
33 BS7029695YP(C) J-HOOK
34 BS7090517SMFW, .438X1X.084 YZ
35 BS703454LOCKWASHER, SPLIT 3/8
