Snapper SPE131KW - Wide-Area Walk-Behind Mower, 13 HP, Express, Gear Drive, Series 1 36" MOWER DECK ASSEMBLY Spareparts

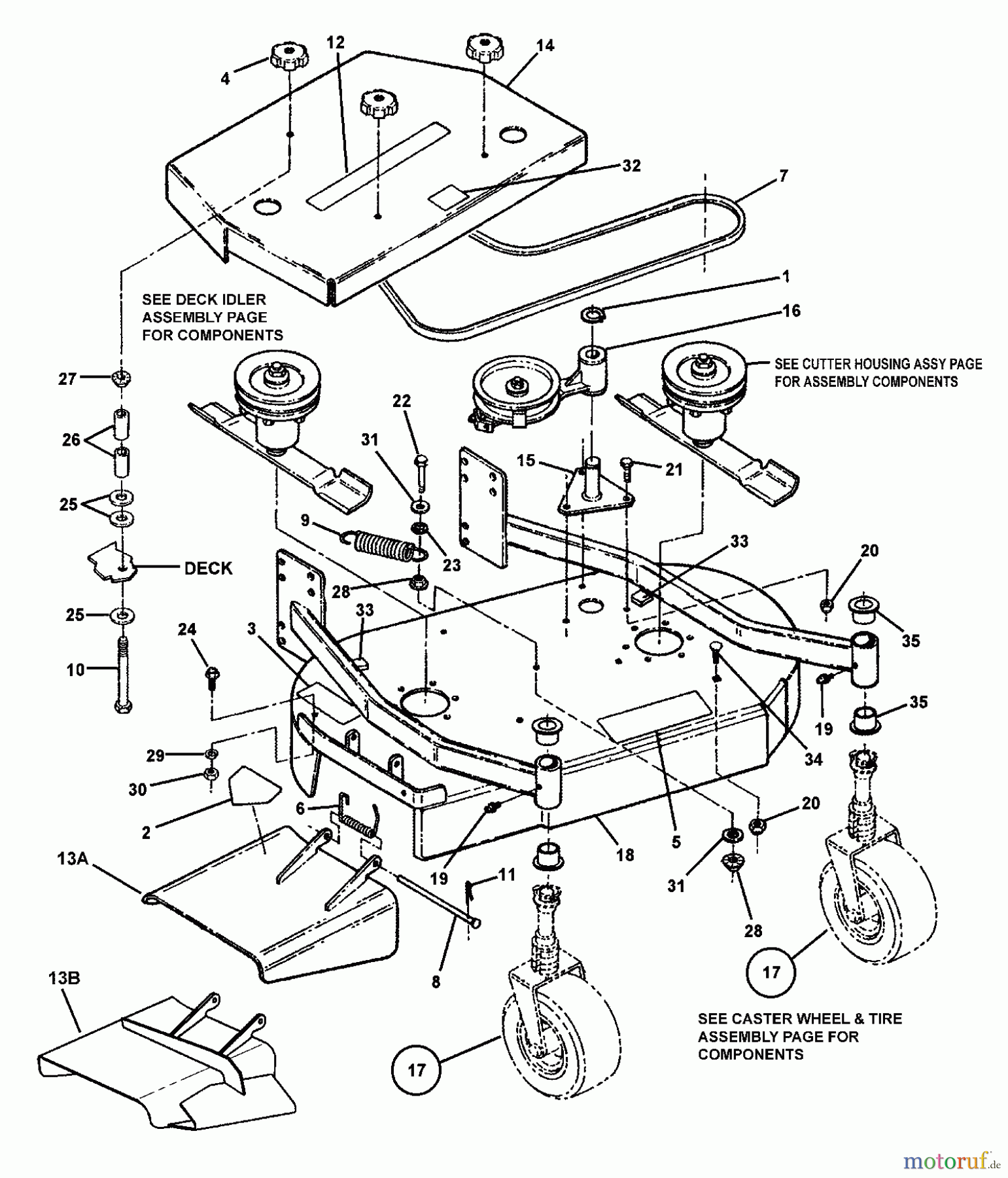

36" MOWER DECK ASSEMBLY SPE131KW - Snapper Wide-Area Walk-Behind Mower, 13 HP, Express, Gear Drive, Series 1

Snapper Rasenmäher für Großflächen SPE131KW - Snapper Wide-Area Walk-Behind Mower, 13 HP, Express, Gear Drive, Series 1 36
PosArticle NumberDescription
1 BS7012709YPRETAINING RING, 1" OD
2 BS7013010SMDECAL-DANGER, CUT FIN
3 BS7022522YP(C) DECAL, WARNING
3 BS7073647YP(C) DECAL, CAUTION
4 BS703065WINGKNOB, 5/16-18
5 BS7024156
6 BS7027950YPSPRING, CHUTE
7 BS7035710YP(C) V-BELT, DECK 36
8 BS7029277YPPIN, HINGE, CHUTE
9 BS7029278YP(C) SPRING, IDLER
10 BS7076940YP(C) HHCS, 5/16C X4-1/
11 BS7091313YPSPLINT
12A BS7046580
12B BS7074862YPDECAL, SNAPPER PRO
13A BS7034962YP(C) DEFLECTOR, CHUTE
13B BS7058871YP(C) WELD, CHUTE, 36",
14 BS7034963
15 BS7041295YP(C) WELD, IDLER PIVOT
16 BS7054018YP(C) IDLER ARM ASSY, 3
17 BS7057736
18 BS7046294
19 BS703153ZERK,GREASE FITTING
20 BS703117MUTTER
21 BS7091304SMSECHSK.SCHRAUBE, 3/8C X1 GR5 Y
22 BS7091305SMHHCS, 3/8C X2 GR5 YZ
23 BS703986RETAINER, PUSHNUT,3/8
24 BS7091323YPHFLB, 1/2C X1-1/4
25 BS703302U-SCHEIBE, 5/16
26 BS7021128YPSPACER, DIFF. CASE
27 Snapper MUTTER, 5/16-18, GR5BS703409MUTTER, 5/16-18, GR5
28 BS703333MUTTER, 3/8-16
29 BS5025331SMLOCKWASHER, 1/2
30 BS7091316YPHN, 1/2C GR.B YZ
31 BS7091331SMU.-SCHEIBE.406X1.5X.120 YZ
32 BS7044796YP(C) DECAL, DECK SIZE,
32 BS7075564YPDECAL, DECK 36", SILV
33 BS7077345YPPAD, GAS TANK
34 BS703448BOLZEN, 3/8-16X.75 G5
35 BS7023556YPBUSHING, CASTER
-- BS7054011YPSPINDLE ASMY
