Snapper 1810 - Zero-Turn Mower, 18 HP Kohler, Twin Stick, Unistat Drive, ZTR Series 0 Steering Control Parts, 1810 & 2010 Spareparts

• Start
• Snapper
• Nullwendekreismäher, Zero-Turn
• 1810 - Snapper Zero-Turn Mower, 18 HP Kohler, Twin Stick, Unistat Driv
• Steering Control Parts, 1810 & 2010

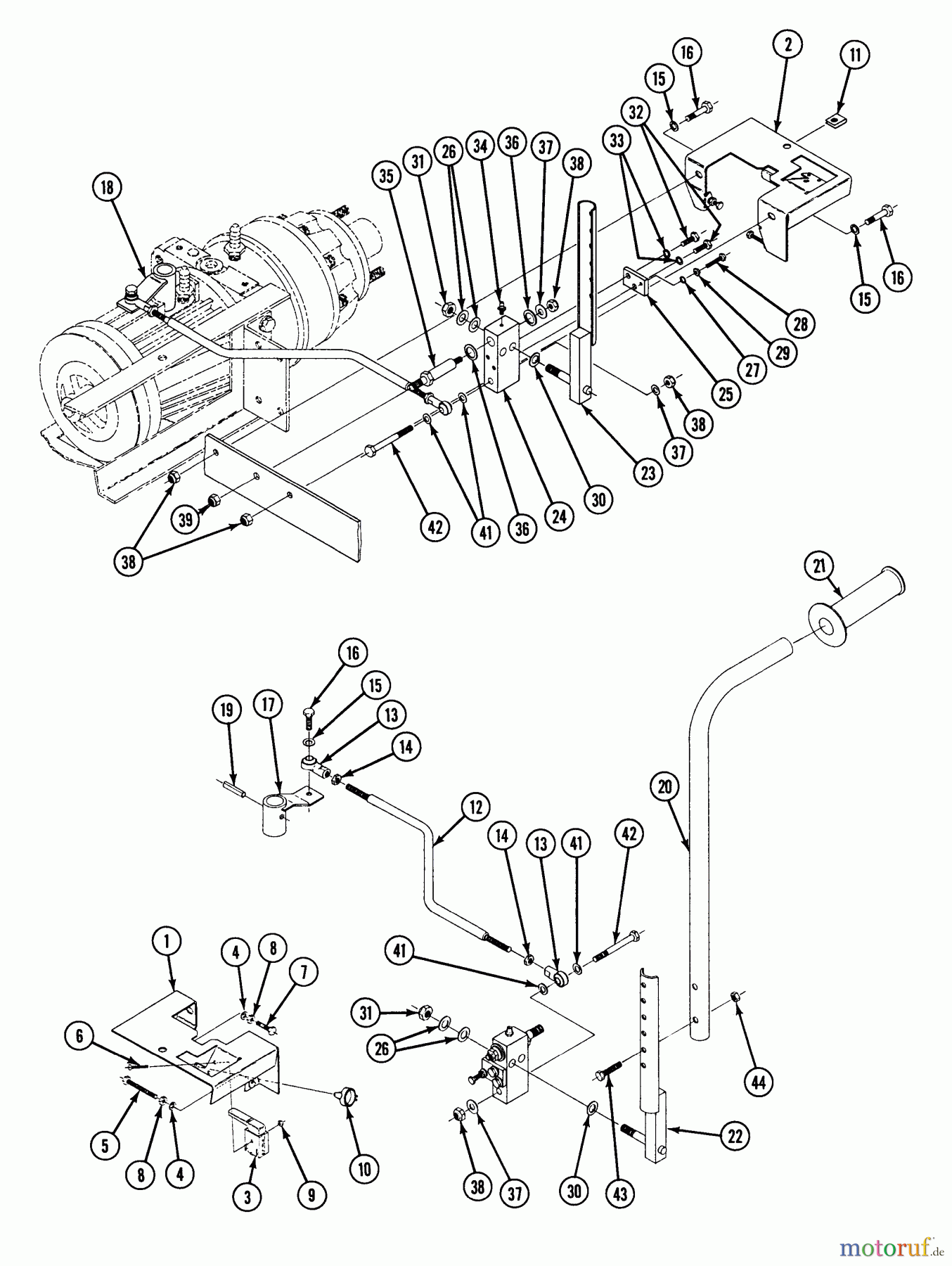

Steering Control Parts, 1810 & 2010 1810 - Snapper Zero-Turn Mower, 18 HP Kohler, Twin Stick, Unistat Drive, ZTR Series 0

Pos		Article Number	Description
		BS7062002
		BS7062003
1		BS69987
2		BS69988
3		BS7079935YP	(C) SWITCH, NEUTRAL
4		BS7090052SM	SLW, .256X.487X.062 Z
5		BS79939
6		BS7079946
7		BS7077761YP	(C) CAPSCREW, 1/4C X1
8		BS703127	MUTTER
9		BS7090376YP	MUTTER, 10-32 SELBSTS.
10		BS7079854YP	(C) FITTING, 1/2 ROSE
11		BS7079945
11		BS7062028
12		BS69980
13		BS7079954
14		BS703895	NUT, HEX, 3/8-24
15		BS7079268YP	SLW, 3/8 HEAVY ZP
16		BS7091304SM	SECHSK.SCHRAUBE, 3/8C X1 GR5 Y
17		BS7079994
18		BS7079995
19		BS7079364YP	(C) PIN, SPIROL, 5/16
19		BS7062010
20		BS7079979YP	(C) UPPER CONTROL LEV
21		BS7079957
21		BS7062000
21		BS7062001
22		BS7079977
23		BS7079978
24		BS7079985YP	BLOCK, ROTARY
25		BS7079983
26		BS7079306YP	(C) WASHER, 1/2 NOM T
27		BS7090052
28		BS7077761
29		BS7091576
30		BS7079984
31		BS7079277
32		BS7079950
33		BS7079267YP	(C) LOCKWASHER, 5/16
34		BS703153	ZERK,GREASE FITTING
35		BS7062013YP
36		BS7062014
37		BS7090517SM	FW, .438X1X.084 YZ
38		BS703117	MUTTER
39		BS7079277
?40		BS703871	KOPFSCHRAUBE,3/8-16X1.25
41		BS703350	U-SCHEIBE, 5/16
42		BS703133	HHCS,3/8-16X2.750
43		BS704288
44		BS703902	MUTTER, 5/16-18
