Snapper MZM2200KH (84412) - 22 HP Zero-Turn Mower, Kohler, Mid Mount, Z-Rider Series 0 Hydro Reservoir Assembly (Left Hand) Spareparts

• Start
• Snapper
• Nullwendekreismäher, Zero-Turn
• MZM2200KH (84412) - Snapper 22 HP Zero-Turn Mower, Kohler, Mid Mount,
• Hydro Reservoir Assembly (Left Hand)

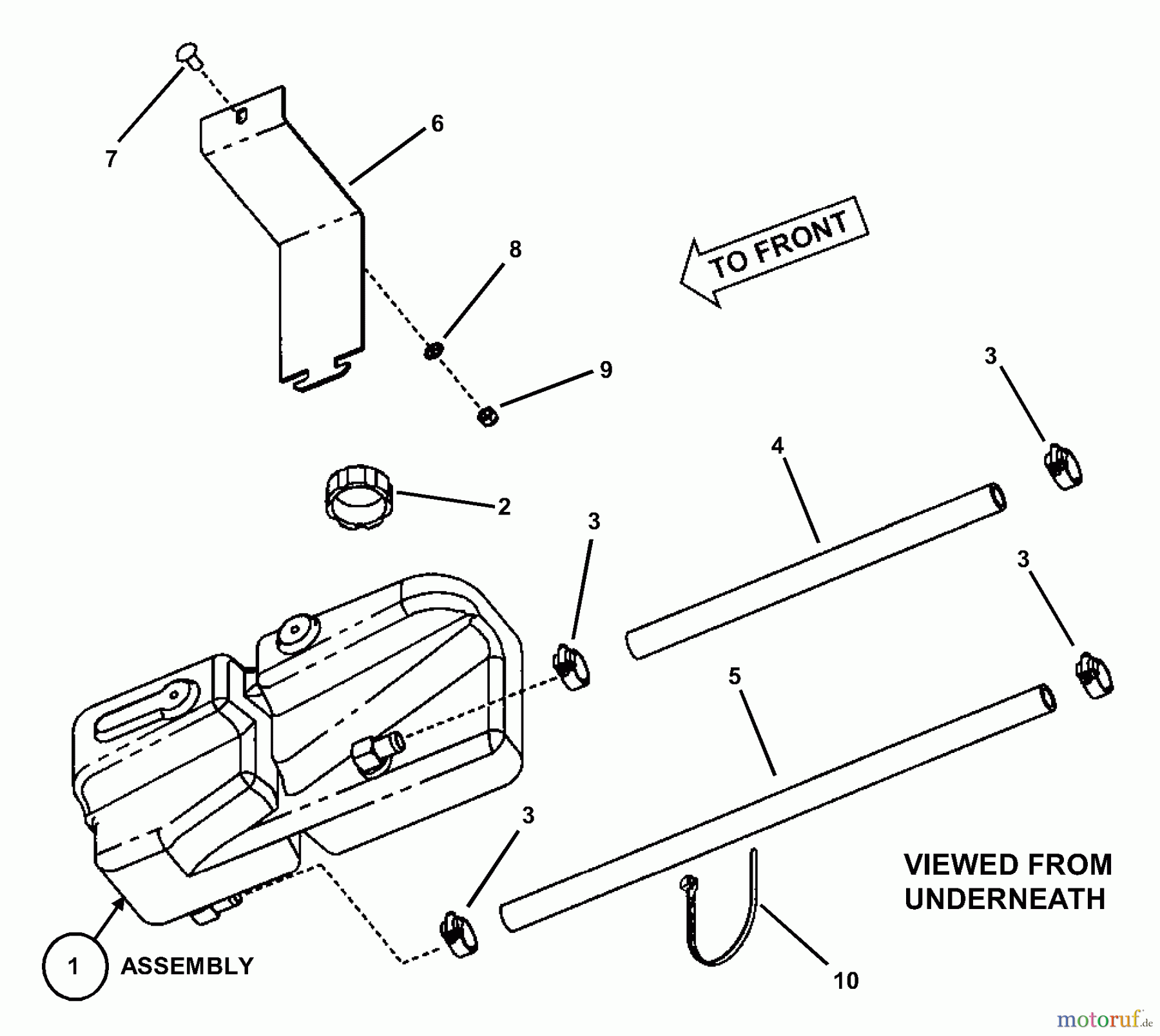

Hydro Reservoir Assembly (Left Hand) MZM2200KH (84412) - Snapper 22 HP Zero-Turn Mower, Kohler, Mid Mount, Z-Rider Series 0

Pos		Article Number	Description
1		BS7054103YP	(C) RESERVOIR, HYDRO
2		BS7035512
3		BS7016130YP	CLAMP, 13/16
4		BS7035514YP	(C) HOSE, RUBBER, FRO
5		BS7044788YP	(C) HOSE, RUBBER, PUS
6		BS7044790YP	(C) BRKT, TANK, LH
7		BS703185	RHSSNB
8		BS703297	RETAINER, GR5, 5/16
9		BS703902	MUTTER, 5/16-18
10		BS7012080SM	CABLE TIE, 7.0
