Snapper NZM21521KWV (84949) - 52" Zero-Turn Mower, 21 HP, Kawasaki, Mid Mount, Z-Rider Commercial Lawn & Turf Series 1 52" CUTTING DECK ASSEMBLY PT.2 Spareparts
Start
Snapper
Nullwendekreismäher, Zero-Turn
NZM21521KWV (84949) - Snapper 52" Zero-Turn Mower, 21 HP, Kawasaki, Mi

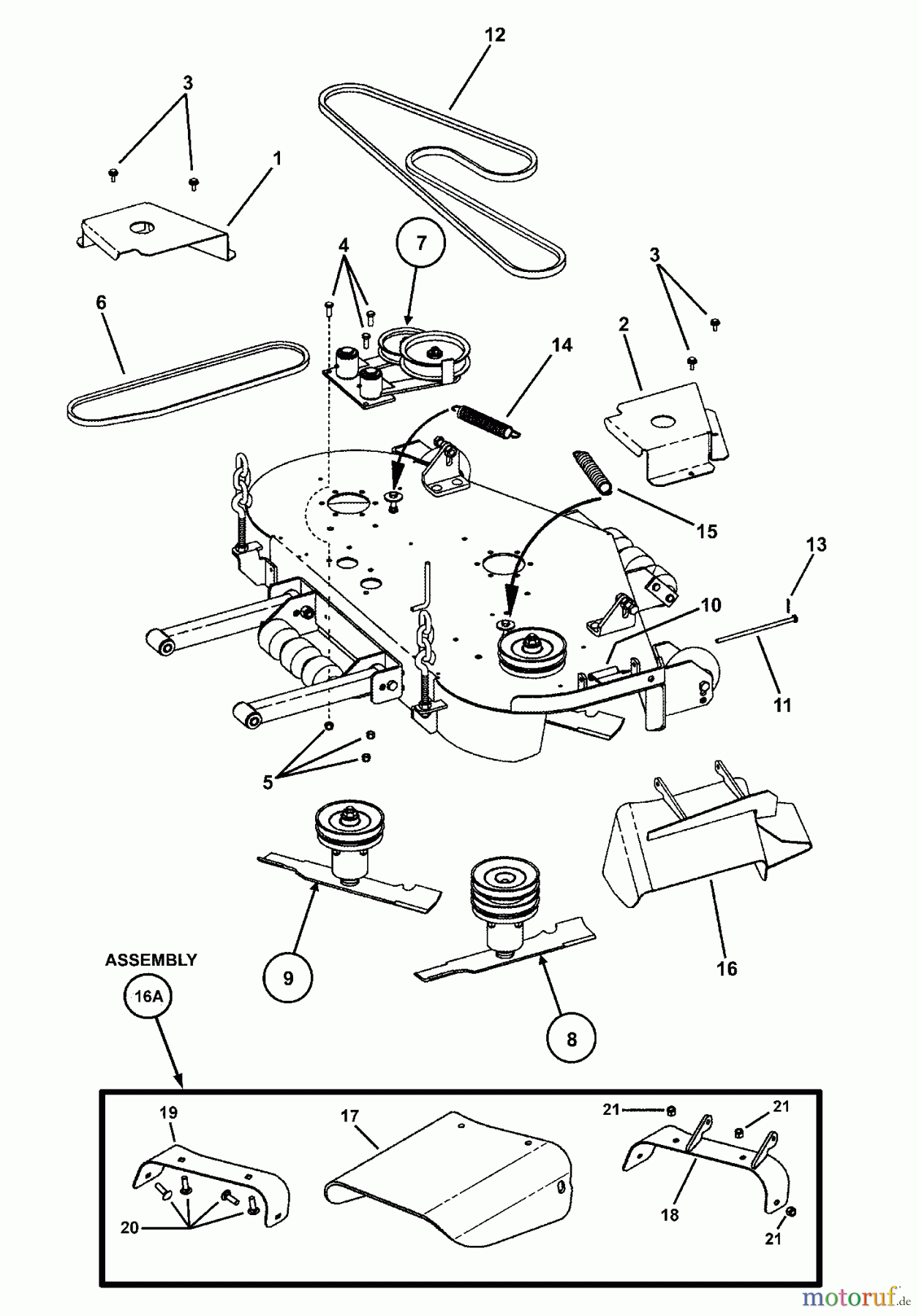

52" CUTTING DECK ASSEMBLY PT.2
52" CUTTING DECK ASSEMBLY PT.2 NZM21521KWV (84949) - Snapper 52" Zero-Turn Mower, 21 HP, Kawasaki, Mid Mount, Z-Rider Commercial Lawn & Turf Series 1
Pos
Article Number
Description
1
BS7074571YP
(C) COVER, BELT, LH
2
BS7074552YP
(C) COVER, BELT, RH
3
BS703949
SCHRAUBE, 5/16-18.625
4
BS7091304SM
SECHSK.SCHRAUBE, 3/8C X1 GR5 Y
5
BS703117
MUTTER
6
BS7075083YP
BELT, CUTTER DECK
7
BS
Eingangswelle UE 600
8
BS
Eingangswelle UE 600
9
BS
Eingangswelle UE 600
10
BS7027950YP
SPRING, CHUTE
11
BS7029277YP
PIN, HINGE, CHUTE
12
BS7029266YP
V-BELT, SECON 52
13
BS7091313YP
SPLINT
14
BS7029278YP
(C) SPRING, IDLER
15
BS7072915YP
(C) SPRING, EXT, 10"
16
BS7044806YP
WELD, DISCHARGE CHUTE
16A
BS
Eingangswelle UE 600
17
BS7100623YP
CHUTE, 52
18
BS7400008YP
WELD, DISCHARGE CHUTE
19
BS7300036YP
DEFLECTOR, BOTTOM, 52
20
BS703130
BOLZEN
21
BS5025096SM
MUTTER, 3/8-16 HEX NYLON
