Snapper NZM21523KWV (7800021) - 52" Zero-Turn Mower, 21 HP, Kawasaki, Mid Mount, Z-Rider Commercial Lawn & Turf Series 3 52" CUTTING DECK ASSEMBLY (Final Assy) Spareparts

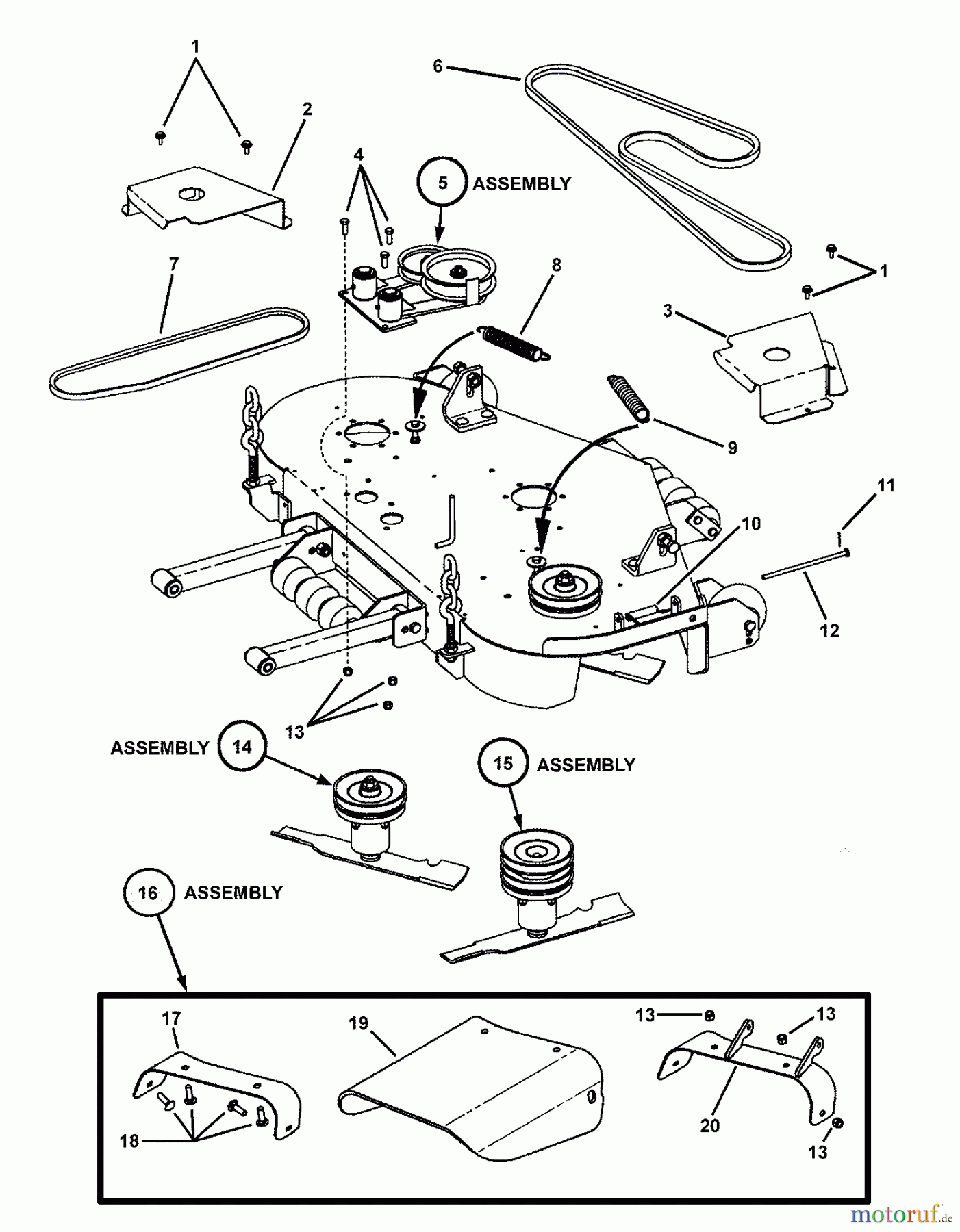

52" CUTTING DECK ASSEMBLY (Final Assy) NZM21523KWV (7800021) - Snapper 52" Zero-Turn Mower, 21 HP, Kawasaki, Mid Mount, Z-Rider Commercial Lawn & Turf Series 3

Snapper Nullwendekreismäher, Zero-Turn NZM21523KWV (7800021) - Snapper 52
PosArticle NumberDescription
1 BS703949SCHRAUBE, 5/16-18.625
2 BS7074571YP(C) COVER, BELT, LH
3 BS7074552YP(C) COVER, BELT, RH
4 BS7091304SMSECHSK.SCHRAUBE, 3/8C X1 GR5 Y
5 BSEingangswelle UE 600
6 BS7029266YPV-BELT, SECON 52
7 BS7075083YPBELT, CUTTER DECK
8 BS7029278YP(C) SPRING, IDLER
9 BS7072915YP(C) SPRING, EXT, 10"
10 BS7027950YPSPRING, CHUTE
11 BS7091313YPSPLINT
12 BS7029277YPPIN, HINGE, CHUTE
13 BS5025096SMMUTTER, 3/8-16 HEX NYLON
14 BSEingangswelle UE 600
15 BS7054011YPSPINDLE ASMY
16 BSEingangswelle UE 600
17 BS7300036YPDEFLECTOR, BOTTOM, 52
18 BS703130BOLZEN
19 BS7100623YPCHUTE, 52
20 BS7400008YPWELD, DISCHARGE CHUTE
