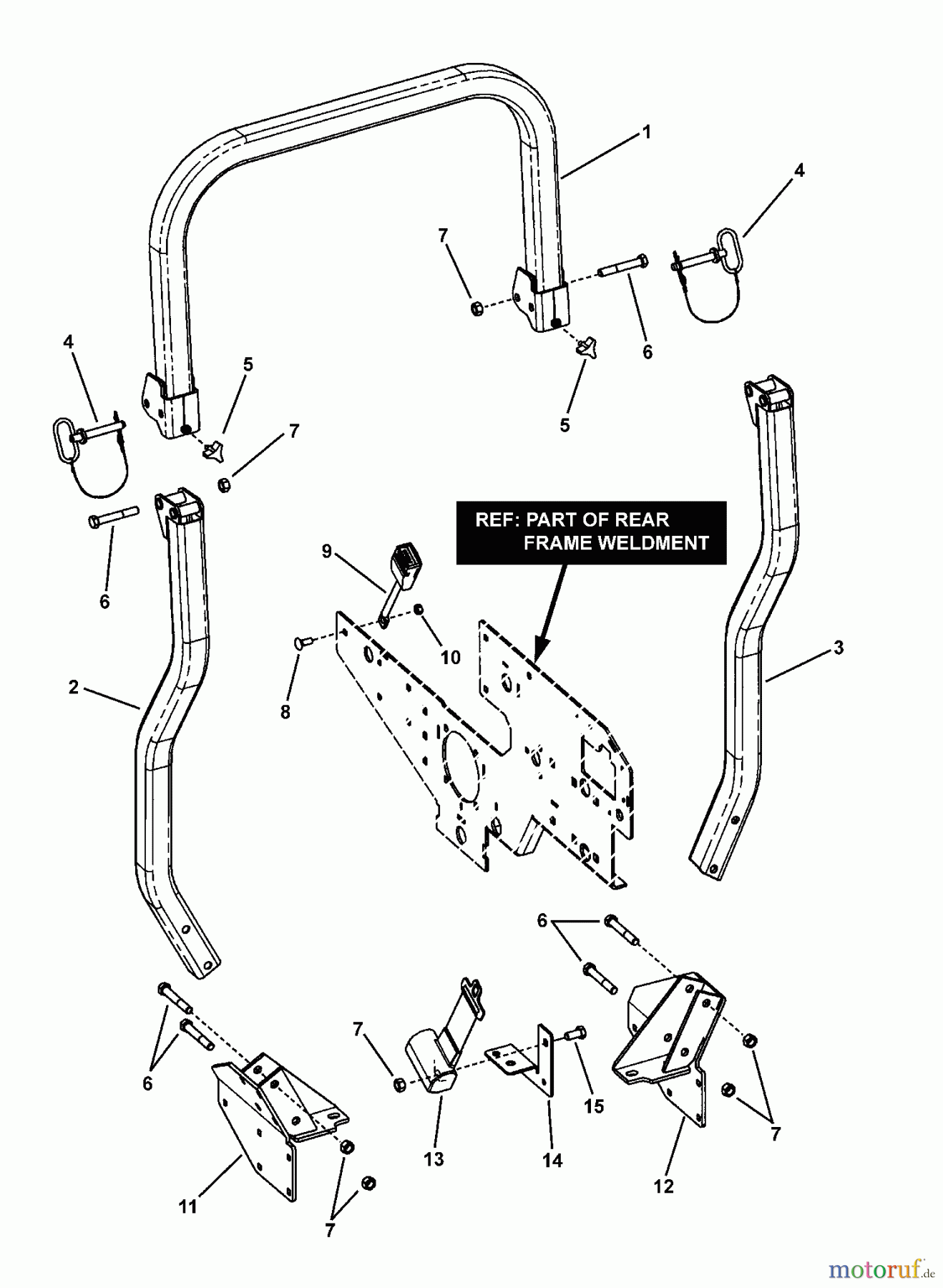

ROLL BAR PROTECTIVE STRUCTURE NZM21523KWV (7800021) - Snapper 52" Zero-Turn Mower, 21 HP, Kawasaki, Mid Mount, Z-Rider Commercial Lawn & Turf Series 3

Pos		Article Number	Description
1		BS7100091YP	TOP LOOP, FOLDING
2		BS7100089YP	POST WELDMENT, RH
3		BS7100090YP	POST WELDMENT, LH
4		BS7100095YP	PIN, HINGE, ROPS
5		BS7100099YP	KNOB, STAR
6		BS7092123YP	HHCS, 1/2C X 3-1/4 YZ
7		BS7090975YP	HCLN, 1/2C GR5 ZP
8		BS703814	BOLT, RD HD, 3/8-16X1
9		BS7100228YP	SEAT BELT, W/ METAL S
10		BS703347	MUTTER, 3/8-16
11		BS7400080YP	WELD, SOCKET, ROPS, R
12		BS7400081YP	WELD, SOCKET, ROPS, L
13		BS7100227YP	SEAT BELT, RETRACTOR
14		BS7300139YP	BRKT, SEAT BELT, LH
15		BS7090646
