Snapper NZMJ23523KH (7800024) - 52" Zero-Turn Mower, 23 HP, Kohler, Mid Mount, Z-Rider Commercial Lawn & Turf Series 3 PARKING BRAKE ASSEMBLY Spareparts

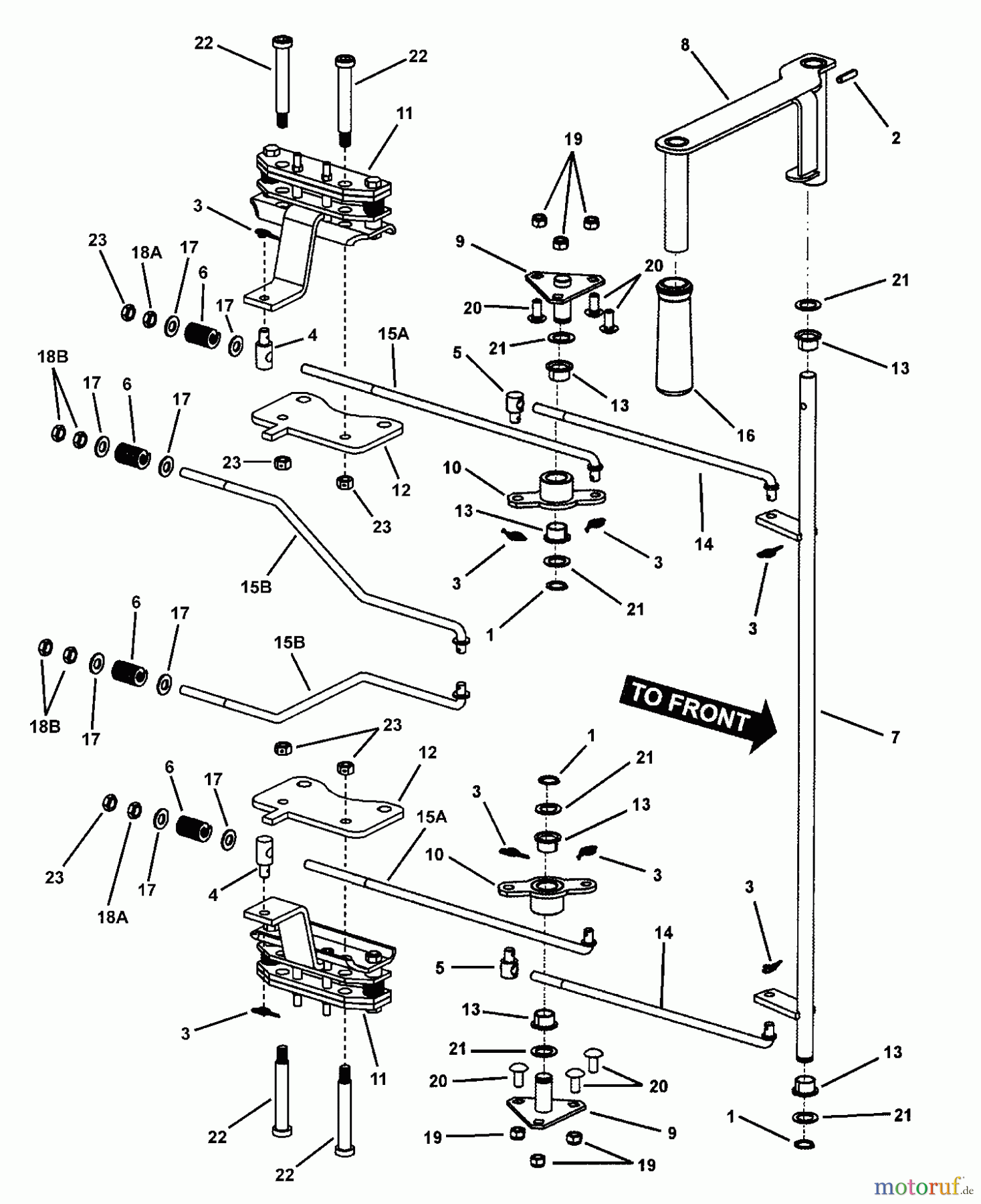

PARKING BRAKE ASSEMBLY NZMJ23523KH (7800024) - Snapper 52" Zero-Turn Mower, 23 HP, Kohler, Mid Mount, Z-Rider Commercial Lawn & Turf Series 3

Snapper Nullwendekreismäher, Zero-Turn NZMJ23523KH (7800024) - Snapper 52
PosArticle NumberDescription
1 BS7010739SMRETAINING RING, EXT,
2 BS7092091SM
3 BS7091593SMSICHERUNGSSPLINT SELBSTS.
4 BS7011231SMSWIVEL, 3/8 W/ THRU H
5 BS7046451YPSWIVEL, ADJUSTMENT
6 BS7046782YPFEDER, KABEL
7 BS7054043YPWELD, BRAKE ROD, YELL
8 BS7059085YP(C) WELD, PARK BRAKE
9 BS7059086YP(C) WELD, BRAKE LINKA
10 BS7059087YP(C) WELD, BRAKE LINK
11 BS7071820YPBRAKE ASSY, AUSCO
12 BS7041140YPPLATE, MOUNTING, BRAK
13 BS7072934SM
14 BS7073989YP(C) LINKAGE, FRONT, P
15A BS7073990YP(C) LINKAGE, PARK BRA
15B BS7072094YPROD, BRAKE REAR
16 BS7074196YPGRIP, PARKING BRAKE
17 BS703878WASHER, FLAT
18A BS7090482SMHJN, 3/8F GR5 ZP
18B BS7090665SMHJN, 3/8C ZP
19 Snapper MUTTER, 5/16-18BS703902MUTTER, 5/16-18
20 BS703185RHSSNB
21 BS7091628SMFW, .64X.99X.05 YZ
22 BS7041148YPSHOULDER BOLT, HEX SO
23 BS703901MUTTER, 3/8-24
