Snapper Z1202B (80183) - 12 HP Zero-Turn Mower, Hydro Drive, ZTR Series 2 Double Idler Assembly (Part 1) Spareparts

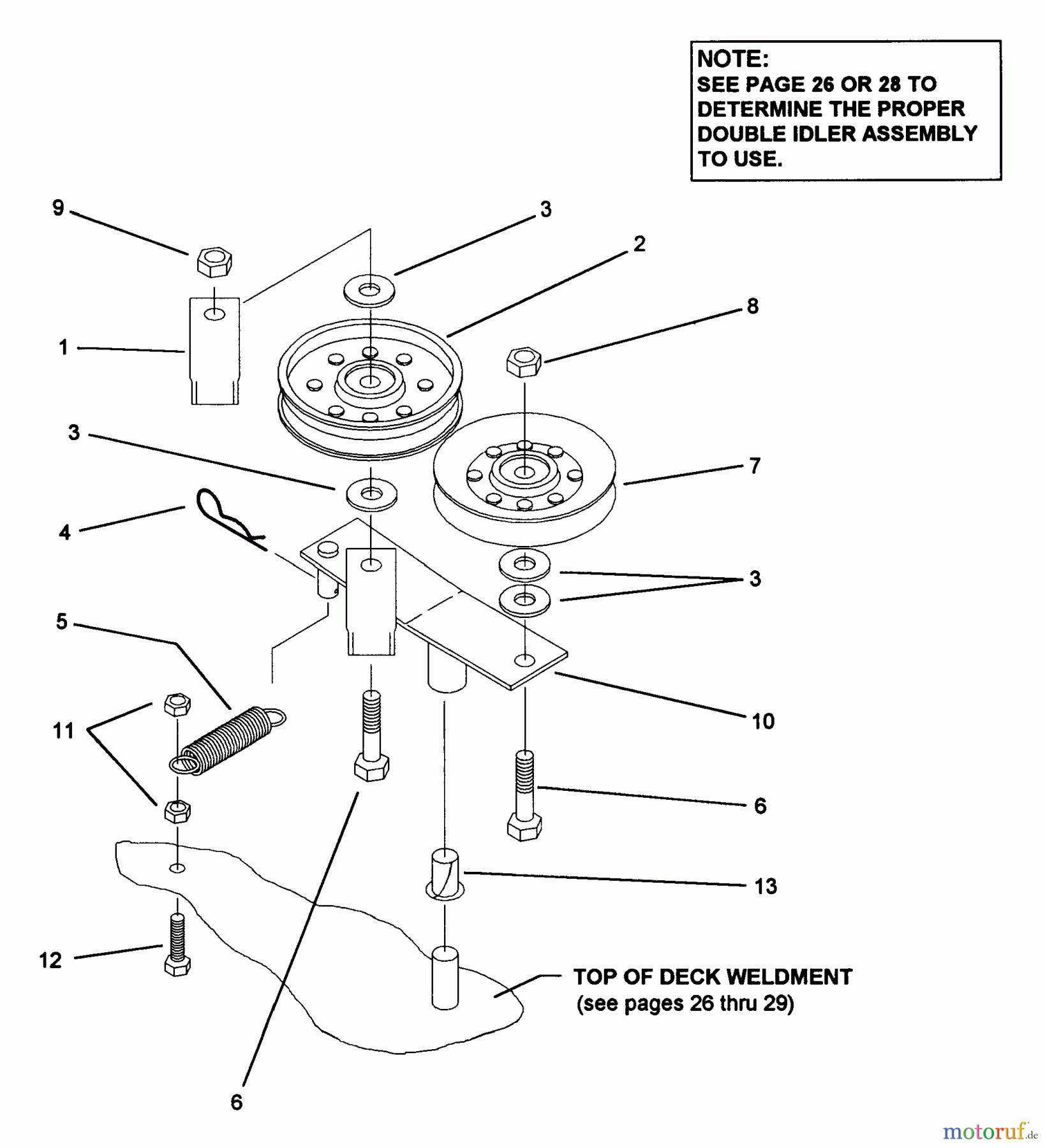

Double Idler Assembly (Part 1) Z1202B (80183) - Snapper 12 HP Zero-Turn Mower, Hydro Drive, ZTR Series 2

Snapper Nullwendekreismäher, Zero-Turn Z1202B (80183) - Snapper 12 HP Zero-Turn Mower, Hydro Drive, ZTR Series 2 Double Idler Assembly (Part 1)
PosArticle NumberDescription
BS7079872
1 BS7079032
2 BS7079167YPPULLEY, FLAT IDLER
3 BS7091587SMUNTERLAGSCHEIBE, .531X1.062X.1
4 BS7079289
5 BS7079217YPSPRING, EXT
6 BS703817CAPSCREW,1/2-13X2,GR5
7 BS7079166YPPULLEY, V-IDLER
8 BS7079277
9 BS7079262YP(C) NUT, HEX, STOVER,
10 BS7079873
11 BS703458MUTTER, 3/8-24
12 BS7090824YPSCREW, 3/8-24 X 1-1/4
13 BS7079175
BS7062239
