Snapper ZF2200K (82371) - 22 HP Zero-Turn Mower, Out Front, Z-Rider Series 0 Upper Drive Shaft Assembly Spareparts
Start
Snapper
Nullwendekreismäher, Zero-Turn
ZF2200K (82371) - Snapper 22 HP Zero-Turn Mower, Out Front, Z-Rider Se

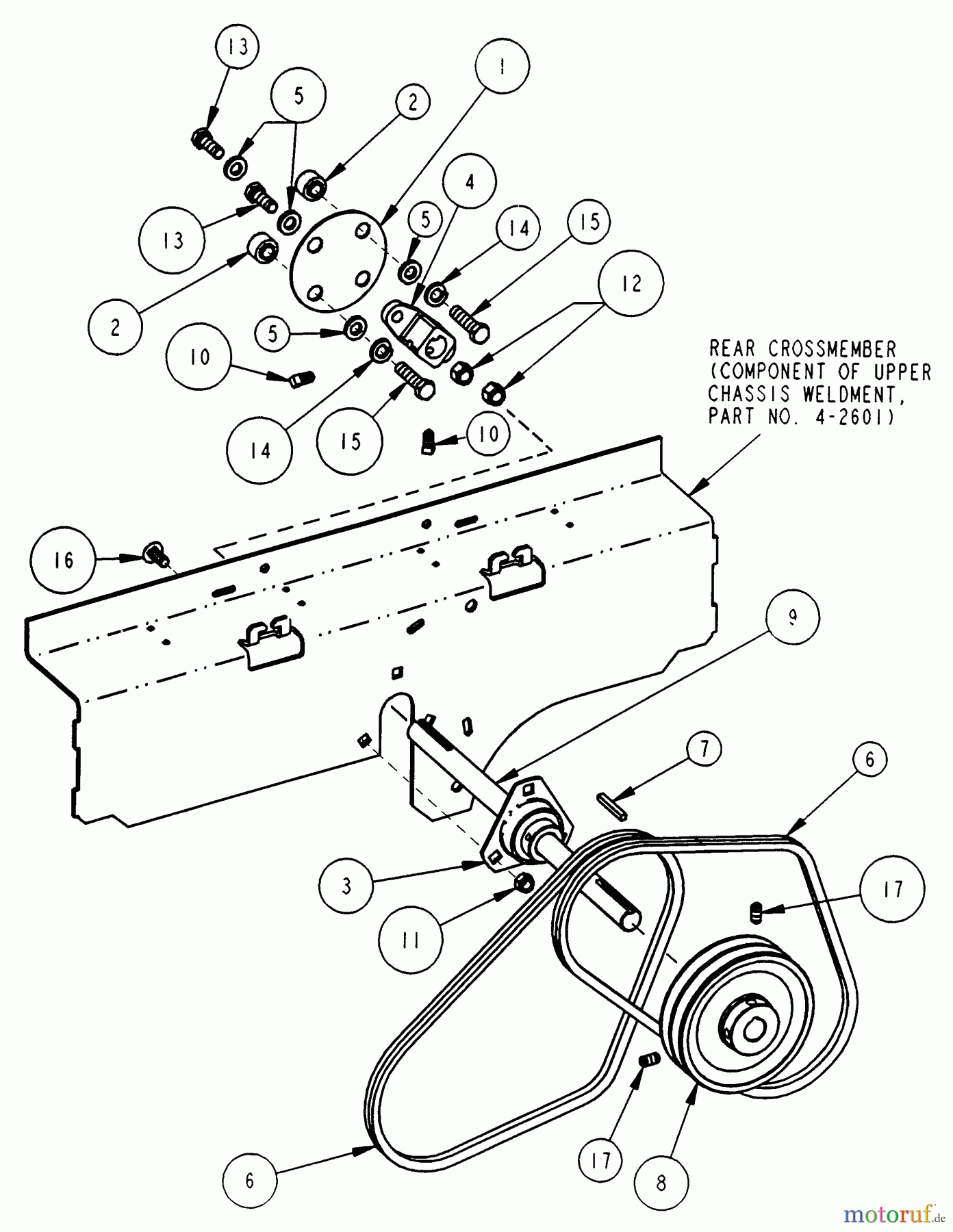

Upper Drive Shaft Assembly
Upper Drive Shaft Assembly ZF2200K (82371) - Snapper 22 HP Zero-Turn Mower, Out Front, Z-Rider Series 0
Pos
Article Number
Description
1
BS7014338YP
SCHEIBE, FLEXIBEL
2
BS7014803YP
DISTANZSCHEIBE, LT16, PM
3
BS7018547YP
BEARING ASMY
3
BS7014268
4
BS7018626YP
HUB, LT, PM
5
BS7032070YP
FW, .406X.75X.132 BZ
6
BS7035544YP
(C) BELT, TRACTION DR
7
BS7091803SM
(C) KEY, SQUARE, 3/16
8
BS7035564
9
BS7035811YP
(C) DRIVESHAFT, UPPER
10
BS7090848SM
SHSS, 5/16C X1/2
11
BS703902
MUTTER, 5/16-18
12
BS703117
MUTTER
13
BS7091304SM
SECHSK.SCHRAUBE, 3/8C X1 GR5 Y
13
BS703871
KOPFSCHRAUBE,3/8-16X1.25
14
BS703454
LOCKWASHER, SPLIT 3/8
15
BS7091497SM
SECHSK.SCHR.3/8CX1-1/2GR
16
BS703185
RHSSNB
17
BS1930540SM
SCHRAUBENSATZ SQ HD CUP P
