Snapper ZF2501KH (84574) - 25 HP Zero-Turn Mower, Out Front, Z-Rider Series 1 Electrical Components (Except Wiring) Spareparts

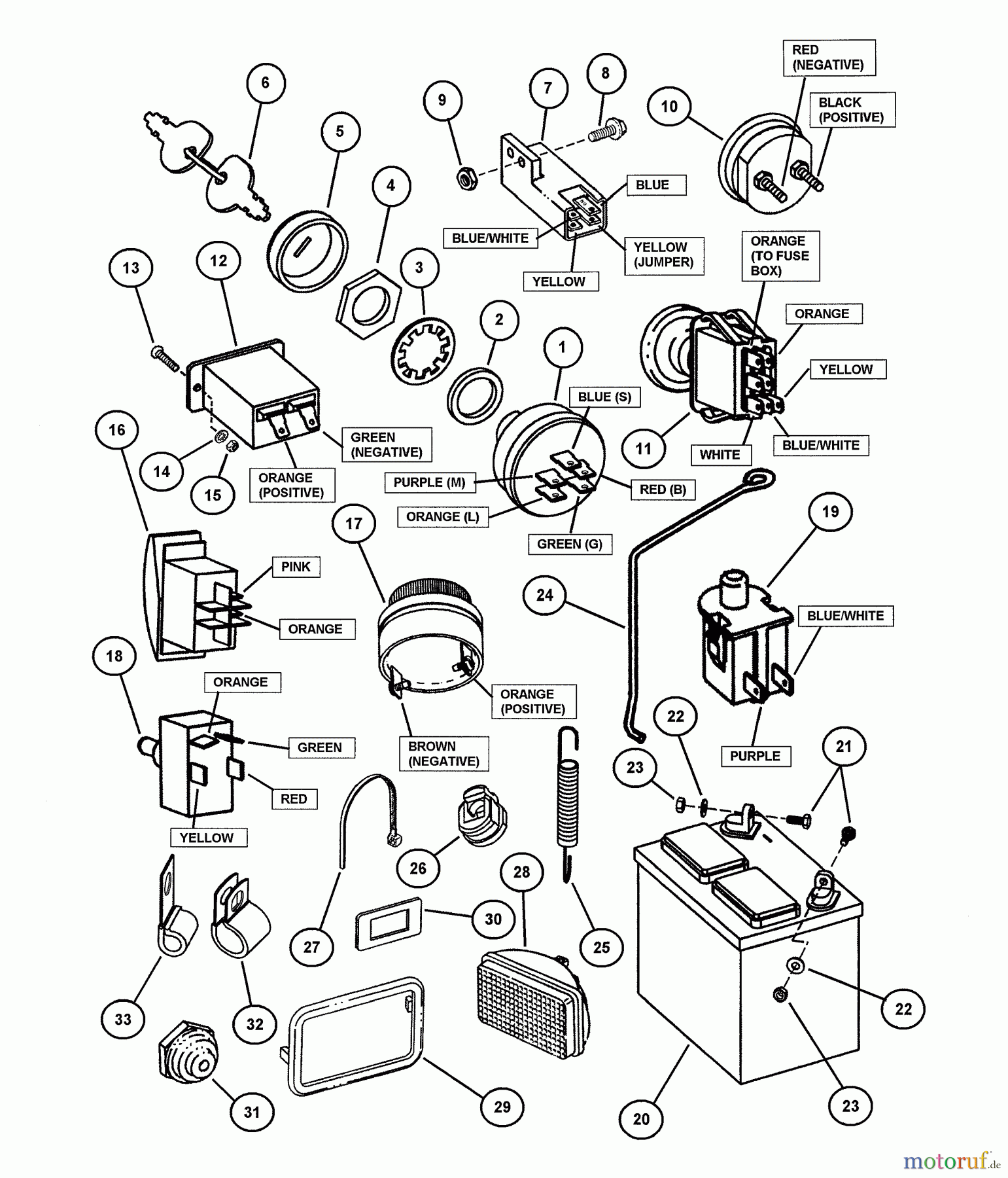

Electrical Components (Except Wiring) ZF2501KH (84574) - Snapper 25 HP Zero-Turn Mower, Out Front, Z-Rider Series 1

Snapper Nullwendekreismäher, Zero-Turn ZF2501KH (84574) - Snapper 25 HP Zero-Turn Mower, Out Front, Z-Rider Series 1 Electrical Components (Except Wiring)
PosArticle NumberDescription
1 BS7026343SM
2 BS7016132SMSPACER, .875 OD X.654
3 BS7091546SMSCHEIBE 5/8 YZ
4 BS7012685YPMUTTER 5/8-32 ZP
5 BS7023506SMBEZEL
6 BS7011138YPIGNITION KEY PAIR
7 BS7023355YPSWITCH, DPDT
8 BS7091240YPCPSCW HWMS, #10 X 5/8
9 BS7090376YPMUTTER, 10-32 SELBSTS.
10 BS7019547YP(C) AMMETER
11 BS7035658YP(C) SWITCH, PTO
12 BS7060788
13 BS7090927YPRHMS, #6C X1/2 GR2 BZ
14 BS7090926YPITLW, #6
15 BS7090925YPHN, #6C ZP
16 BS7035659YPSWITCH, LIGHTS
17 BS7079208YP(C) BUZZER, PULSING
18 BS7035700YPSWITCH, SELF CENTER
19 BS7023354YPSWITCH, SEAT
20 BS7035610
21 BS001X38MABOLT,HEX .25-20X0.62
22 BS7091294
23 BS703954
24 BS7022366YPBRKT, BATTERY
25 BS7022696YPSPRING, BATTERY
26 BS7035779YP(C) STRAIN RELIEF, WI
27 BS7012080SMCABLE TIE, 7.0
28 BS7018829YPHEADLIGHT
29 BS7035550YPBEZEL, HEADLIGHT
30 BS7035661YPSPACER, PTO SWITCH
31 BS7035702YP(C) SEAL, SWITCH
32 BS7015861SM
33 BS7035638YP(C) CLIP, OPEN J 3/8
