Snapper ZF2501KH (84574) - 25 HP Zero-Turn Mower, Out Front, Z-Rider Series 1 Upper Drive Shaft Assembly Spareparts

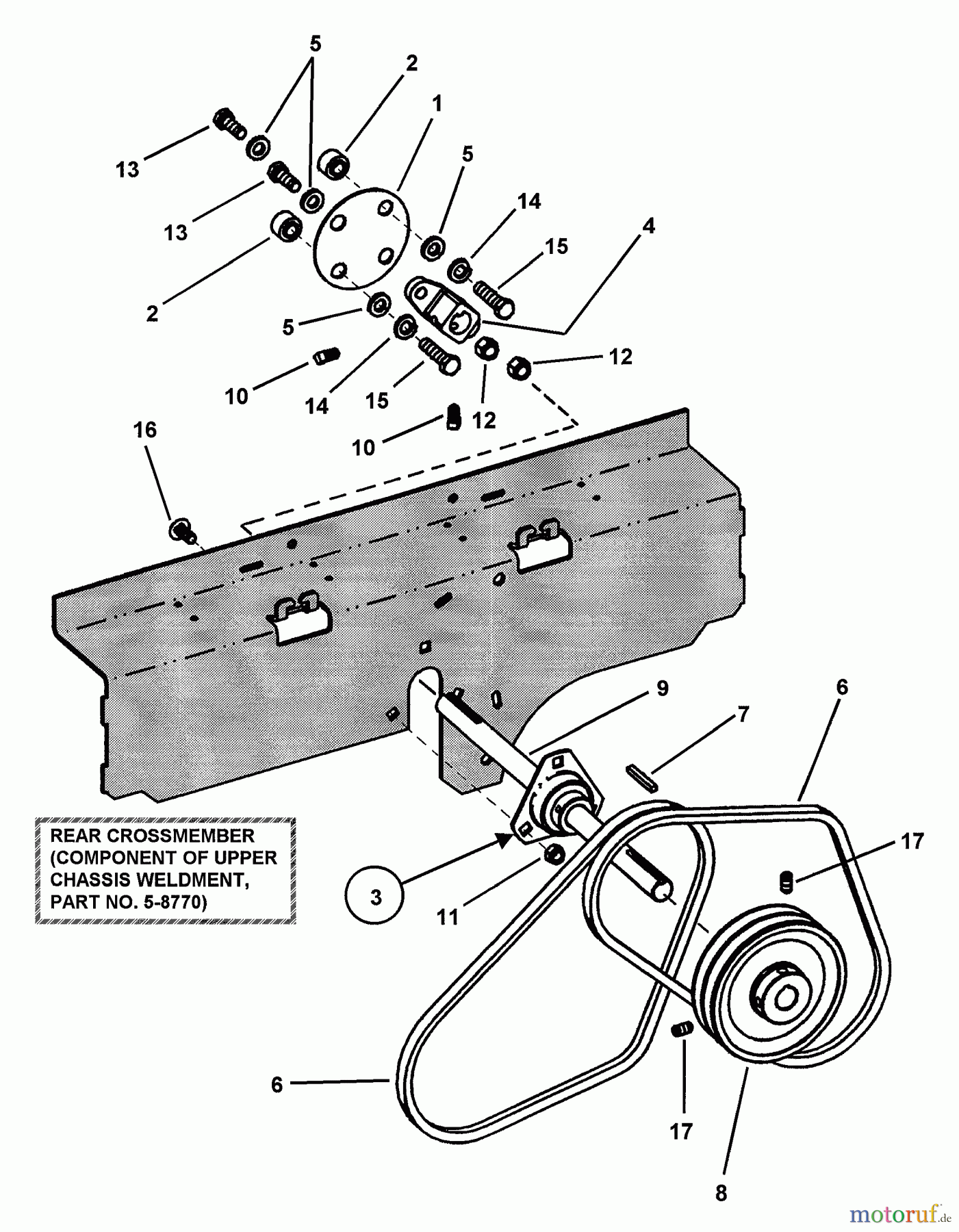

Upper Drive Shaft Assembly ZF2501KH (84574) - Snapper 25 HP Zero-Turn Mower, Out Front, Z-Rider Series 1

Snapper Nullwendekreismäher, Zero-Turn ZF2501KH (84574) - Snapper 25 HP Zero-Turn Mower, Out Front, Z-Rider Series 1 Upper Drive Shaft Assembly
PosArticle NumberDescription
1 BS7014338YPSCHEIBE, FLEXIBEL
2 BS7014803YPDISTANZSCHEIBE, LT16, PM
3 BS7054655YPBEARING / LOCK ASMY
4 BS7018626YPHUB, LT, PM
5 BS7032070YPFW, .406X.75X.132 BZ
6 BS7035544YP(C) BELT, TRACTION DR
7 BS7091803SM(C) KEY, SQUARE, 3/16
8 BS7035564
9 BS7035811YP(C) DRIVESHAFT, UPPER
10 BS7090848SMSHSS, 5/16C X1/2
11 Snapper MUTTER, 5/16-18BS703902MUTTER, 5/16-18
12 BS703117MUTTER
13 BS703871KOPFSCHRAUBE,3/8-16X1.25
14 BS703454LOCKWASHER, SPLIT 3/8
15 BS7091497SMSECHSK.SCHR.3/8CX1-1/2GR
16 BS7091714YPBOLZEN, 5/16-18X1
17 BS1930540SMSCHRAUBENSATZ SQ HD CUP P
BS7058770YP(C) WELD, UPPER CHASS
BS7014625YPSCHUTZHULLE
BS7054655
