Snapper 105308E (1694995) - 30" Snowthrower, 10.5 HP, Two-Stage Large Frame, Series 8 Auger Drive Group Spareparts

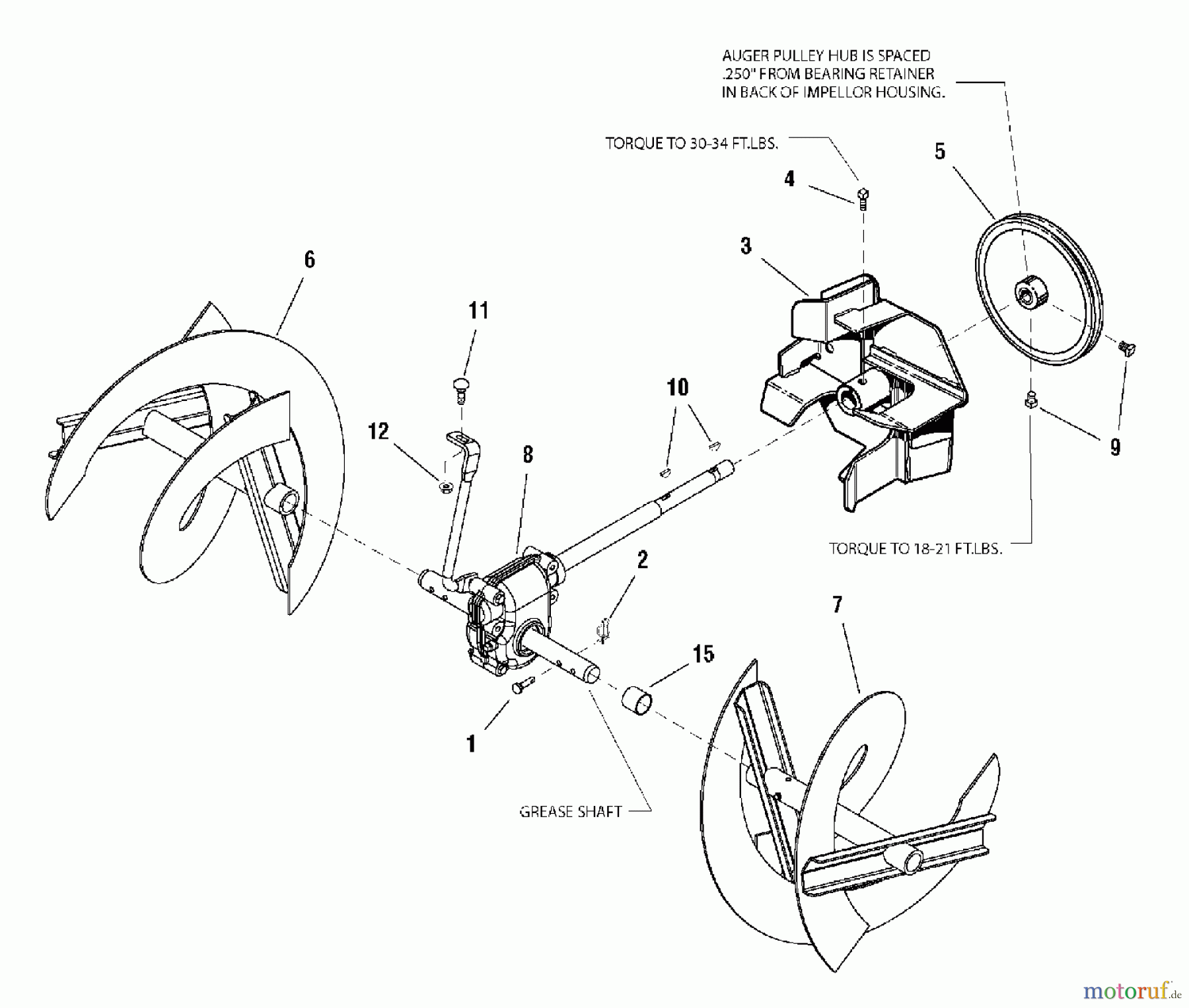

Auger Drive Group 105308E (1694995) - Snapper 30" Snowthrower, 10.5 HP, Two-Stage Large Frame, Series 8

Snapper Schneefräsen 105308E (1694995) - Snapper 30
PosArticle NumberDescription
1 BS1668344SMSHEAR PIN
2 BS7023590SM
3 BS1612187BMYPIMPELLER
4 BS1960474SMSET SCREW
5 BS1732185SMAUGER PULLEY ASSY
6 BS1734674BMYPWELD, AUGER ASSY, 24"
6 BS1718785ASMAUGER ASSY - RH
6 BS1734678ASMAUGER ASSY - RH 32"
7 BS1718782ASMAUGER ASSY - LH
7 BS1718784ASMAUGER ASSY - LH
7 BS1734677ASMAUGER ASSY - LH 32"
8 BS1732303SMGEAR CASE
9 BS1928721SMSET SCREW
10 BS2818312SMKEY, WOODRUFF
11 BS703185RHSSNB
12 Snapper MUTTER, 5/16-18, GR5BS703409MUTTER, 5/16-18, GR5
15 BS1733406SMTUBE
