Snapper 105308E (1694995) - 30" Snowthrower, 10.5 HP, Two-Stage Large Frame, Series 8 Traction Drive Group - EZ Turn - 28" Model Spareparts

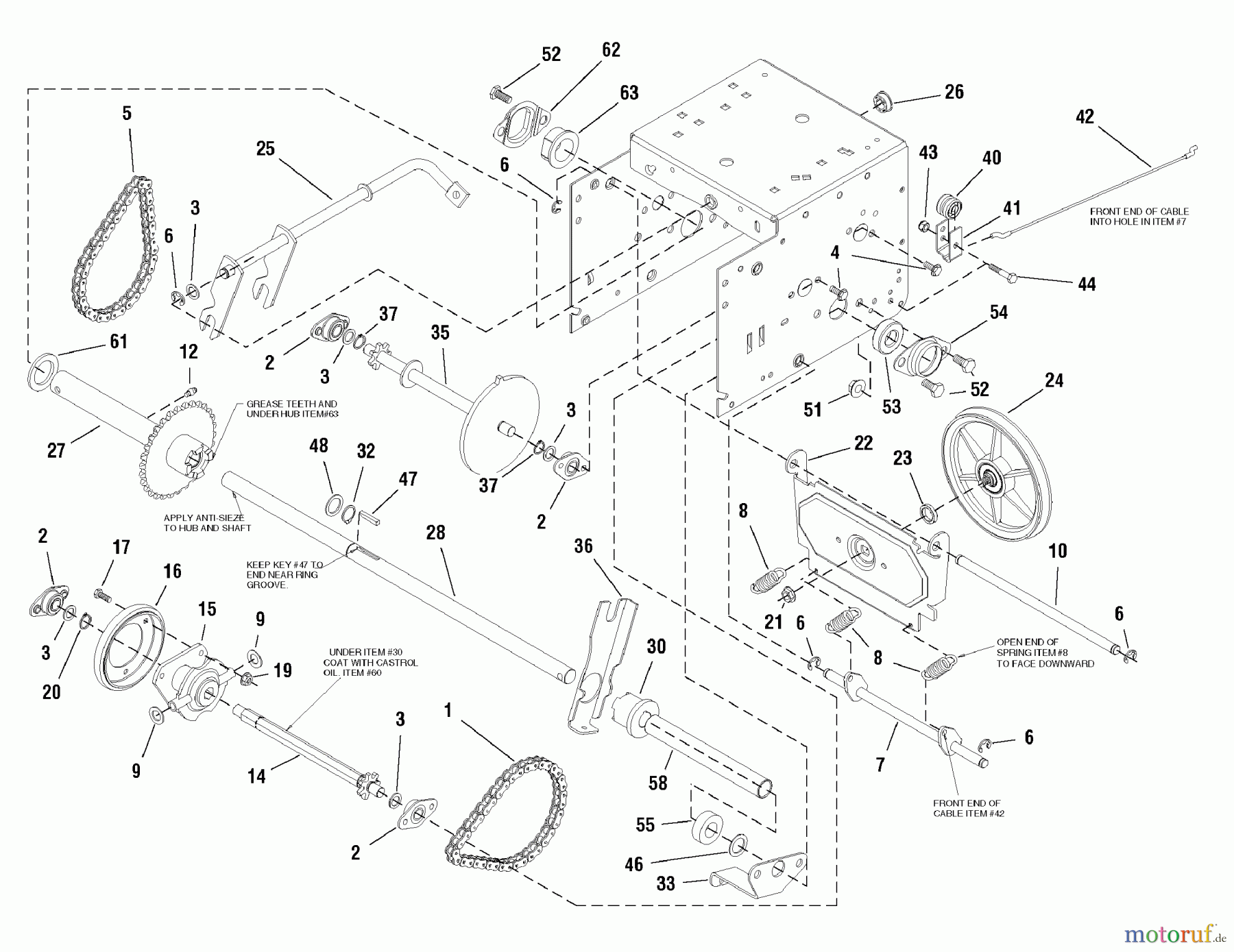

Traction Drive Group - EZ Turn - 28" Model 105308E (1694995) - Snapper 30" Snowthrower, 10.5 HP, Two-Stage Large Frame, Series 8

Snapper Schneefräsen 105308E (1694995) - Snapper 30
PosArticle NumberDescription
1 BS579851MAROLLKETTE 420X19.
2 BS334163MABEARING & RETAINER, A
3 BS579858MAUNTERLEGSCHEIBE.502-0.75-.06 F
4 BS1924856SMSCREW - HEX WASHER HD
5 BS579868MACHAIN,ROLLER 420X18.0
6 BS11X30MARETAINER, RING 7/16 Y
7 BS1502105YZMASPRING LINK ASY STD
8 Snapper FEDERBS1736469YPFEDER
9 BS1960027SMABZIEHER-SCHEIBE
10 BS703328VERBINDUNGSFEDER
12 BS2812808SMFITTING-LUBE .250-28T
14 BS1501100MAHEX SHAFT
15 BS1739282YPLAGERZAPFEN KOMPL.
16 Snapper REIBRAD 4.3 RUBS1501435MAREIBRAD 4.3 RU
17 BS001X38MABOLT,HEX .25-20X0.62
19 BS1928372SMNUT - HEX KEPS
20 BS1733326SMRING-RET EXT # 63 0.6
21 BS15X114MABUCHSE,FLANSCHVERSCHLUSS
22 BS1501057YZMAPLATE,SWINGING
23 BS1501158MADISTANZSTUCK,FRIKTION RIEMENSC
24 BS1501115MAFRICTION PULLEY ASY
25 BS1501110YZMAGANGWAHL ASY
26 BS579944MALAGER FLANSCH .500ID X .88
27 BS1733085SMSPROCKET & HUB ASMY-W
28 BS1732381SMAXLE-0.748DIA 22.75 L
30 BS1732382SMGEAR-CLUTCHING 0.754I
32 BS2827732SMRING-RET EXT # 74 0.7
33 BS1751336AYPKABELHALTER
35 BS1732389SMSPROCKET & SHAFT ASMY
36 BS1732383ASMARM-CLUTCH 12GA HT TR
37 BS2860386SMRING-RET EXT # 50 0.5
40 BS579860MASPOOL CABLE,AUGER CTR
41 BS1501059YZMAKONSOLE,KABEL SPULE
42 BS1501122MAKABEL,FR ANTRIEB UNTEN
43 Snapper MUTTER, 1/4-20, NYLOCKBS703232MUTTER, 1/4-20, NYLOCK
44 BS51374YPKOPFSCHRAUBE
46 BS712120MAWASHER, FLAT .765X1.1
47 BS1667622SMKEY-HI PRO .187X1.140
48 BS703151U-SCHEIBE
51 BS1928352SMNUT - HEX FLANGE
52 BS703237CAPSCREW, 3/8-16X.75
53 BS53263MABRNG,BALL.750IDX1.630
54 BS50648MALAGERHALTERUNG 420T
55 BS1501620MACOLLAR,LOCKING
58 BS1720298SMSPRING-COMP 0.780IDX
61 BS2860169SMWASHER-1.188(1.22IDX1
62 BS1733101SMRETAINER-BUSHING 1.63
63 BS1720305SMBUSHING-1.135IDX1.62
