Snapper 32001SSST - 20" Snowthrower, 3 HP, Single Stage, Series 1 Control Panel, Lower Handle Spareparts

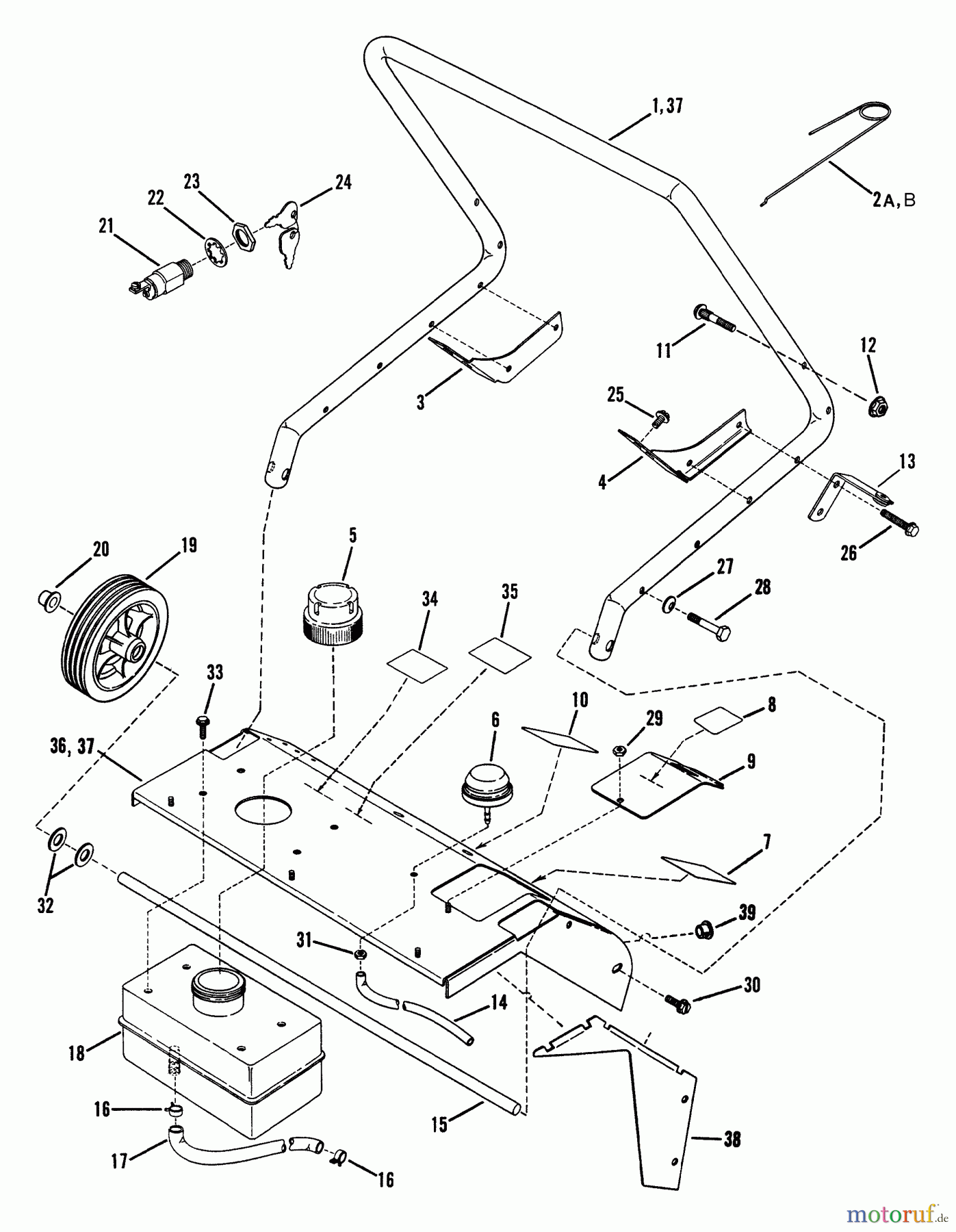

Control Panel, Lower Handle 32001SSST - Snapper 20" Snowthrower, 3 HP, Single Stage, Series 1

Snapper Schneefräsen 32001SSST - Snapper 20
PosArticle NumberDescription
1 BS7036165YP(S) HANDLE, LOWER
2A BS7014647YP(S) CONTROL, CHOKE, B
2B BS7046473YPCONTROL, CHOKE
3 BS7038109YP(S) BRACE, HANDLE, RH
4 BS7038110YP(S) BRACE, HANDLE, LH
5 BS7014636YP(S) CAP, TANK
6 BS7014638
6 BS7018656YP(S) PRIMER, B&S
7 BS7014635YP(S) DECAL, CHOKE
8 BS7014640
9 BS7032353
10 BS7014641YP(S) DECAL, IGNITION /
11 BS7090947YPRHSNB, 1/4C X1-3/8
12 BS703233MUTTER, 1/4-20, GR5
13 BS7051560YPBRKT.& BUSHING ASMY
14 BS7014639SM(S) HOSE, PRIMER
15 BS7032366YP(S) ROD, .38 X 18.5
16 BS7029900SMKLEMME 490 X .31
17 BS7032365YP(S) HOSE, FUEL
18 BS7019736YP(S) FUEL TANK, SSST
19 BS7018640
20 BS7014667YPDRUCKMUTTER, 3/8
21 BS7011853YPSTARTER MANUELL
22 BS7091546SMSCHEIBE 5/8 YZ
23 BS7012685YPMUTTER 5/8-32 ZP
24 BS7011138YPIGNITION KEY PAIR
25 BS7090822YPHWST, #10C X1/4 ZP
25 BS704061SCREW,HEX, #10-32X.25
26 BS7090896YPHWST, 1/4C X1-3/8 ZP
27 BS7014645YP(S) WASHER, CURVED, B
28 BS7090825YPHHCS, 1/4C X1-1/4 GR5
29 BS7090623SMHFLN, #10C ZP
29 BS7091079YPHFLN, #10C BZ
30 BS7090856YPHWDS, #10C X1/2 ZP
31 BS703954
32 BS703878WASHER, FLAT
33 BS90855
33 BS7091081SMHWST, 1/4-15X3/4 BZ
34 BS7018652YP(S) DECAL, MIX CHART
34 BS7014764
35 BS7018653YP(S) DECAL, FUEL MIX
36 BS7049963
37 BS7051613
38 BS7032943YP(S) BAFFLE, LH
39 BS7016401
BS7061011YP(S) SNOW INFILTRATION
BS7036165
BS7014648YP(S) CONTROL, CHOKE,
BS7011853
BS15158
