Snapper 8243 - 24" Snowthrower, 8 HP, Two Stage, Large Frame, Series 3 Frame, Traction Drive Spareparts

Frame, Traction Drive 8243 - Snapper 24" Snowthrower, 8 HP, Two Stage, Large Frame, Series 3

Snapper Schneefräsen 8243 - Snapper 24

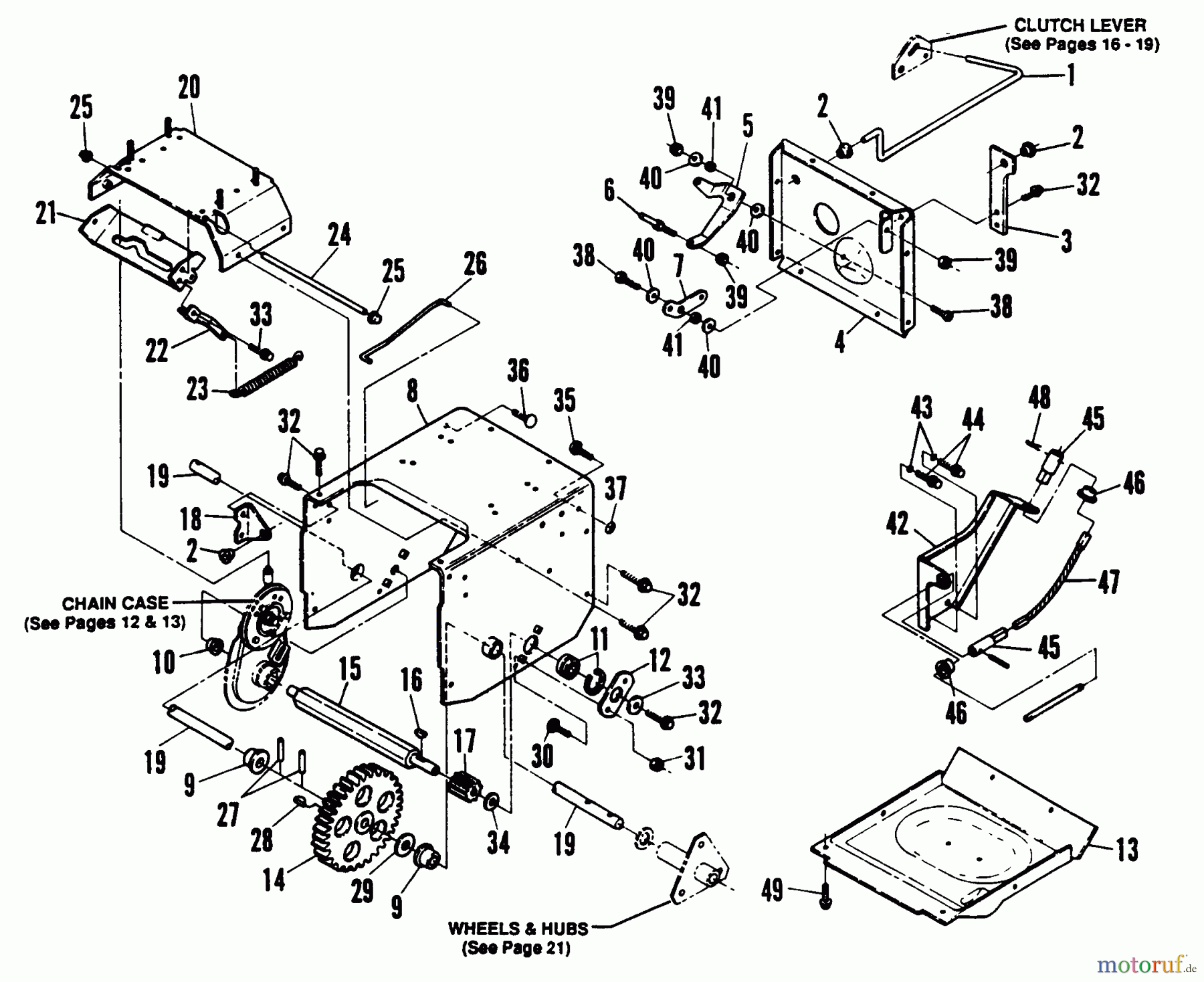

PosArticle NumberDescription
1 BS7019684YP(S) LEVER, ACTIVATING
2 BS7012117SMBUSHING, 3/8 PLASTIC
3 BS7032125YP(S) BRKT, SUPPORT
4 BS7039768YP(S) COVER, BACK
5 BS7037967YP(S) LEVER, SHIFT
6 BS7013872YP(S) STUD, SHIFT
7 BS7032124YP(S) BELLCRANK
8 BS7039970YP(S) FRAME
8 BS7034306YP(S) FRAME, LF 8&10 HP
9 BS7015363SM(S) BEARING, PM
10 BS7013874SM(S) BUCHSE, ST, PM
11 BS7010756YPKUGELLAGER
12 BS7032121
13 BS7039769YP(S) COVER, BOTTOM
14 BS7018460
15 BS7027610YP(S) SHAFT, HEX
16 BS7010614YPFEDERKEIL, #5
17 BS7013884YPZAHNRAD 11 ZAHNE
18 BS7032120YP(S) BRKT, IDLER MOUNT
19 BS7029549YP(S) AXLE
20 BS7057367YPFRM BRACE 5 B&S
20 BS7057275YP(S) FRAME BRACE 8 HP.
BS7057277
BS7057276YP(S) FRAME BRACE ASSY.
21 BS7037965BMYPBRKT, CLUTCH ECOAT
22 BS7032130YP(S) ARM, SPRING
23 BS7012264YPFEDER, FREIL. & BREMSE
24 BS7021843YP(S) SHAFT, CROSS
25 BS7091084YPHWST, 1/4C X3/8 BZ
26 BS7013875YP(S) ROD, PUSH
27 BS7013878YPROLL PIN, 3/16X1-1/4
28 BS7013861YPKEY, WOODRUFF, 3/16X7
29 Snapper FW, .77X1.13X.06BS7010935SMFW, .77X1.13X.06
30 BS7091604YPRHSSNB, 1/4C X1/2 GR5
30 BS7091064YPSCHRAUBE SCHIEBEGR., 1/4C X 1/
31 BS703233MUTTER, 1/4-20, GR5
32 BS7090858YPMUTTER, 5/16-18X1/2 SELBSTS.
33 BS703350U-SCHEIBE, 5/16
33 BS7091076
34 BS7010690YPWASHER, SHIM, .625X.8
35 BS703185RHSSNB
36 BS7090790YPRHSSNB, 5/16C X1-3/8
37 BS703297RETAINER, GR5, 5/16
38 BS7091318
39 BS703164MUTTER
40 BS7016314YPFW, .33X1.25X.09 BZ
20 BS7016314
41 BS703970DISTANZSTUCK
42 BS7033459
43 BS7090187SMSLW, .318X.583X.078 Z
44 BS703949SCHRAUBE, 5/16-18.625
44 BS703448BOLZEN, 3/8-16X.75 G5
45 BS7022095YP(S) CONNECTOR, FLEX S
46 BS7014386YP(S) BUSHING
47 BS7061389YP(S)CHUTE CRANK REPLAC
47 BS7051944
BS7061389
48 BS7091598SMCOTTER PIN, 1/8X3/4 Y
49 BS703054SCHRAUBE, 1/4-20X0.625
?50 BS7091084
?51 BS7014001SM
