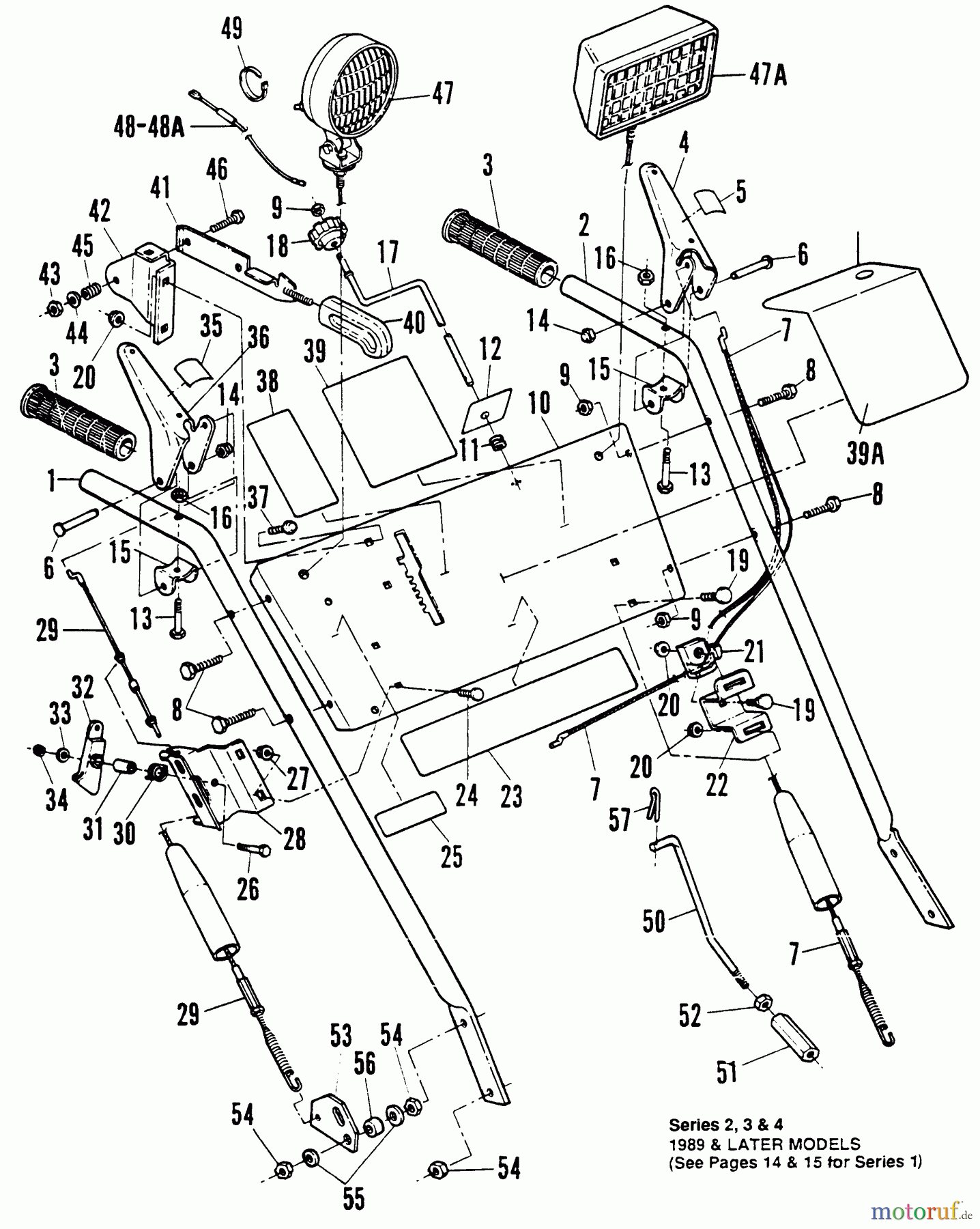

Snapper 8243 - 24" Snowthrower, 8 HP, Two Stage, Large Frame, Series 3 Handle, Controls (Series 2 & Later) Spareparts

Handle, Controls (Series 2 & Later) 8243 - Snapper 24" Snowthrower, 8 HP, Two Stage, Large Frame, Series 3

Snapper Schneefräsen 8243 - Snapper 24
PosArticle NumberDescription
1 BS7052028YPHANDLE ASMY, RH
1 BS7032922
2 BS7052029YP(S) HANDLE ASSY, LH
2 BS7032923
3 BS1726317SMGRIP, FOAM
4 BS7032907YP(S) HANDLE, IST, LH
5 BS7013925
5 BS7016573
6 BS7016297YP(S) CLEVIS PIN, 1/4X1
6 BS7016297
7 BS7016311YPCABLE, CLUTCH, LFST
7 BS7016311
8 BS7091540YPSECHSK.SCHRAUBE, 5/16-18
9 BS703164MUTTER
10 BS7035124YPPANEL, CONTROL
10 BS30009
BS30006
11 BS7012117SMBUSHING, 3/8 PLASTIC
12 BS7014630YP(S) DECAL, CHUTE CONT
13 BS7090552YPHHCS, 1/4FX1-3/8 GR5
13 BS7091025YPHHCS, 1/4F X1-3/8 GR5
14 BS704005PUSHNUT, CAP, 1/4
15 BS7032921YP(S) BRKT, HANDLE
16 BS703972NUT, HEX TOP, 1/4-28
17 BS7014298YP(S) CRANK, CHUTE #
17 BS7016305
18 BS7013901YPGRIFF, GERIFFELT
19 BS1931317SMBOLT - RD HD
19 BS7091064YPSCHRAUBE SCHIEBEGR., 1/4C X 1/
20 BS703233MUTTER, 1/4-20, GR5
21 BS7015960YP(S) GUIDE, CABLE
22 BS7032651YP(S) BRKT, CABLE GUIDE
23 BS7019295YPDECAL, SNAPPER
24 BS7091085YPFHSNB, #10C X1/2 YZ
25 BS7015389YP(S) DECAL, 8241
10 BS7015390YP(S) DECAL, 826
10 BS7015391
BS7052028
BS7052029
26 BS7027230SM(C) HHCS, 1/4C X1 GR5
27 BS7090623SMHFLN, #10C ZP
28 BS7038352YP(S) BRKT, CAM, YELLOW
29 BS7016310YPCABLE, AUGER DRIVE
30 BS7015966YP(S) SPRING, CAM LOCK
31 BS7015969YP(S) SPACER, .343OD X.
32 BS7018980YP(S) LOCK, CAM
33 BS7091294
34 BS703954
35 BS7013926YP(S) DECAL, BLOWER CLU
35 BS7016574YP(S) DECAL, BLOWER CLU
36 BS7032908YP(S) HANDLE, IST, RH
37 BS7091604YPRHSSNB, 1/4C X1/2 GR5
38 BS7013927
39 BS7073461SM
39A BS7024771
39A BS7024772
40 BS7012659
40 BS7016334YP(S) LEVER, SHIFT HAND
41 BS7040503YP(S) HANDLE, SHIFT
41 BS7040660YP(S) WELD, SHIFT HANDL
42 BS7037962YP(S) BRKT, PANEL ASSY
43 BS7090222YPHLN, 5/16F
43 BS7091606SMHCLN, 5/16F YZ
44 BS703350U-SCHEIBE, 5/16
44 BS7091076
45 BS7023933YP(S) SPRING, .40X1.0X.
46 BS330434MASCREW.31-24X1.50 HHC
47 BS7018698
47A BS24492
48 BS7014936YP(S) WIRE HARNESS
48A BSEingangswelle UE 600
49 BS7014940
50 BS7016312YP(S) ROD, UPPER SHIFT
51 BS7016304YP(S) NUT, CONNECTOR, 3
52 BS7091302SMHN, 3/8C GR5 YZ
53 BS7032131YP(S) LEVER, CLUTCH, CL
53 BS7032910YP(S) LEVER, CLUTCH, BL
54 Snapper MUTTER, 5/16-18, GR5BS703409MUTTER, 5/16-18, GR5
55 BS7016314YPFW, .33X1.25X.09 BZ
56 BS703970DISTANZSTUCK
57 BS7091598SMCOTTER PIN, 1/8X3/4 Y
