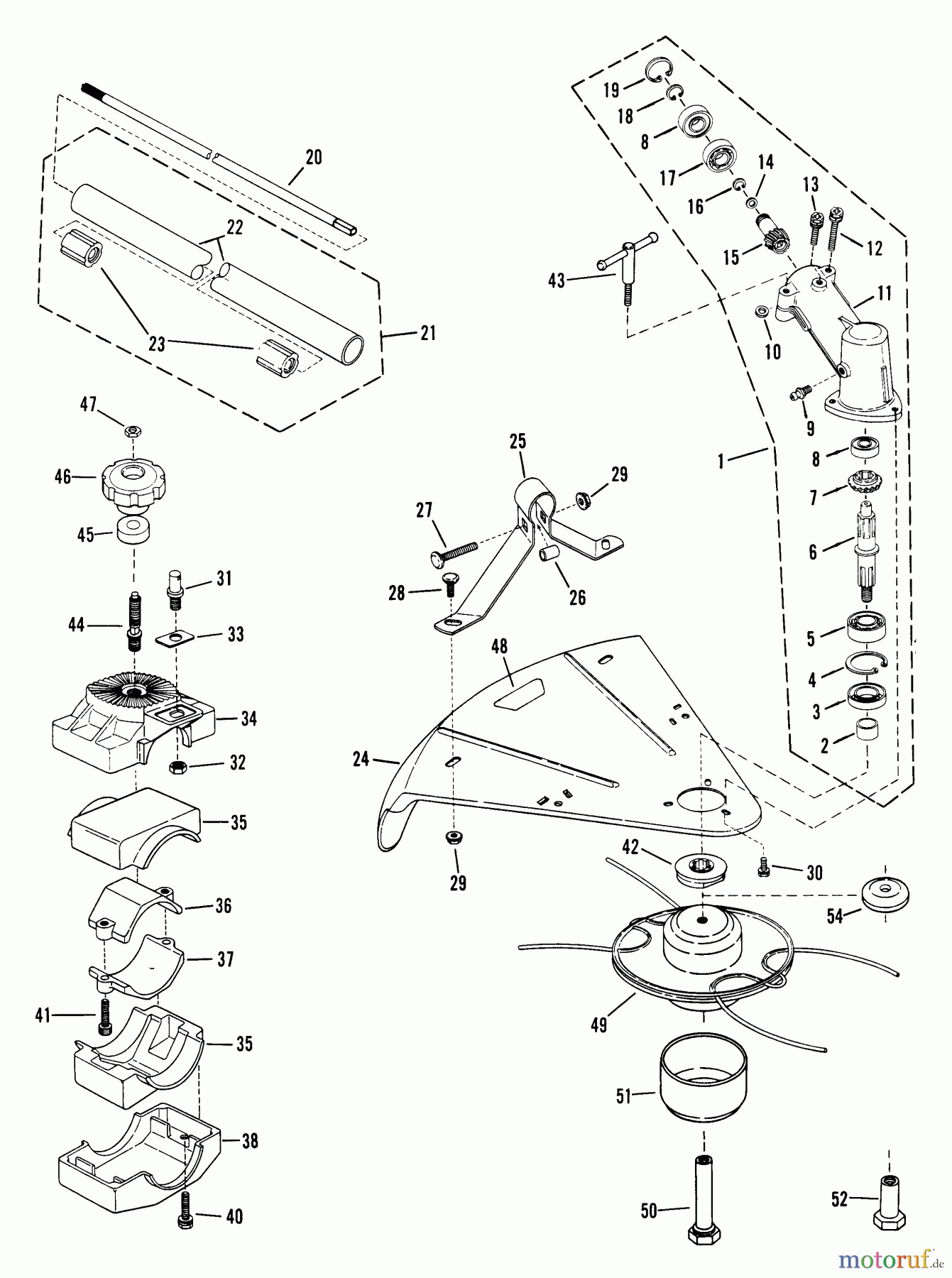

Snapper 2450 - Walk-Behind Trimmer 2450R.T. Gear Head, Tube & Bushing Assmy And Plastic Shield Spareparts

2450R.T. Gear Head, Tube & Bushing Assmy And Plastic Shield 2450 - Snapper Walk-Behind Trimmer

Snapper Trimmer 2450 - Snapper Walk-Behind Trimmer 2450R.T. Gear Head, Tube & Bushing Assmy And Plastic Shield
PosArticle NumberDescription
1 BS7043005YPGEAR HEAD, 30 DEG.
2 BS7043023
3 BS7043912YPSEAL, OIL
4 BS7043917YPSNAP RING
5 BS7043913YPBEARING ##
6 BS7043020
7 BS7043022
8 BS7043914YPBEARING ##
9 BS7043937YPGREASE FITTING, ZERK
10 BS7043032
11 BS7043019YPCASE, GEAR
12 BS7043028
13 BS7043029
14 BS7043031
15 BS7043021
16 BS7043030
17 BS7043025
18 BS7043027
19 BS7043026
20 BS7023432YPSHAFT, DRIVE, 1/4", W
21 BS7051787YPTUBE / BUSHING ASSY.
22 BS7051787
23 BS7015517YPBEARING ASSY.
24 BS7047896YPSPOT WELD,SHIELD #
25 BS7036154YPBRACE, SHIELD #
26 BS7023549YP
27 BS002X97MABOLT, CARR 5/16
28 BS703798BOLT, 5/16-18X0.50
29 Snapper MUTTER, 5/16-18, GR5BS703409MUTTER, 5/16-18, GR5
30 BS7043963YPHEX BOLT, M5X10
31 BS7014680YPSTUD, CLUTCH LINK
32 BS7090962YPHFLN, 3/8F ZP
33 BS7032825
34 BS7043947
35 BS7043132
36 BS43136
37 BS7043137
38 BS7043946
39 BS7043947
40 BS7043951
41 BS7043952
42 BS7016468YPHOLDER A ##
43 BS7043028
44 BS7016261
45 BS7016313
46 BS7016267
47 BS7016278
48 BS7015094YPDECAL, DIRECTION
49 BS7057500
50 BS7023099YPADAPTER, FLH, LH
51 BS7038547YPGLIDE BALL ##
52 BS7023734YPARBOR, GLIDE BALL
53 BS7043911
54 BS7016469
