Zerto-Turn Mäher MAIN FRAME AND REAR WHEEL ASSEMBLY Spareparts

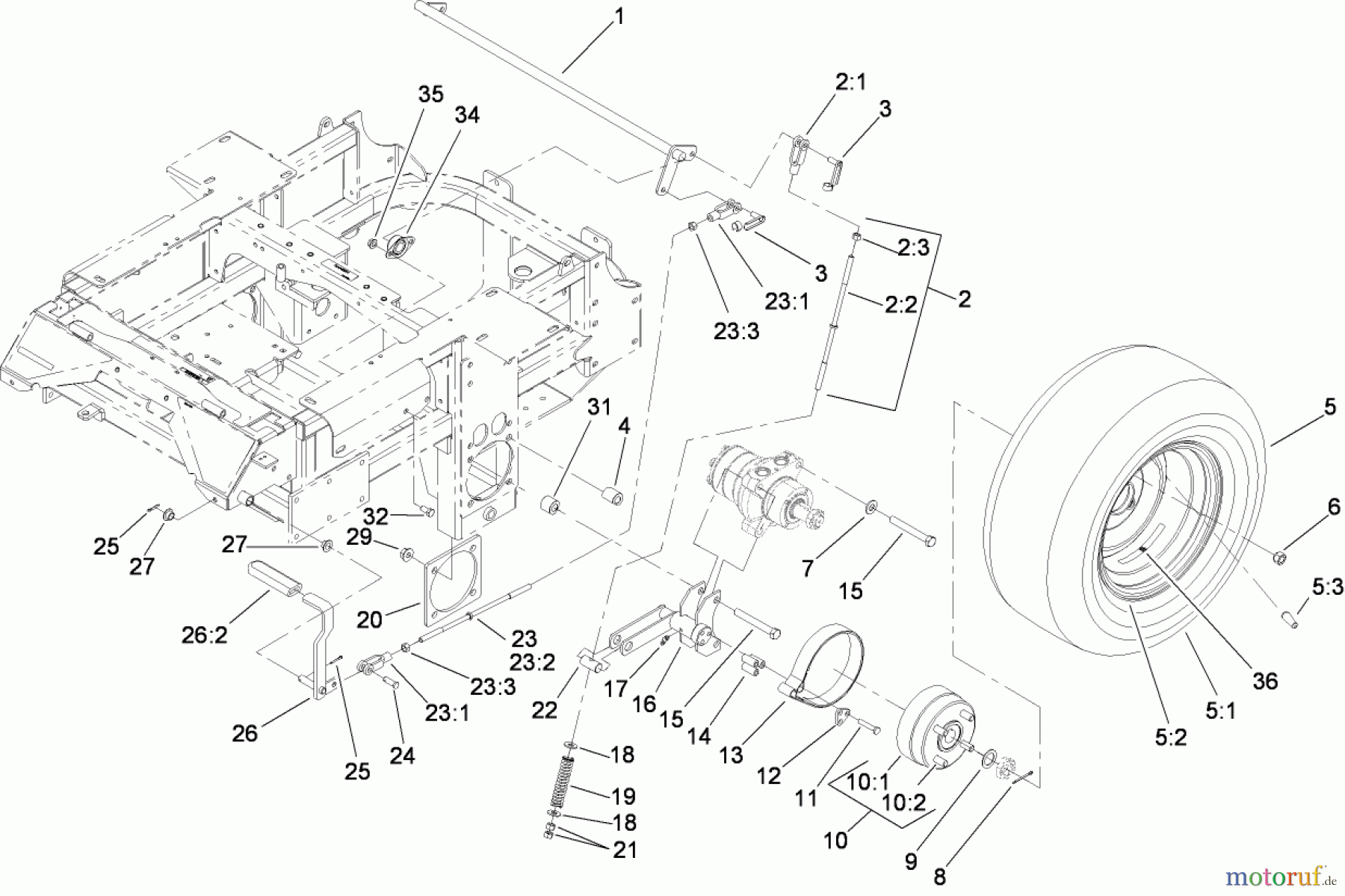

MAIN FRAME AND REAR WHEEL ASSEMBLY 74253 (Z580) - Toro Z Master Mower, 60" TURBO FORCE Side Discharge Deck (SN: 280000001 - 280999999) (2008)

Zerto-Turn Mäher 74253 (Z580) - Toro Z Master Mower, 60
PosArticle NumberDescription
1 TR1-632217-03SHAFT-BRAKE
2 TR108-5963BRAKE ROD ASM
2:1 TR1-633131YOKE-LINKAGE, BRAKE
2:2 TR108-5980ROD-BRAKE
2:3 TR3219-3NUT-HEX
3 TR103-2399PIN-SPRING, CLEVIS
4 TR114-1185SPACER-WHEEL, LONG
5 TR109-8972WHEEL AND TIRE ASM
5:1 TR1-633993TIRE
5:2 TR109-3156RIM ASM
5:3 TR5108VENTIL
6 TR242-50Mutter
7 TR87-7270Scheibe
8 TR1-806800PIN-COTTER
9 TR1-523157WASHER-SPACER
10 TR103-0590Radnabe Mit Trommel
10:1 TR103-0589WHEEL HUB ASM
10:2 TR1-633926STUD-WHEEL
11 TR322-9Schraube
12 TR103-0374Scheibe
13 TR103-0355BAND-BRAKE
14 TR103-0384Buechse
15 TR3251-8SCHRAUBE
16 TR103-0352-03BREMSHALTERUNG
17 TR1481Fettnippel (10)
18 TR3256-4WASHER-FLAT
19 TR1-633454SPRING-BRAKE
20 TR103-3271-03PLATE-REINFORCEMENT
21 TR3219-3NUT-HEX
22 TR1-633144PIN-TRUNION
23 TR108-5962BRAKE ROD ASM
23:1 TR1-633131YOKE-LINKAGE, BRAKE
23:2 TR1-633477ROD-BRAKE
23:3 TR3219-3NUT-HEX
24 TR1-808285Splinntbolzen
25 TR3272-10PIN-COTTER
26 TR1-634500BRAKE LEVER ASM
26:2 TR1-633268GRIP-LEVER
27 TR1-513140Lager
29 TR32128-49NUT-HHF
31 TR114-1184SPACER-WHEEL, SHORT
32 TR323-4Schraube
34 TR1-633102Flanschlager
35 TR3290-357NUT-HHF, WHIZ
36 TR109-7949DECAL
