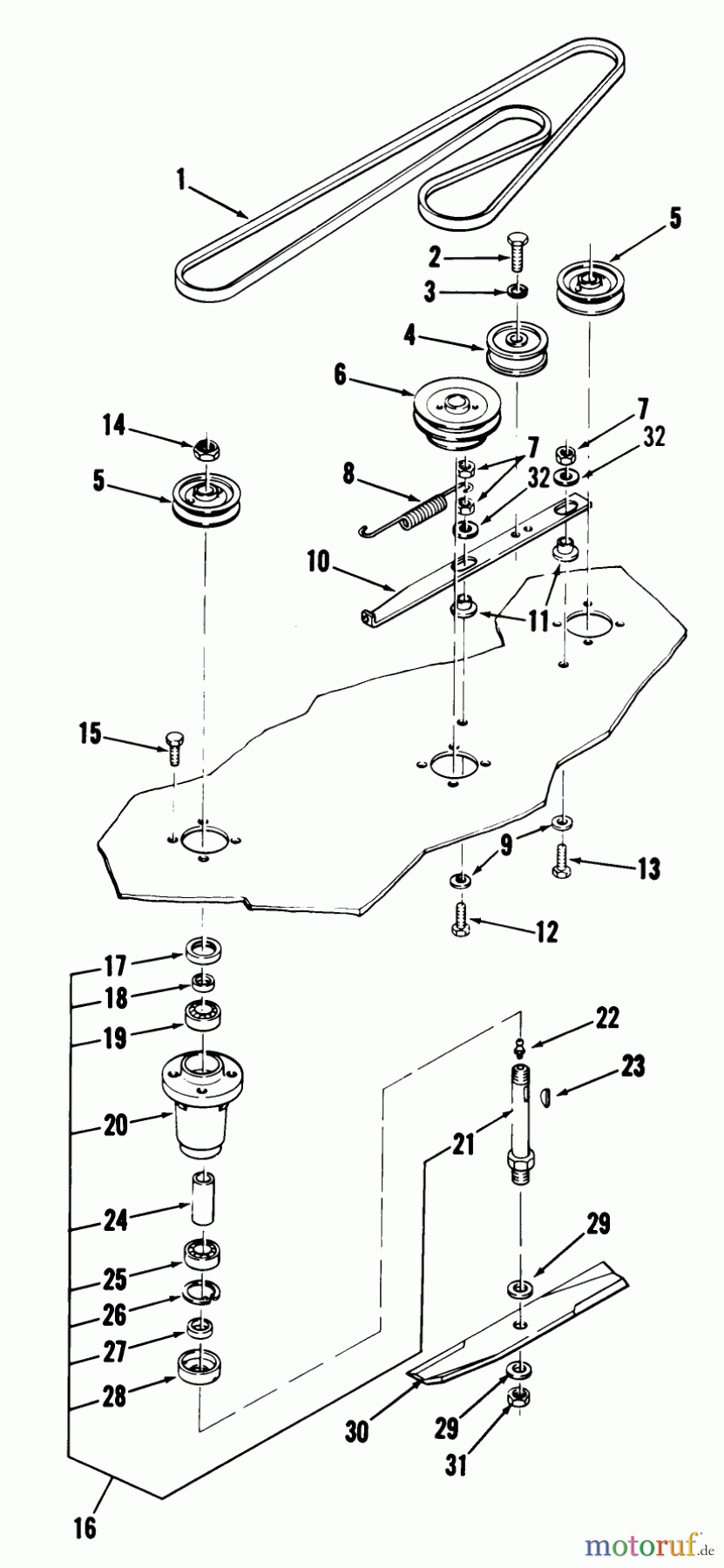

Toro 05-36MS01 - 36" Side Discharge Mower, 1982 SIDE DISCHARGE MOWER-48 IN. (122 CM) VEHICLE IDENTIFICATION NUMBER 05-48XS01 #2 Spareparts

SIDE DISCHARGE MOWER-48 IN. (122 CM) VEHICLE IDENTIFICATION NUMBER 05-48XS01 #2 05-36MS01 - Toro 36" Side Discharge Mower, 1982

Toro Neu Mowers, Deck Assembly Only 05-36MS01 - Toro 36
PosArticle NumberDescription
1 TR1594Keilriemen
2 TR105865Schraube (10)
3 TR3253-21Federring
4 TR93-1622PULLEY-IDLER
5 TR106074Riemenscheibe
6 TR106073PULLEY-48 MOWER SPDL
7 TR32-9639
8 TR100071Feder (2)
9 TR2844WASHER
10 TR106120BAR-IDLER SUPPORT
11 TR107674SPACER-BUSHING
12 TR323-9Schraube
13 TR323-7Schraube
14 TR3296-15Mutter
15 TR323-4Schraube
16 TR99-5361SPINDLE KIT (SERVICE)
17 TR106075SEAL
18 TR106070Buechse (5)
19 TR106085Kugellager
20 TR106063HOUSING-SPINDLE
21 TR108849Messerwelle
22 Toro SchmiernippelTR302-5Schmiernippel
23 TR937156KEIL (5)
24 TR106069SPACER
25 TR106084BEARING-BALL
26 TR936028SICHERUNGSRING (5)
27 TR106068Buchse (2)
28 TR106067Abdeckung
29 TR9202584WASHER-FLAT
30 TR106637Messersatz
31 TR32146-20Mutter
32 TR107675Scheibe (10)
