Toro 30152 - 52" Side Discharge Mower, 1988 (800001-899999) CUTTING UNIT ASSEMBLY Spareparts

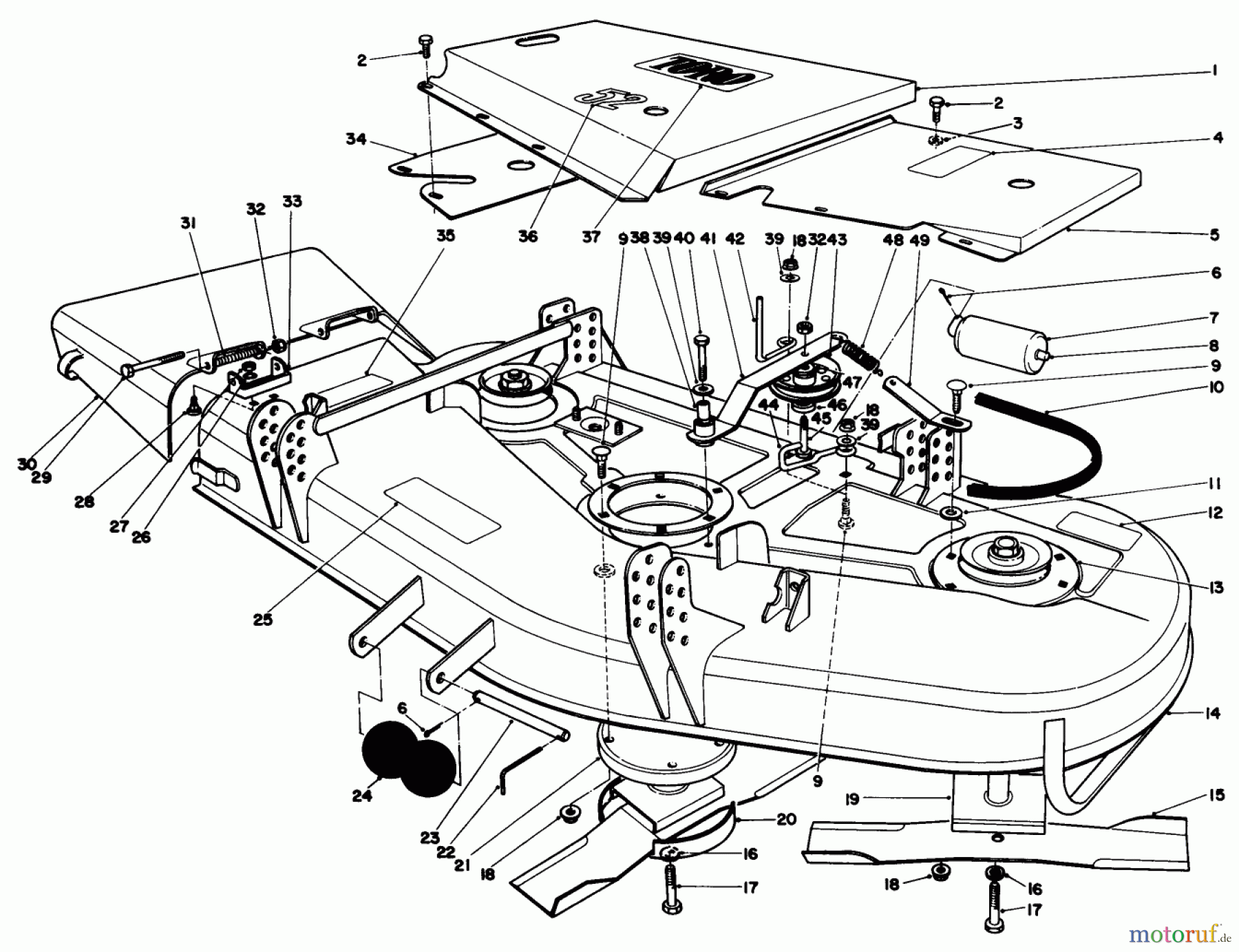

CUTTING UNIT ASSEMBLY 30152 - Toro 52" Side Discharge Mower, 1988 (800001-899999)

Toro Neu Mowers, Deck Assembly Only 30152 - Toro 52
PosArticle NumberDescription
1 TR51-3930CENTER COVER WA 52 *R
2 TR46-8560SCREW-HHFTF
3 TR3256-22Scheibe
4 TR42-6860Klebeschild
5 TR51-3910-01LH COVER ASM
6 TR3272-11Splint
7 TR36-1740Laufrolle
8 TR40-0340SHAFT-ROLLER, REAR
9 TR3231-22Schraube
10 TR27-1160V-BELT
11 TR3256-2Scheibe
12 TR26-7970CAUTION DECAL (BLADE)
13 TR27-7680-03Ring
14 TR51-3850DISCONTINUED
15 Toro MesserTR27-0990-03Messer
16 TR3253-27WASHER-LOCK
17 TR44-2200Messerschraube
18 TR32128-21Mutter
19 TR27-0870SPINDLE ASM
20 TR72-9361Schutzscheibe
21 TR54-7781Messerwelle Komplett
22 TR57-0690PIN-SPECIAL
23 TR40-6400Bolzen
24 TR29-4820Rolle
25 TR68-7280Schild
26 TR3253-4Federring
27 TR3217-6NUT-HEX
28 TR3230-18SCHRAUBE
29 TR3211-15Schraube
30 TR13-3949DEFLECTOR ASM
31 TR40-6230Feder
32 TR3296-5Stopmutter
33 TR29-5590-03Halterung
34 TR51-3890-01RH COVER ASM
35 TR26-7980DISCONTINUED
36 TR51-3960DECAL
37 TR62-7400Klebeschild
38 TR51-3640Buchse
39 Toro WASHER-FLATTR3256-24WASHER-FLAT
40 TR3231-1Schraube
41 TR55-7640-03Keilriemenspannarm
42 TR52-4780Riemenfuehrung
43 TR65-5940Keilriemenscheibe
44 TR55-7620Riemenfuehrung
45 TR321-18SCHRAUBE
46 TR65-5950Buechse
47 TR7-0081Scheibe
48 TR51-3650Feder
49 TR55-7650PLATE-SPRING
TR56-2390-03Messer
