Toro 30560 - 52" Rear Discharge Mower, 1984 (4000001-4999999) HYDRAULIC VALVE AND LIFT ARM AND CYLINDERS Spareparts

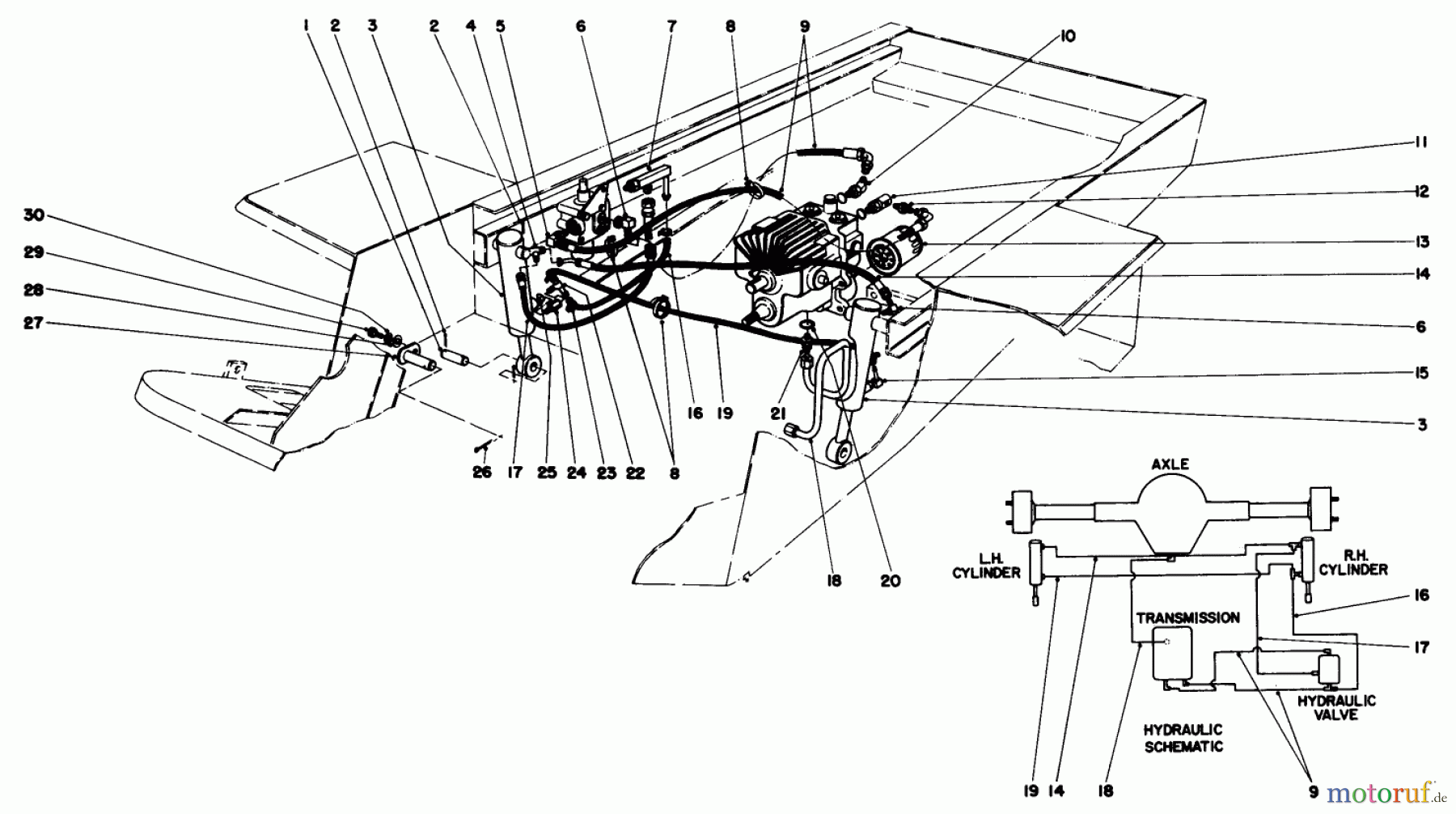

HYDRAULIC VALVE AND LIFT ARM AND CYLINDERS 30560 - Toro 52" Rear Discharge Mower, 1984 (4000001-4999999)

Toro Neu Mowers, Deck Assembly Only 30560 - Toro 52
PosArticle NumberDescription
1 TR27-4240PIN-CYLINDER
2 TR3272-23PIN-COTTER
3 TR83-7000Hubzylinder
4 TR353-566Anschlussnippel
5 TR353-374Winkelstueck
6 TR353-375Winkelstueck 90 Grad
7 TR38-2550ANSCHLUSS-STUECK
8 TR3290-378KABELHALTER
9 TR38-2560Schlauch
10 TR353-212Anschlussstueck
11 TR36-7960DISCONTINUED
12 TR353-678DISCONTINUE
13 TR23-2300FILTER-OIL, TRANSMISSION
14 TR27-5010Hydraulikschlauch
15 TR304-99Anschlussnippel
16 TR27-4490DISCONTINUED
17 TR27-5020DISCONTINUED
18 TR27-3760Hydraulikleitung
19 TR109-0281HOSE-FUEL
20 TR237-80O-RING
21 TR353-385Anschluss-Stueck
22 TR353-567ANSCHLUSSNIPPEL
23 TR2412-36Klemme
24 TR353-565Anschlussnippel
25 TR237-78O.-Ring
26 TR3272-17Splint
27 TR27-4310-01Hubbolzen
28 TR3256-22Scheibe
29 TR321-2Schraube
30 TR3253-3Federring
