Toro 30560 - 52" Rear Discharge Mower, 1984 (4000001-4999999) INSTRUMENT PANEL AND STEERING POST ASSEMBLY Spareparts

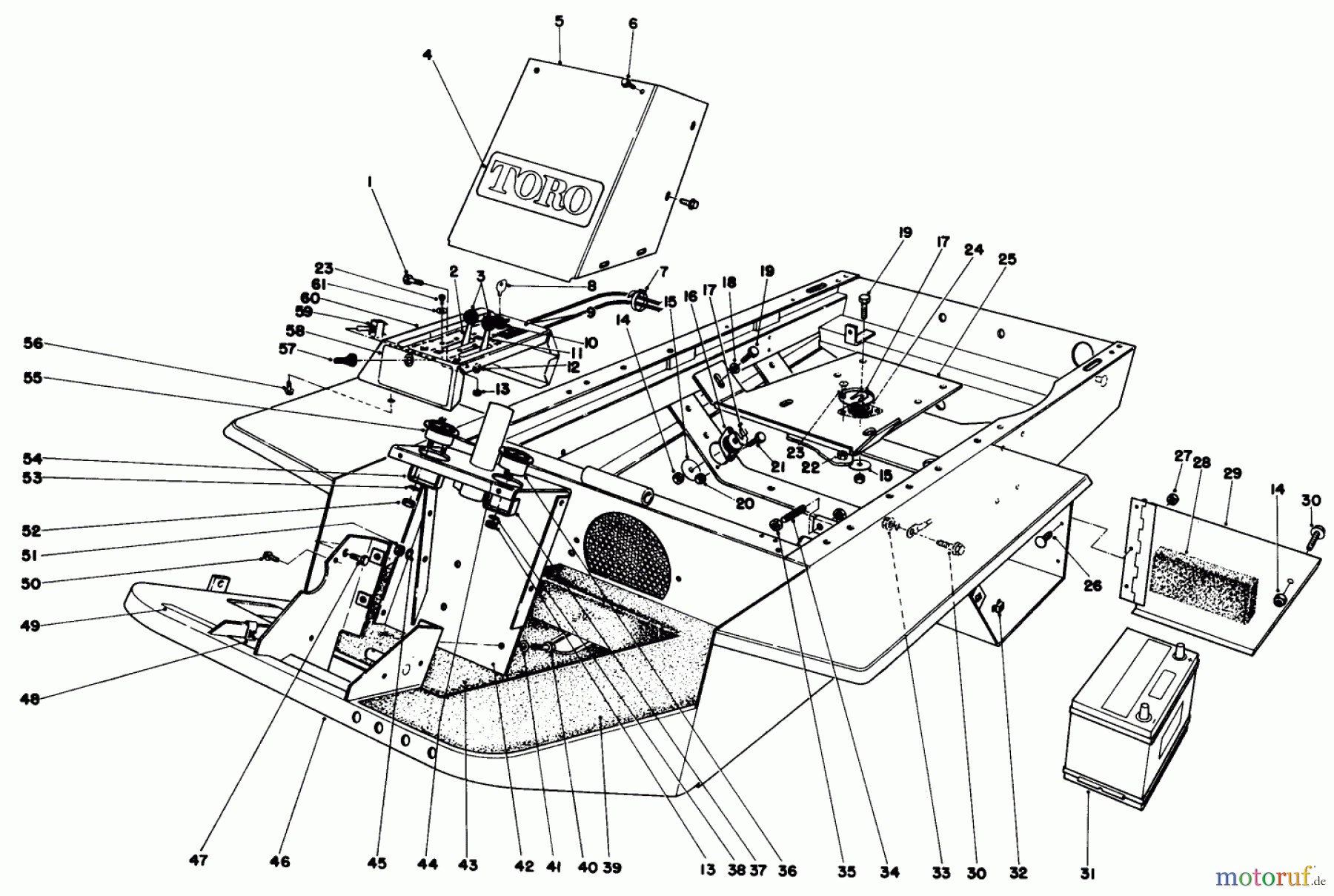

INSTRUMENT PANEL AND STEERING POST ASSEMBLY 30560 - Toro 52" Rear Discharge Mower, 1984 (4000001-4999999)

Toro Neu Mowers, Deck Assembly Only 30560 - Toro 52
PosArticle NumberDescription
1 Toro SchraubeTR321-4Schraube
2 TR44-9300CHOKE CONTROL
3 TR233-35Bedienungsknopf
4 TR67-1300Namensschild
5 TR41-8900-01STRG TOWER COVER
6 TR46-8560SCREW-HHFTF
7 TR3290-378KABELHALTER
8 TR62-7770ZUENDSCHLUESSEL
9 TR68-7350DECAL - INST. PANEL
10 TR27-2360Zuendschloss
11 TR44-9250THROTTLE CONTROL
12 TR3256-22Scheibe
13 TR3217-26Mutter
14 TR32-9639
15 TR28-1140Scheibe
16 TR44-9390Gummipuffer
17 TR42-6080Scheibe
18 Toro WASHER-FLATTR3256-24WASHER-FLAT
19 Toro SchraubeTR3231-2Schraube
20 Toro MutterTR3296-29Mutter
21 TR322-3Schraube
22 TR3296-2Mutter
23 TR3251-3Schraube
24 TR18-8000Gummipuffer
25 TR44-9320-03ENGINE BASE ASM
26 TR3274-31SCHRAUBE
27 Toro MutterTR3296-42Mutter
28 TR44-9460BATT BOX FOAM
29 TR44-8920-01BATTERY COVER WA
30 TR3234-11Schraube
31 TR
32 TR3290-433Mutter
33 TR3290-357NUT-HHF, WHIZ
34 TR27-6940DISCONTINUED
35 Toro MutterTR3218-3Mutter
36 TR66-2950Stundenzaehler
37 TR218-515BRACKET
38 TR3254-1Scheibe
39 TR27-3250Fussauflage
40 TR324-6Schraube
41 TR3253-6Federring
42 TR42-2580-01MASKED STRG. POST BRKT WA
43 TR27-3260Fussauflage
44 TR41-8910INSTRUCTION DECAL
45 TR3253-21Federring
46 TR44-9170FRAME ASM
47 TR323-5Schraube
48 TR3290-192DISCONTINUED
49 TR93-7836KLEBESCHILD
50 TR32104-60Schraube
51 TR3217-7Mutter
52 TR3219-14NUT-HEX
53 TR3256-21SCHEIBE
54 TR39-9600MTG CLAMP F/W GUAGE
55 TR33-0990AMMETER GAUGE ASSY
56 TR32104-116Schraube
57 TR218-473Schalter-Abdeckung
58 TR46-3460BY-PASS DECAL
59 TR6-1659Schalter
60 TR46-3350-01Armaturenbrett
61 TR3253-17Federring
