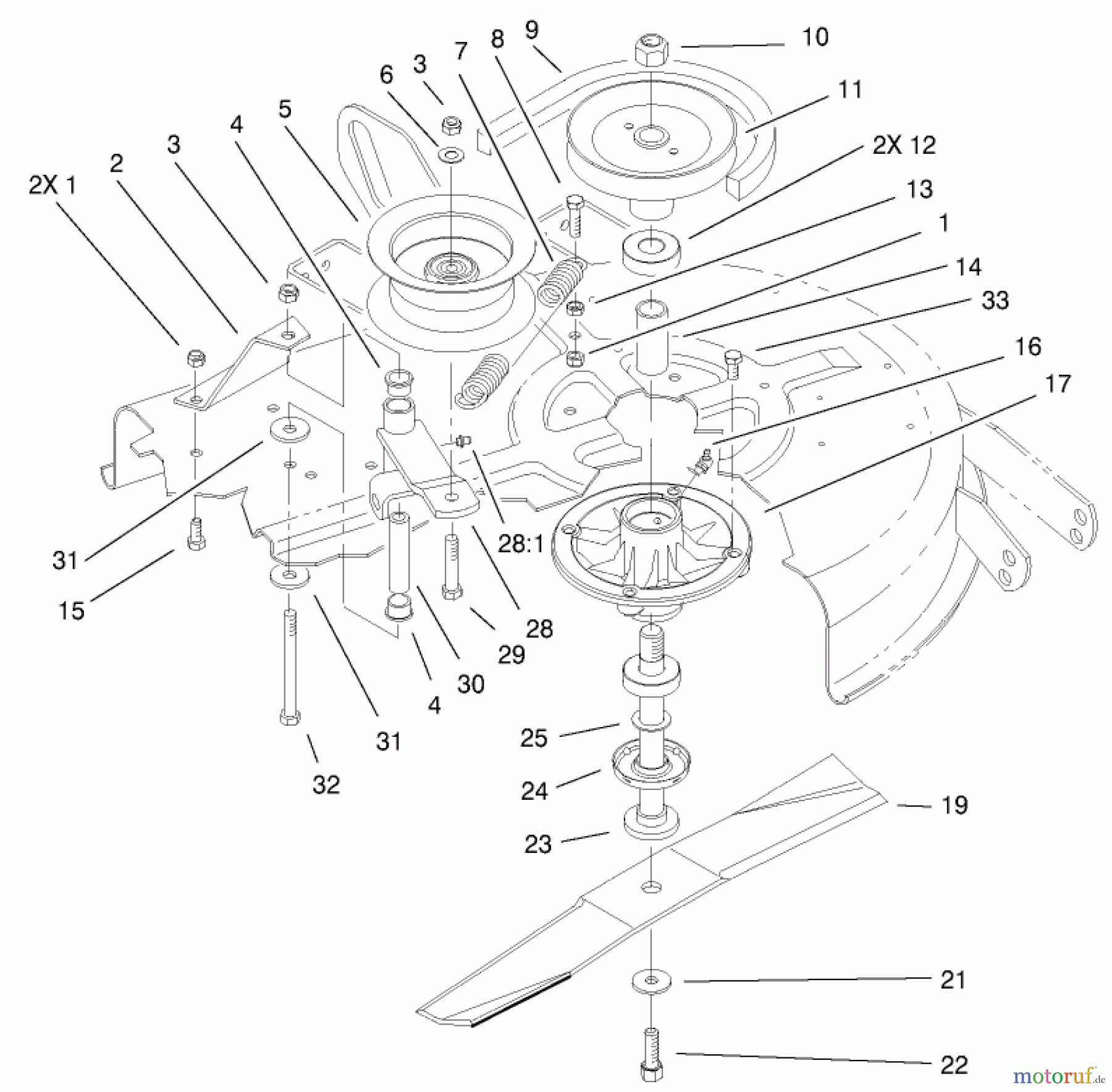

Toro 78216 - 38" Side Discharge Mower, 260 Series Lawn and Garden Tractors, 2001 (210000001-210999999) BLADE, SPINDLE AND PULLEY ASSEMBLY Spareparts

BLADE, SPINDLE AND PULLEY ASSEMBLY 78216 - Toro 38" Side Discharge Mower, 260 Series Lawn and Garden Tractors, 2001 (210000001-210999999)

Toro Neu Mowers, Deck Assembly Only 78216 - Toro 38
PosArticle NumberDescription
1 Toro MutterTR3296-29Mutter
2 TR78-8091-03BRACE
3 TR32-9639
4 TR109859Buechse
5 TR92-7082Spannrolle
6 Toro WASHER-FLATTR3256-24WASHER-FLAT
7 TR78-6210Feder
8 TR322-6Schraube
9 TR92-7066Keilriemen
10 TR3219-6Mutter
11 TR100-3546Riemenscheibe
12 TR109966KUGELLAGER
13 TR3217-6NUT-HEX
14 TR62-3661Buechse
15 TR322-3Schraube
16 TR302-11Nippel
17 TR100-3547HOUSING-SPINDLE
19 TR57-4700-03Messer
21 TR112843WASHER
22 Toro SCHRAUBETR26-0671SCHRAUBE
23 TR100-3548Messerwelle
24 TR80-4360SHIELD-BEARING
25 TR80-4380Distanzscheibe
28 TR94-9795Spannarm
28:1 Toro SchmiernippelTR302-5Schmiernippel
29 TR323-10Schraube
30 TR109950Distanzbuechse
31 TR2844WASHER
32 TR3231-6SCHRAUBE
33 Toro SchraubeTR32144-41Schraube
