Toro 79105 - 44" Recycler Mower, 1996 (6900001-6999999) BELT COVER & DEFLECTOR ASSEMBLY Spareparts

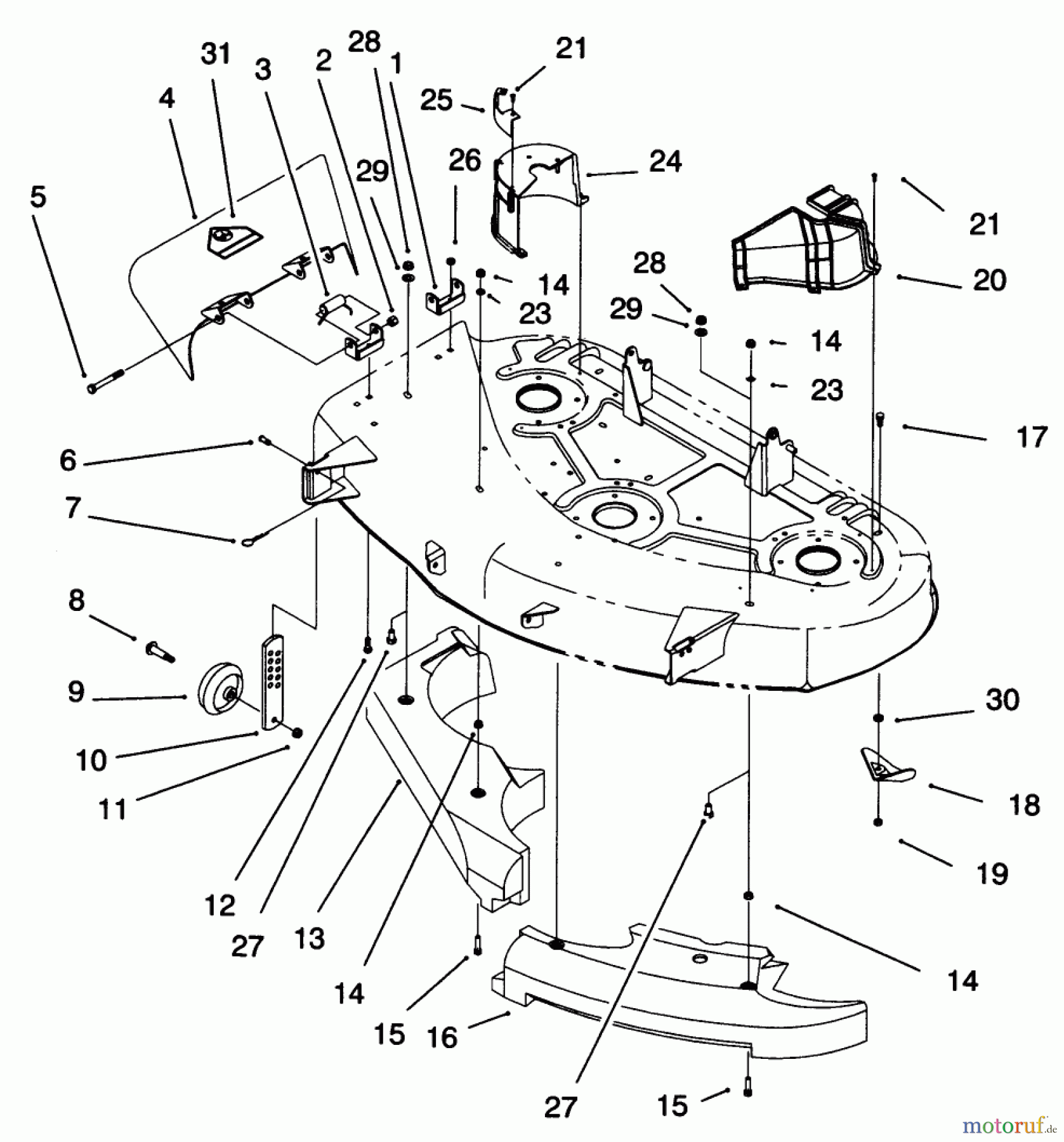

BELT COVER & DEFLECTOR ASSEMBLY 79105 - Toro 44" Recycler Mower, 1996 (6900001-6999999)

Toro Neu Mowers, Deck Assembly Only 79105 - Toro 44
PosArticle NumberDescription
1 TR29-5590-03Halterung
2 TR3296-5Stopmutter
3 TR40-6230Feder
4 TR57-6980DEFLECTOR/DECAL ASM (44")(BLAC
5 TR3211-15Schraube
6 TR283-2Bolzen
7 TR1-806003HAARNADELSICHERUNG
8 TR56-6591Bolzen
9 TR701756Laufrad
10 TR93-8010PLATE-GAGE WHEEL
11 TR3296-59Mutter
12 TR3230-23Schloss Schraube
13 TR93-7651GRASLEITBLECH
14 TR32149-1Mutter
15 TR322-6Schraube
16 TR93-7652Grasleitstueck
17 TR3230-1Schraube
18 TR84-5760Recyclerklotz
19 Toro MutterTR3296-29Mutter
20 TR93-3866Keilriemenabdeckung
21 TR32104-76Schraube
23 TR3290-456Tellerscheibe
24 TR93-3865Keilriemenabdeckung
25 TR93-3876-03ABDECKUNG
26 Toro MutterTR3296-29Mutter
27 TR3231-21SCREW-CARR
28 TR32-9639
29 TR3256-5Scheibe
30 TR59-4310Buechse
31 TR43-8480DECAL-DANGER
