Toro 30103 - Mid-Size Proline Gear Traction Unit, 12 hp, 1989 (9000001-9999999) FRAME ASSEMBLY Spareparts

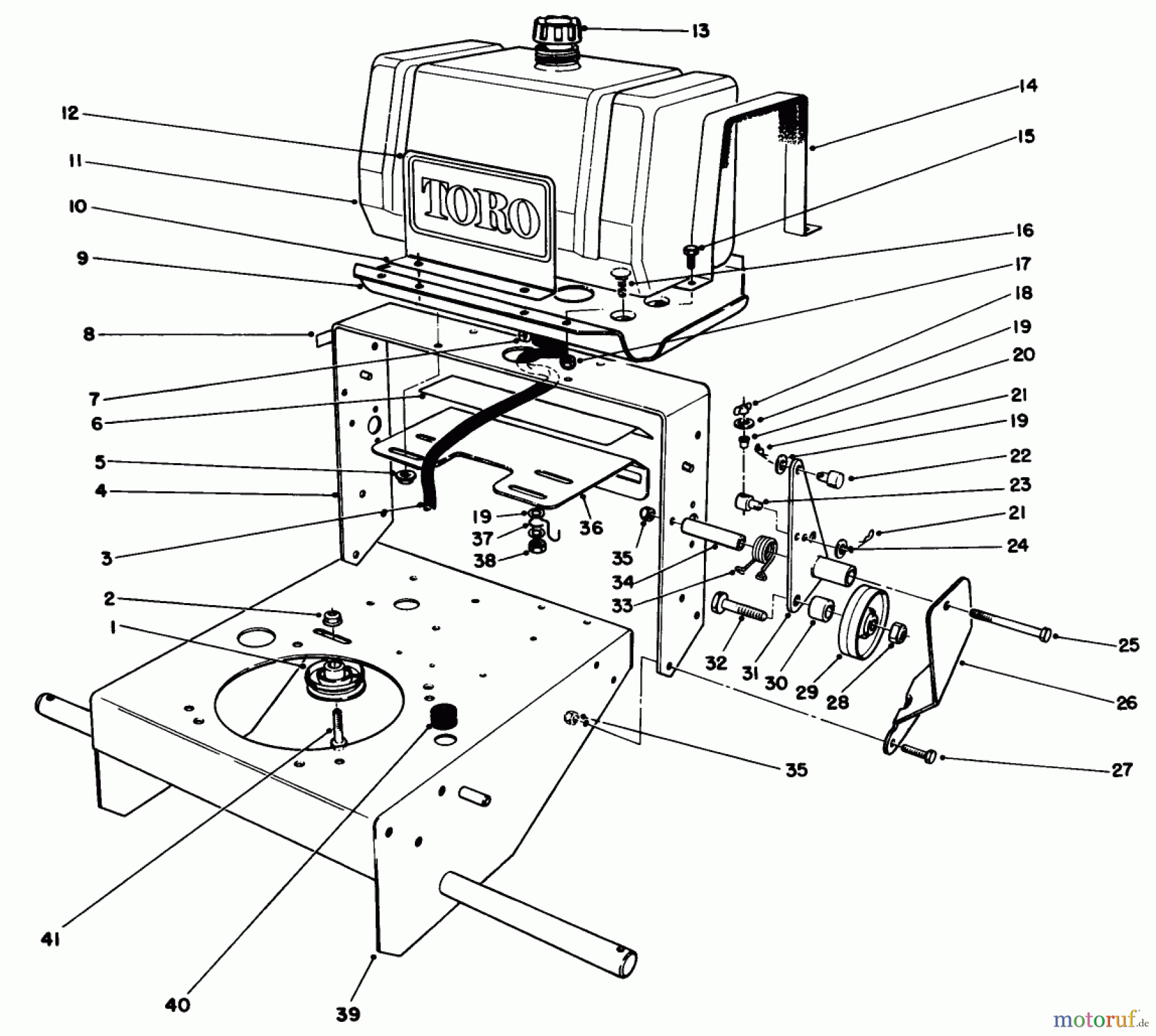

FRAME ASSEMBLY 30103 - Toro Mid-Size Proline Gear Traction Unit, 12 hp, 1989 (9000001-9999999)

Toro Neu Mowers, Drive Unit Only 30103 - Toro Mid-Size Proline Gear Traction Unit, 12 hp, 1989 (9000001-9999999) FRAME ASSEMBLY
PosArticle NumberDescription
1 TR51-4810Spannrolle
2 TR32128-21Mutter
3 TR47-2986BENZINSCHLAUCH
4 TR74-0360-01Heckrahmen
5 TR32128-13Flanschmutter
6 TR82-7750DECAL-GROUND SPEED
7 TR2412-108CLAMP-WORM
8 TR74-0490Klebeschild
9 TR62-4030Tankhalterung
10 TR62-4120Platte
11 TR62-4040Tank
12 TR62-5550Toro-Schild
13 TR55-3570GAS CAP ASM
14 TR62-5500STRAP ASSEMBLY
15 TR321-3SCREW-HH
16 TR3230-3Schraube
17 Toro MutterTR3296-42Mutter
18 TR32103-25NUT-WING
19 TR3256-23Scheibe
20 TR52-2890Kunststoffbuchse
21 TR1-806003HAARNADELSICHERUNG
22 TR54-3080Bolzen
23 TR68-9690FITTING-ROD
24 TR3256-23Scheibe
25 TR3231-6SCHRAUBE
26 TR67-6380-01Seitenplatte Li.
TR67-6370-01BRACKET-SUPPORT, RH
27 TR323-6Schraube
28 TR3296-23Mutter
29 TR99-5879PULLEY W/SPACER
30 TR51-4490Buchse
31 TR67-6760SPANNROLLENHALTER
TR67-6750DISCONTINUED X-REF
32 TR51-4450Bolzen
33 TR51-4380Feder
TR51-4370Feder
34 TR51-4340Buchse
35 TR32-9639
36 TR66-7400-01PLATE-CONTROL
37 TR62-5610DISCONTINUED
38 Toro MutterTR3296-29Mutter
39 TR51-4100DISCONTINUED
40 TR237-124Gummituelle
41 TR323-9Schraube
TR99-5881AXLE KIT
