Toro 30106 - Mid-Size Proline Gear Traction Unit, 12.5 hp, 1990 (0000001-0999999) BATTERY ASSEMBLY Spareparts

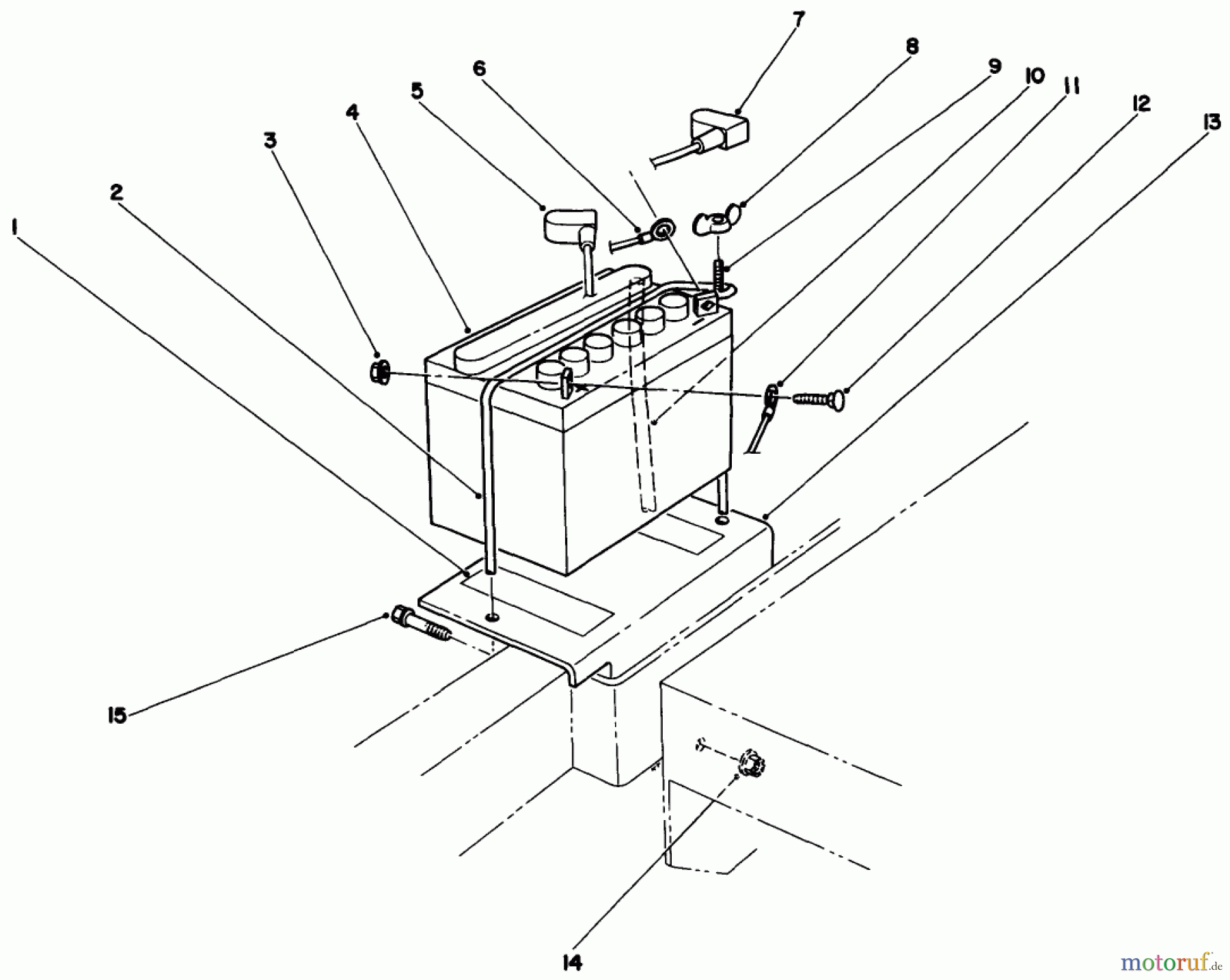

BATTERY ASSEMBLY 30106 - Toro Mid-Size Proline Gear Traction Unit, 12.5 hp, 1990 (0000001-0999999)

Toro Neu Mowers, Drive Unit Only 30106 - Toro Mid-Size Proline Gear Traction Unit, 12.5 hp, 1990 (0000001-0999999) BATTERY ASSEMBLY
PosArticle NumberDescription
1 TR51-4210Gummibelag
2 TR54-1260Batterieklemme
3 TR32149-1Mutter
4 TR49-7030BATTERIE
5 TR77-0970DISCONTINUED
6 TR54-3091Kabel
7 TR77-0981Gummikappe
8 TR32103-19Fleugelmutter
9 TR12-5950Batterie-Halter
10 TR68-3810Ablass-Schlauch
11 TR54-3092Kabel
12 TR3230-1Schraube
13 TR77-0960DISCONTINUED
14 TR32128-23Mutter
15 TR3234-22SCREW-HHF
