Toro 71197 (17-44HXL) - 17-44HXL Lawn Tractor, 2000 (200000001-200999999) FRAME & BODY ASSEMBLY Spareparts

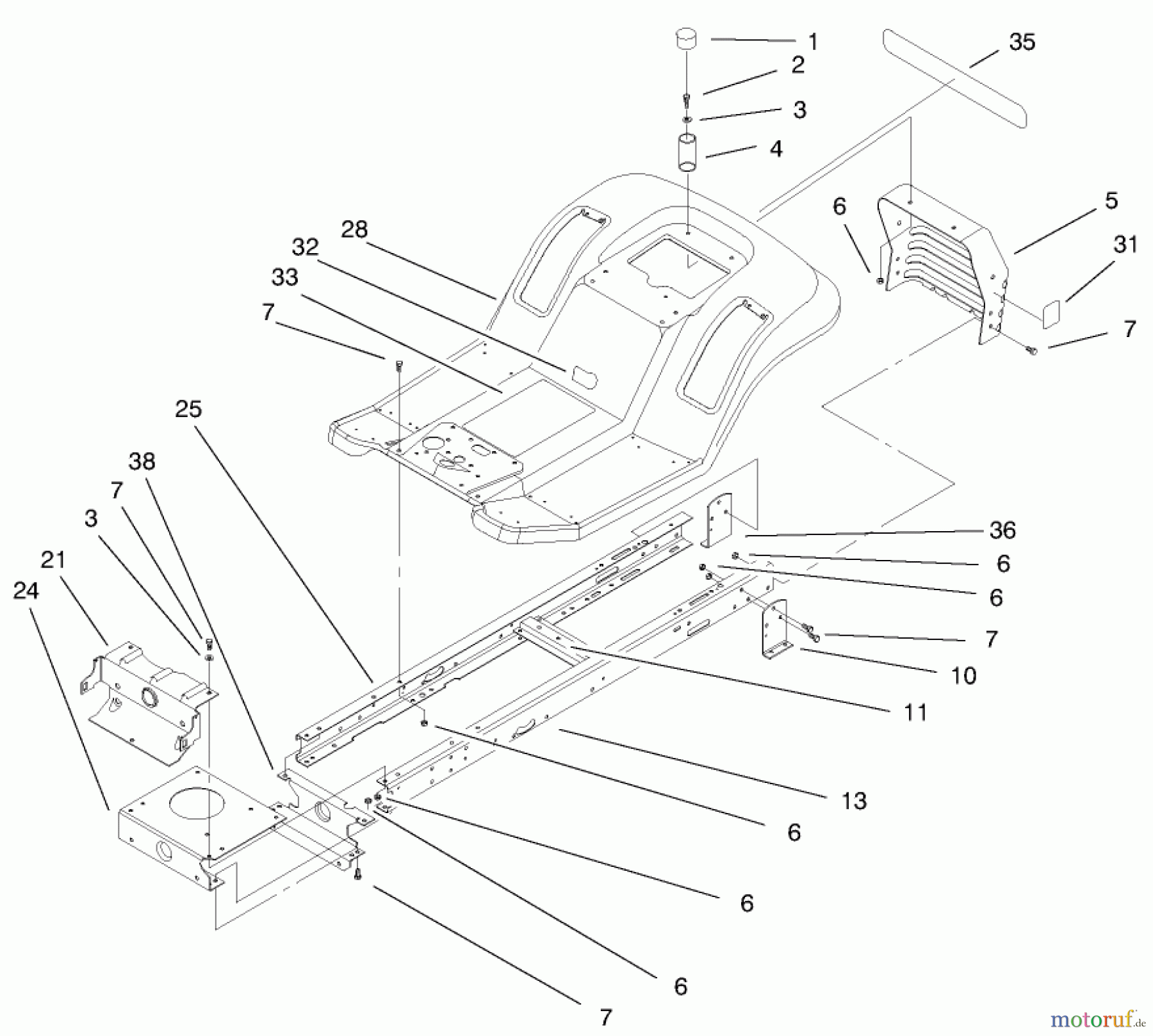

FRAME & BODY ASSEMBLY 71197 (17-44HXL) - Toro 17-44HXL Lawn Tractor, 2000 (200000001-200999999)

Toro Neu Mowers, Lawn & Garden Tractor Seite 1 71197 (17-44HXL) - Toro 17-44HXL Lawn Tractor, 2000 (200000001-200999999) FRAME & BODY ASSEMBLY
PosArticle NumberDescription
1 TR70-1178Kappe
2 TR322-5Schraube
3 TR3256-23Scheibe
4 TR88-6220SPRING-COMPRESSION
5 TR99-2957-03SUPPORT-SEAT/REAR HITCH
6 Toro MutterTR3296-29Mutter
7 TR322-3Schraube
10 TR93-3857-03BRACKET-MOUNTING, LH TRANSAXLE
11 TR88-4620-03Spannrollenhalter
13 TR99-2958-03RAIL-FRAME, LH
21 TR98-3576-03SUPPORT-AXLE, FRONT
24 TR88-4630-03Motorplatte
25 TR99-2959-03Rahmen-Rechts
28 TR99-2971Haube-Hinten
31 TR93-6678DECAL - DUMP VALVE
32 TR76-1340Klebeschild
33 TR99-6095DECAL-INSTRUCTION, HYDRO
33 TR93-6676Klebeschild
35 TR95-0809Klebeschild
36 TR93-3856-03BRACKET-MOUNTING, RH TRANSAXLE
38 TR93-3831-03Hintere Aufhaengung
