Toro 71233 (17-44HXL) - 17-44HXL Indy Special Edition Lawn Tractor, 2003 (230000001-230999999) TRANSAXLE MAIN HOUSING AND BEARING ASSEMBLY Spareparts

TRANSAXLE MAIN HOUSING AND BEARING ASSEMBLY 71233 (17-44HXL) - Toro 17-44HXL Indy Special Edition Lawn Tractor, 2003 (230000001-230999999)

Toro Neu Mowers, Lawn & Garden Tractor Seite 1 71233 (17-44HXL) - Toro 17-44HXL Indy Special Edition Lawn Tractor, 2003 (230000001-230999999) TRANSAXLE MAIN HOUSING AND BEARING ASSEMBLY

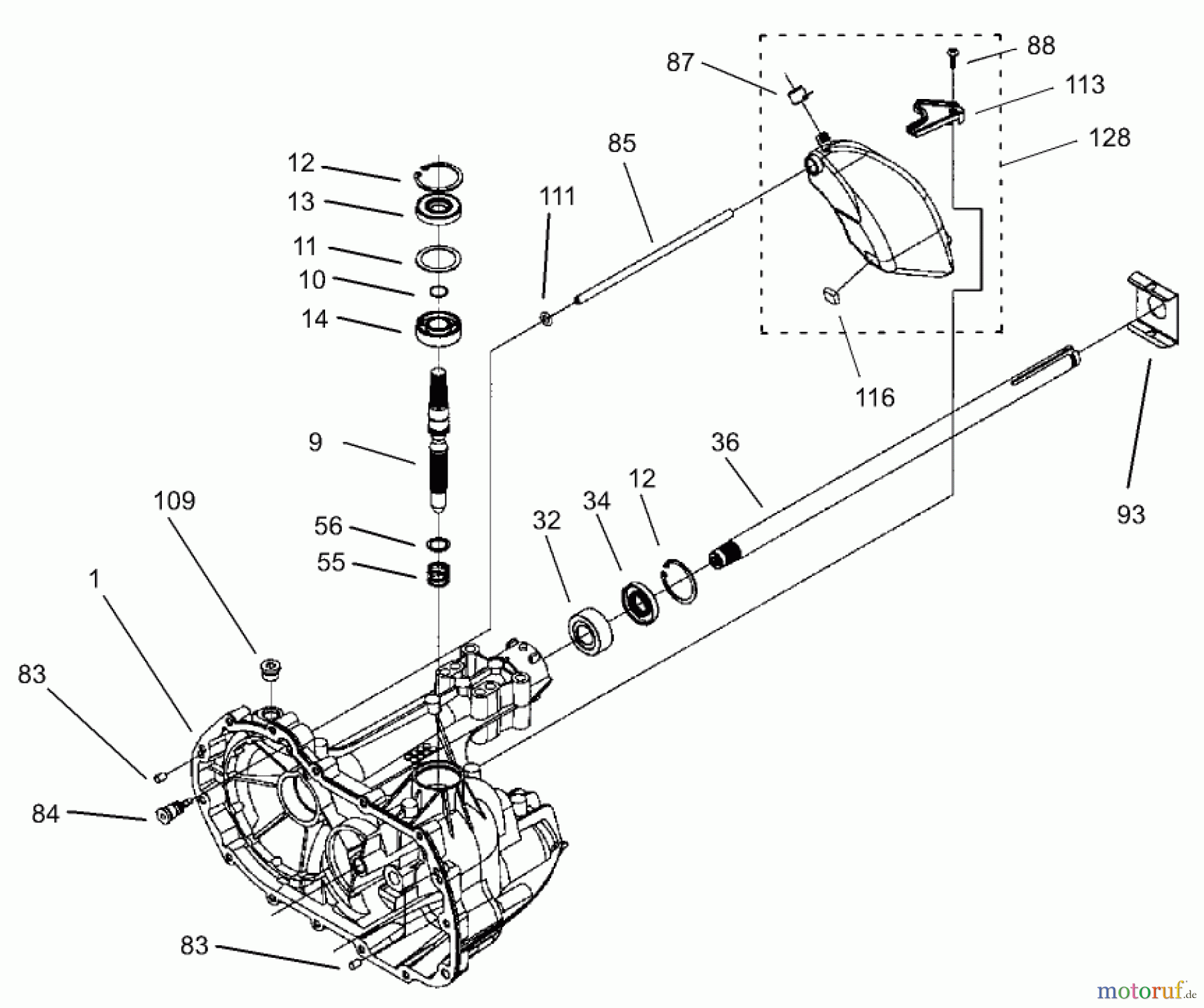

PosArticle NumberDescription
1 TR104-5301GETRIEBEGEHAEUSE
9 TR104-5306Zahnwelle
10 TR104-5307RING-RETAINING
11 TR104-5308Distanzscheibe
12 TR104-5309Seegerring
13 TR104-5310SEAL-LIP
14 TR104-5311Kugellager
32 TR104-5321Kugellager
34 TR104-5322SEAL-LIP
36 TR104-5324Steckachse
55 TR94-1936SPRING-BLOCK
56 TR94-1937SCHEIBE
83 TR104-2170STIFT
84 TR104-5349FITTING
85 TR104-5350Schlauch
87 TR104-5351Ventilkappe
88 TR104-5352BOLT-TAPPING, SELF
93 TR104-5353Sicherungsblech
109 TR104-2189PLUG-THREAD, STRAIGHT
111 TR104-5361O-Ring
113 TR104-5362BRACKET-SUPPORT
116 TR104-5364SPONGE-SILICONE
128 TR104-5369TANK
