Toro 73561 (522xi) - 522xi Garden Tractor, 2000 (200000001-200000200) TIE RODS, SPINDLE, & FRONT AXLE ASSEMBLY Spareparts

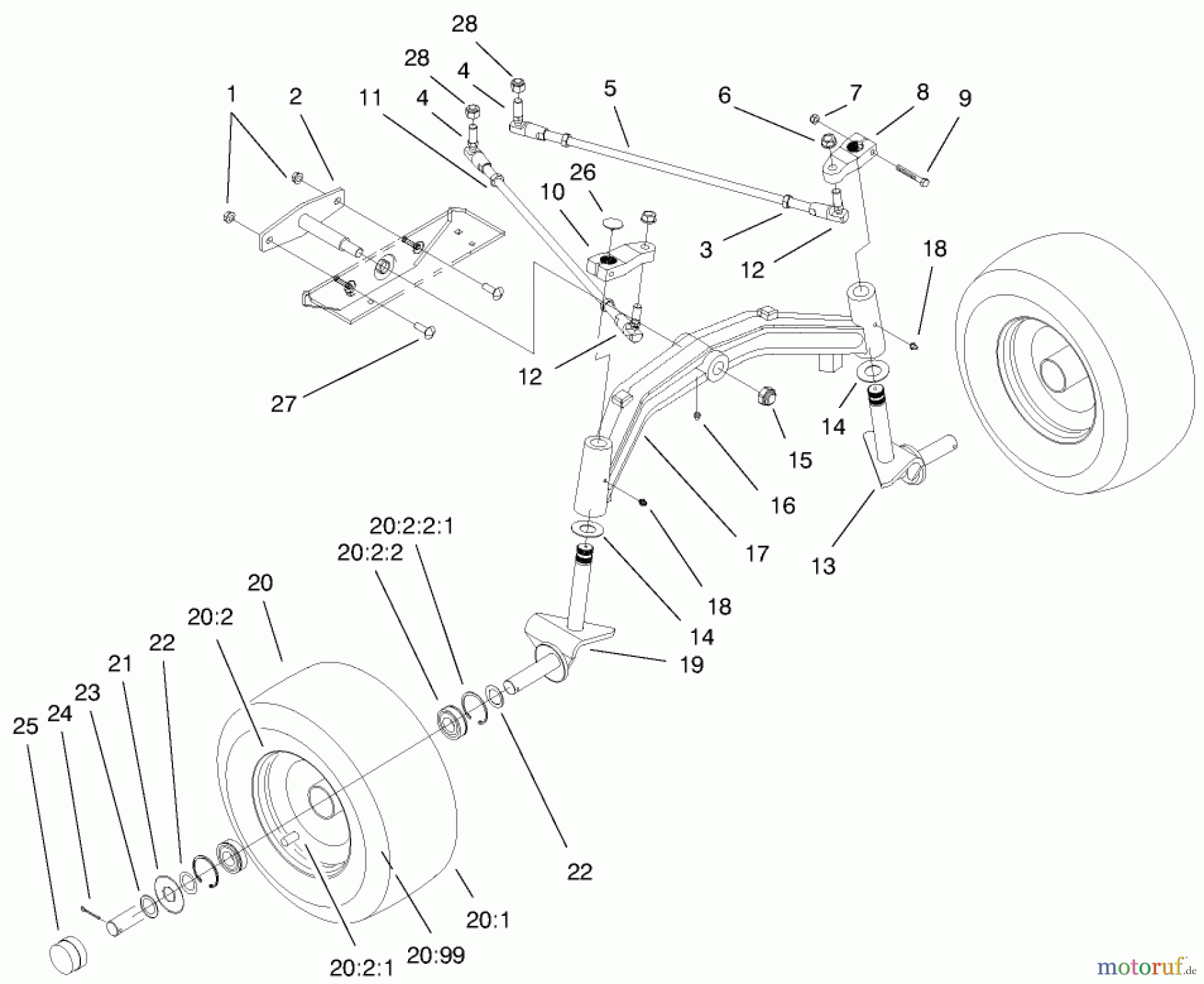

TIE RODS, SPINDLE, & FRONT AXLE ASSEMBLY 73561 (522xi) - Toro 522xi Garden Tractor, 2000 (200000001-200000200)

Toro Neu Mowers, Lawn & Garden Tractor Seite 1 73561 (522xi) - Toro 522xi Garden Tractor, 2000 (200000001-200000200) TIE RODS, SPINDLE, & FRONT AXLE ASSEMBLY
PosArticle NumberDescription
1 TR32-9639
2 TR94-2205-03PIN-PIVOT
3 TR3220-5Mutter
4 TR94-7539BALLJOINT-THREAD, LH
5 TR100-1121Spurstange
6 TR98-8088Mutter
7 Toro MutterTR3296-29Mutter
8 TR94-2197Spurstangenarm
9 TR322-32Schraube
10 TR94-2196Spurstangenarm
11 TR3220-12NUT-HJ (LH THREAD)
12 TR98-8086BALLJOINT-THREAD, RH
13 TR94-7537-03Achsschenkel
14 TR9548WASHER-THRUST
15 TR3296-61Mutter
16 Toro SchmiernippelTR302-5Schmiernippel
17 TR94-7568-03Vorderachse
18 Toro SchmiernippelTR302-5Schmiernippel
19 TR94-7536-03SPINDLE-RH
20 TR99-3695ORDER COMPONENT PARTS
20:1 TR99-3696Reifen (16X7.5)
20:2 TR94-7541Felge
20:2:1 TR5108VENTIL
20:2:2 TR94-7538Kugellager
20:2:2:1 TR94-7538Kugellager
20:99 TR112819Schlauch
21 TR95-4060WASHER-WHEEL
22 TR920251Scheibe
23 TR9202524Ausgleichsscheibe
24 TR3272-18PIN-COTTER
25 TR94-7871Radkappe
26 TR98-1642DECKEL
27 TR3231-25Bolzen
28 TR98-8089NUT-LOCK
