Toro 74582 (DH 210) - DH 210 Lawn Tractor, 2007 (270000001-270999999) HOOD ASSEMBLY Spareparts

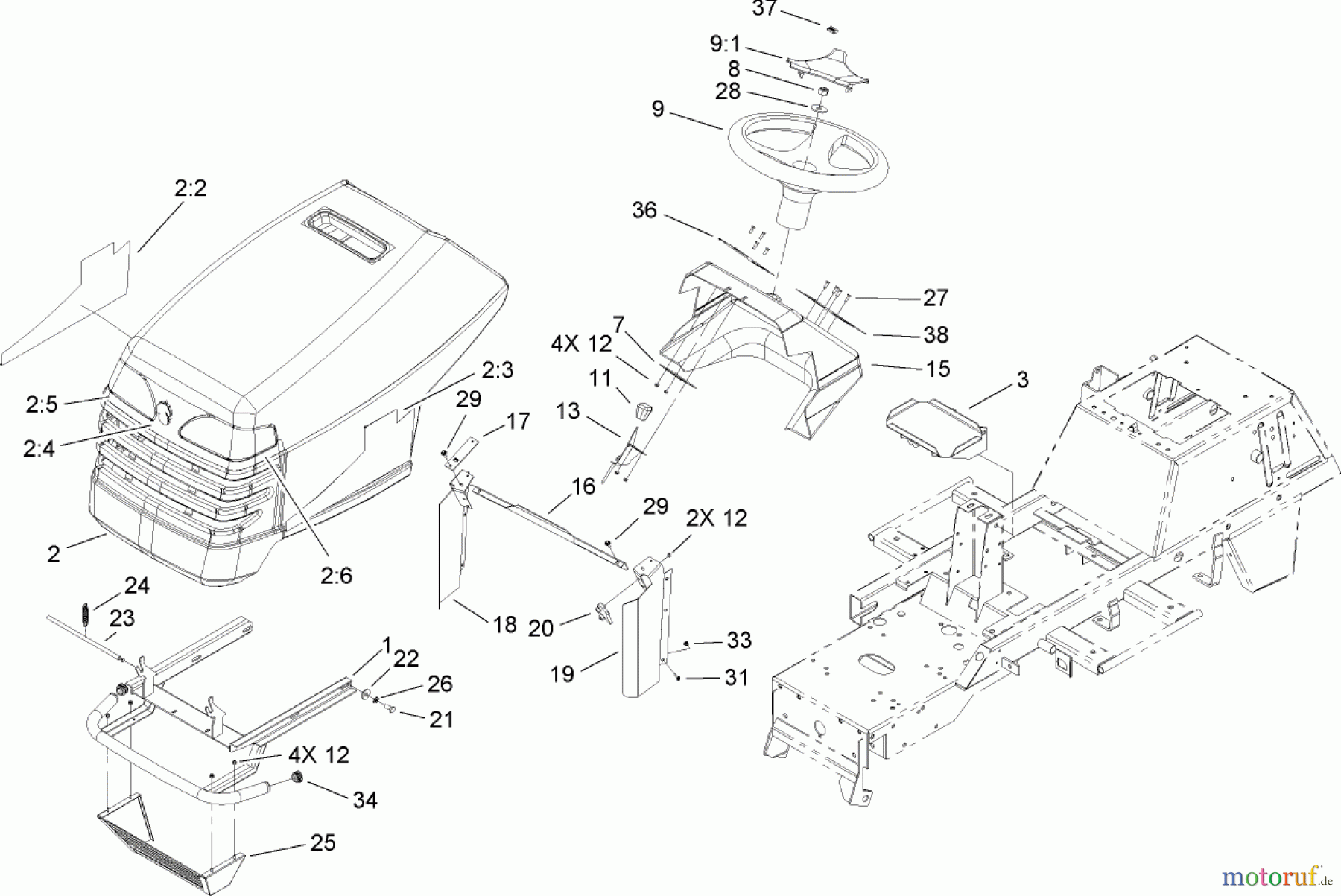

HOOD ASSEMBLY 74582 (DH 210) - Toro DH 210 Lawn Tractor, 2007 (270000001-270999999)

Toro Neu Mowers, Lawn & Garden Tractor Seite 1 74582 (DH 210) - Toro DH 210 Lawn Tractor, 2007 (270000001-270999999) HOOD ASSEMBLY
PosArticle NumberDescription
1 TR107-2216StoSSstange
2 TR107-8988Haube
2:2 TR107-8913Klebeschild
2:3 TR107-8902Klebeschild
2:4 TR95-4248EMBLEM
2:5 TR107-8983Lampe rechts
2:6 TR107-8984LENS-HEADLAMP, LH
3 TR110-8679TRAY-BATTERY
7 TR104-2962BRACE
8 TR33026-00Stopmutter
9 TR98-1471Lenkrad
9:1 TR98-1468COVER-WHEEL, STEERING
11 TR66-0120KNOB
12 TR87-5140Mutter
13 TR106-4166Chokezug
15 TR104-2968Panele
16 TR104-2970ABDECKBLECH
17 TR104-2971BRACKET
18 TR104-2972PANELE RECHTS
19 TR104-2973PANELE LINKS
20 TR92-6960LATCH-HOOD
21 TR33114-020SCREW-HH
22 TR104-2946WASHER-PLAIN
23 TR104-2974BAR-SAFETY
24 TR104-2975Zugfeder
25 TR107-2218GUARD-MUFFLER
26 TR3253-4Federring
27 TR106-5759SCREW
28 TR106-5758WASHER
29 TR104-2980SCREW
31 TR107-8918SCREW
33 TR104-2985NUT-HEX
34 TR107-8943PLUG-END, TUBE
36 TR104-3236DECAL-CHOKE/THROTTLE/KEY
37 TR98-1459DECAL
38 TR104-3235KLEBESCHILD
