Toro 91-10K802 (C-101)- C-101 8-Speed Tractor, 1979 MECHANICAL TRANSMISSION-8 SPEED #2 Spareparts

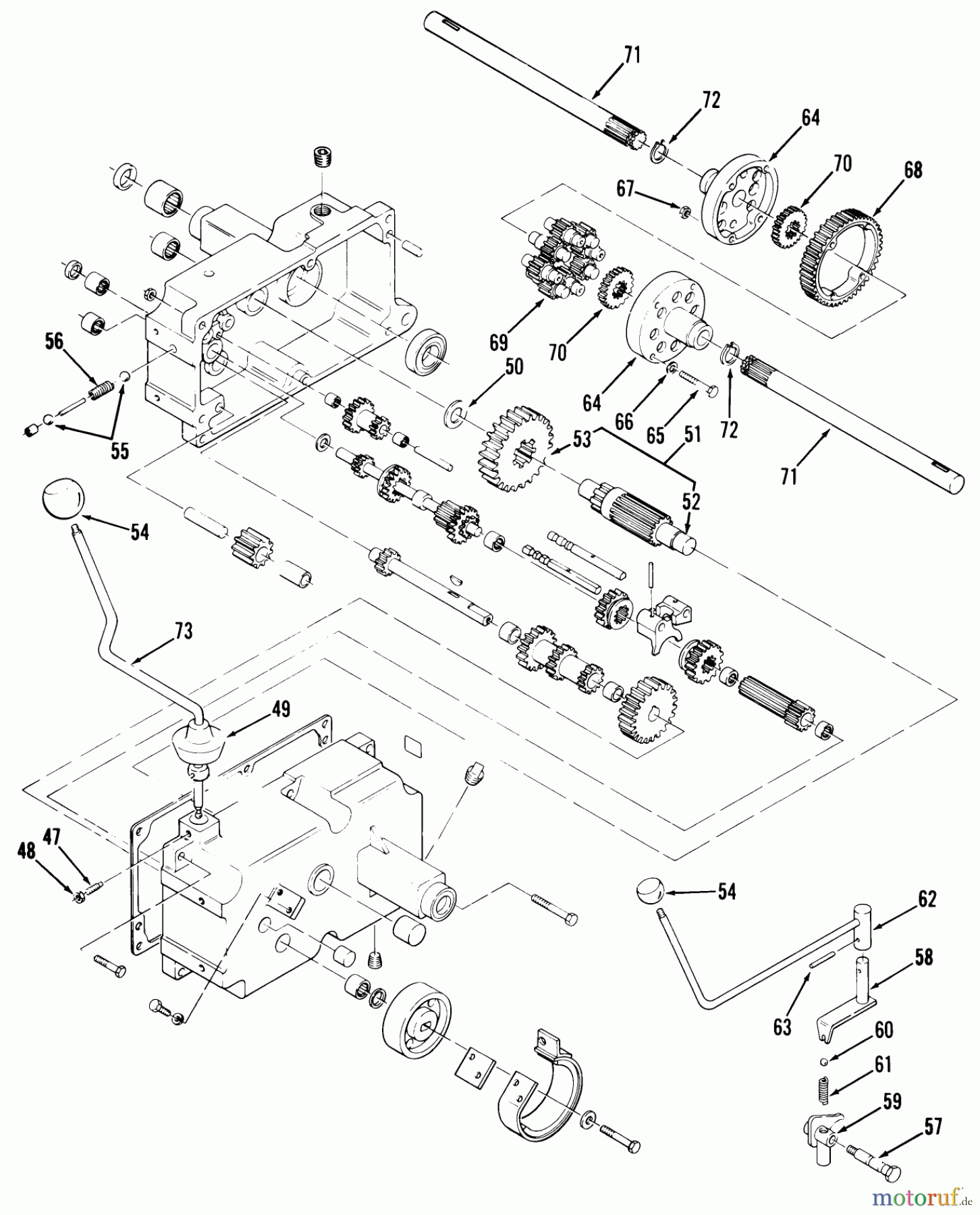

MECHANICAL TRANSMISSION-8 SPEED #2 91-10K802 (C-101)- Toro C-101 8-Speed Tractor, 1979

Toro Neu Mowers, Lawn & Garden Tractor Seite 2 91-10K802 (C-101)- Toro C-101 8-Speed Tractor, 1979 MECHANICAL TRANSMISSION-8 SPEED #2
PosArticle NumberDescription
47 TR1239SETSCREW
48 TR3217-5Mutter
49 TR3577Gummikappe (2)
50 TR9547WASHER-THRUST
51 TR102974GEAR ASM
52 TR101625PINION SHAFT
53 TR101626GEAR
54 TR102871Schaltknopf
55 TR3517Kugel (10)
56 TR106030Feder (5)
57 TR7213Bolzen
58 TR7214SHIFT ASM
59 TR116636-03SHIFT FORK ASM
60 TR3517Kugel (10)
61 TR106030Feder (5)
62 TR110727SHIFT ROD ASM
63 TR93-3184DECKEL
64 TR10-5060Fuehrung
65 TR323-15Schraube
66 TR107374Scheibe
67 Toro NUT-LOCK, SIDETR32153-2NUT-LOCK, SIDE
68 TR105061Trabandenrad
69 TR101623Antriebsritzel
70 TR101889Zahnrad
71 TR105875Welle
72 TR105876RING-SNAP
73 TR10759S5
