Toro 74363 (Z4200) - TimeCutter Z4220 Riding Mower, 2009 (290000505-290999999) ENGINE CONTROL ASSEMBLY KOHLER SV610-0211 Spareparts

ENGINE CONTROL ASSEMBLY KOHLER SV610-0211 74363 (Z4200) - Toro TimeCutter Z4220 Riding Mower, 2009 (290000505-290999999)

Toro Neu Mowers, Zero-Turn 74363 (Z4200) - Toro TimeCutter Z4220 Riding Mower, 2009 (290000505-290999999) ENGINE CONTROL ASSEMBLY KOHLER SV610-0211

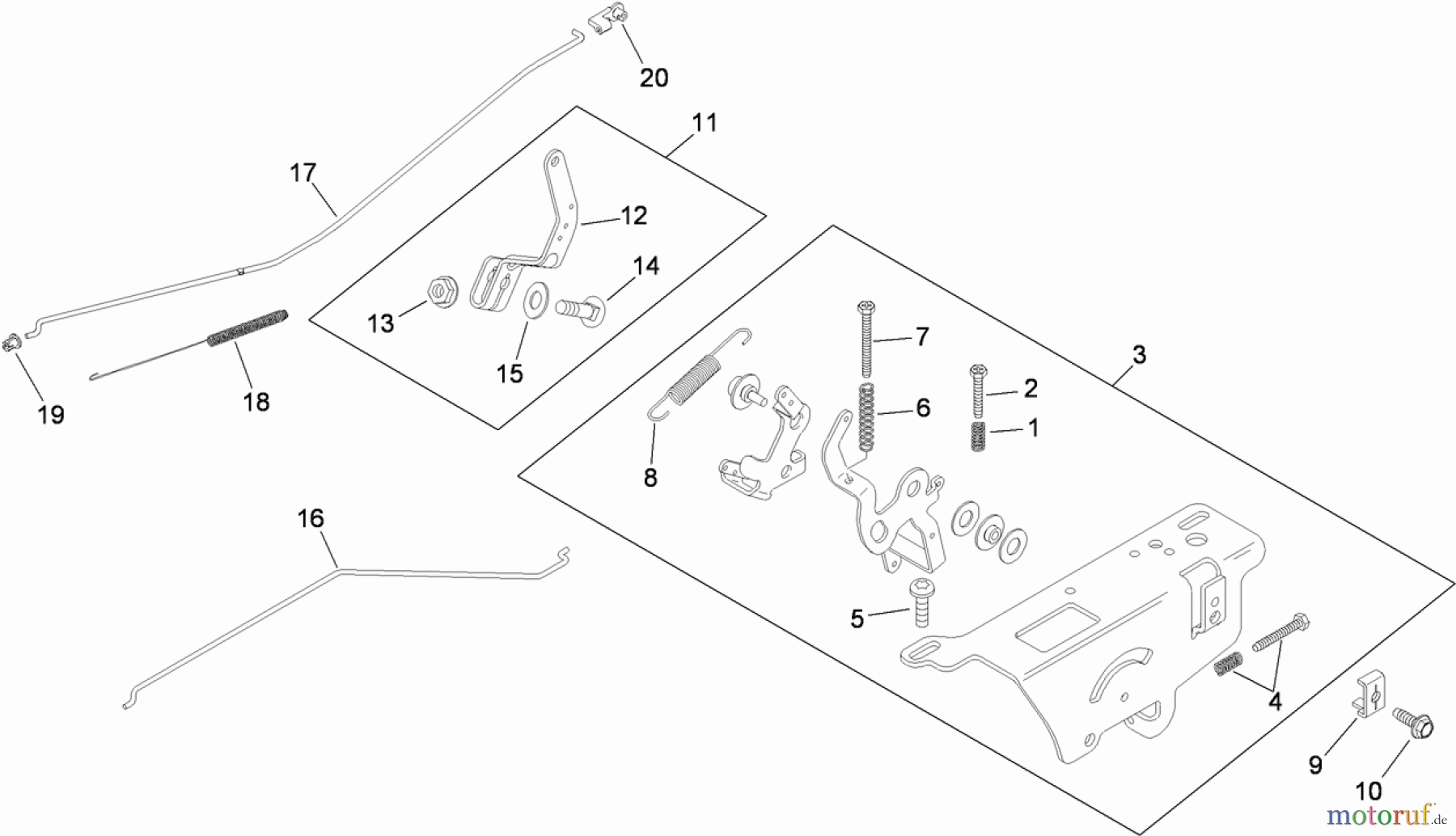

PosArticle NumberDescription
1 KH1208911-SSPRING, SPEED CONTROL (SHORT)
2 KH2008610-SSCREW, PHL THD FRM M4X0.7X25
3 KH2053606-SKIT, SPEED CONTROL ASSEMBLY
4 KH25086297-SKIT, IDLE ADJ SCREW & SPRING
5 KH25 086 403-S
6 KH2008912-SSPRING, SPEED CONTROL (LONG)
7 KH2008618-SSCREW, PHL THD FRM M4X0.7X38
8 KH2008911-SSPRING, GOVERNOR
9 KH1223701-SCLAMP, CABLE
10 KH25086426-SSCREW, THREAD FORMING
11 KH2009011-SLEVER, GOVERNOR ASSEMBLY
12 KH2009011-SLEVER, GOVERNOR ASSEMBLY
13 KH1210007-SNUT, FLANGE 1/4-20
14 KH5221104-SBOLT, RD HD SQ NCK 1/4-20X1"
15 KHX-22-11-SWASHER, INT TOOTH LOCK 1/4"
16 KH2007905-SLINKAGE, CHOKE
17 KH2007907-SLINKAGE, THROTTLE
18 KH2008910-SSPRING, LINKAGE
19 KH2515808-SBUSHING, LINKAGE RETAINING
20 KH2515811-SBUSHING, THROTTLE LINKAGE
