Toro 74373 (Z5030) - TimeCutter Z5030 Riding Mower, 2009 (290000001-290004012) ELECTRICAL ASSEMBLY Spareparts

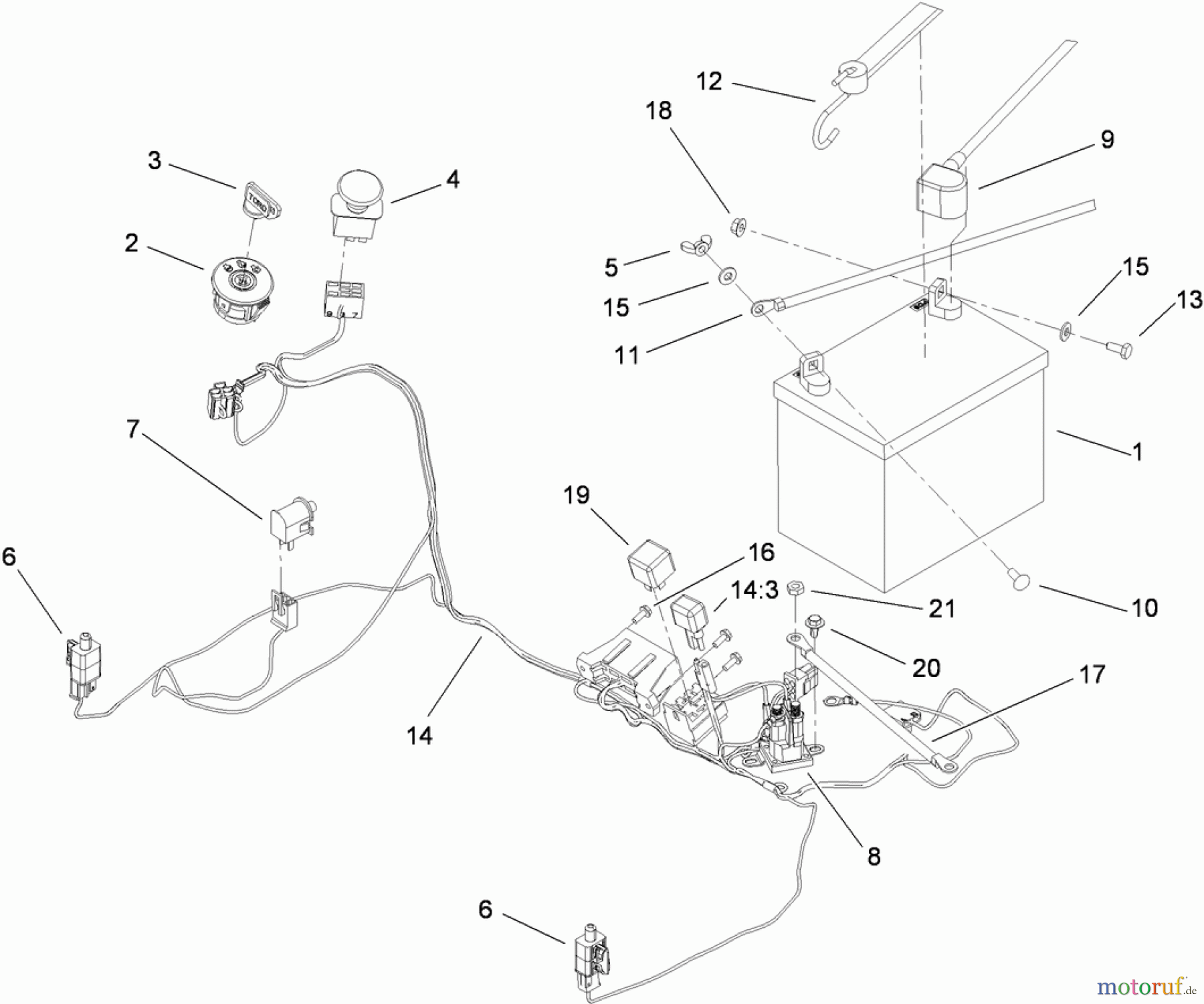

ELECTRICAL ASSEMBLY 74373 (Z5030) - Toro TimeCutter Z5030 Riding Mower, 2009 (290000001-290004012)

Toro Neu Mowers, Zero-Turn 74373 (Z5030) - Toro TimeCutter Z5030 Riding Mower, 2009 (290000001-290004012) ELECTRICAL ASSEMBLY
PosArticle NumberDescription
1 TR104-2493105-1692
2 TR110-6764SWITCH-IGNITION
3 Toro SchluesselTR63-8360Schluessel
4 TR93-9998Schalter-Messerkuppl.
5 TR32103-22Fluegelmutter
6 TR110-6765SWITCH-SINGLE POLE NO
7 TR82-2190Schalter
8 TR117-1197SOLENOID
9 TR110-6794CABLE-BATTERY, RED
10 TR3229-1Schraube
11 TR110-6793CABLE-BATTERY, BLACK
12 TR104-2466Batteriehalterung
13 TR321-3SCREW-HH
14 TR117-1216HARNESS-WIRING
14:3 TR100-4918Diode
14:1 TR109103Sicherung 30a
14:2 TR109102Sicherung (20)
15 TR3256-22Scheibe
16 TR32144-1Schraube
17 TR110-6792CABLE-BATTERY, RED
18 TR32128-33Mutter
19 TR98-7249RELAY
20 TR46-8560SCREW-HHFTF
21 TR3220-2Mutter
