Toro 74373 (Z5030) - TimeCutter Z5030 Riding Mower, 2009 (290000001-290004012) HEAD, VALVE AND BREATHER ASSEMBLY KOHLER SV720-0039 Spareparts
Start
Toro Neu
Mowers, Zero-Turn
74373 (Z5030) - Toro TimeCutter Z5030 Riding Mower, 2009 (290000001-29

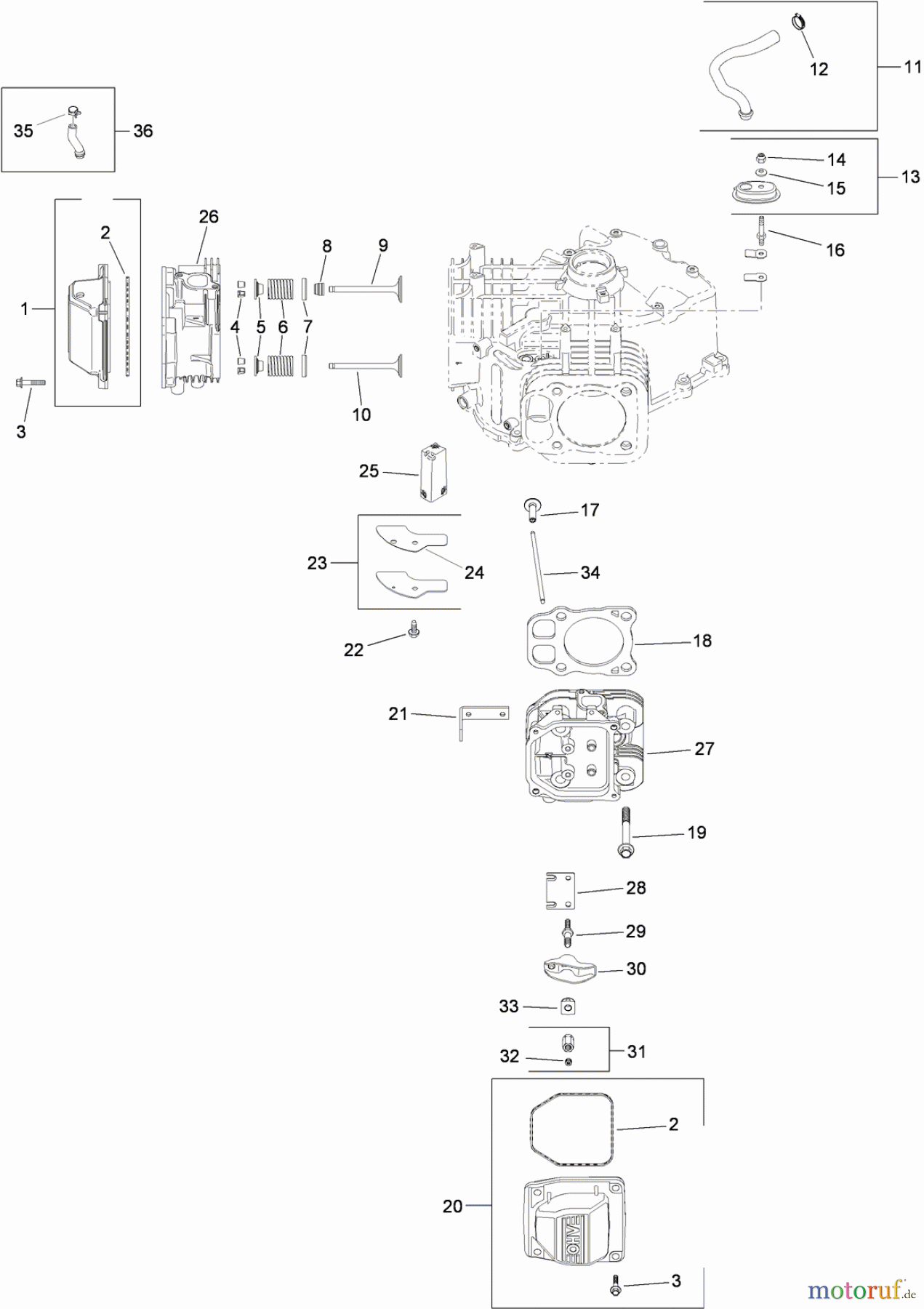

HEAD, VALVE AND BREATHER ASSEMBLY KOHLER SV720-0039
HEAD, VALVE AND BREATHER ASSEMBLY KOHLER SV720-0039 74373 (Z5030) - Toro TimeCutter Z5030 Riding Mower, 2009 (290000001-290004012)
Pos
Article Number
Description
1
KH3209606-S
KIT, BREATHER VALVE COVER
2
KH2415330-S
O-RING (YELLOW), VALVE COVER
3
KHM-651030-S
SCREW, FLG M6X1.0X30
4
KH1275503-S
KIT, RETAINER
5
KH2517328-S
CAP, VALVE SPRING
6
KH2408902-S
SPRING, VALVE
7
KH235011-S
RETAINER, SPRING
8
KH2503214-S
SEAL, VALVE BAND
9
KH2401701-S
VALVE, INTAKE (STD)
10
KH2401601-S
VALVE, EXHAUST (STD)
11
KH3232606-S
KIT, BREATHER HOSE
12
KH2523731-S
CLAMP, HOSE
13
KH3208102-S
KIT, BREATHER HOUSING
14
KHM-547050-S
NUT, LOCK M5X.8
15
KH3246801-S
WASHER, SEALING
16
KH3207203-S
STUD, BREATHER COVER
17
KH3201902-S
TAPPET
18
KH3284101-S
SIEHE 3284102-S-KOH
19
KH6208608-S
SCREW, FLG M10X1.5X90
20
KH24755141-S
KIT, VALVE COVER-PLAIN
21
KH2544503-S
STRAP, LIFT
22
KH25086397-S
SCREW, THREAD FORMING
23
KH3209604-S
COVER, BREATHER
24
KH3204101-S
GASKET, BREATHER COVER - DISC.
25
KH3205001-S
FILTER, BREATHER
26
KH3231813-S
KIT, #1 CYLINDER HEAD ASSEMBLY
27
KH3231814-S
KIT, #2 CYLINDER HEAD ASSEMBLY
28
KH3214609-S
PLATE, GUIDE
29
KH3207204-S
STUD, ROCKER
30
KH3218603-S
ARM, ROCKER
31
KH3210005-S
HEX NUT ASSEMBLY
32
KH25086168-S
SCREW, SET
33
KH2559901-S
PIVOT, ROCKER ARM
34
KH3241104-S
ROD, PUSH
35
KH3232607-S
KIT, FUEL PUMP HOSE
36
KH2523701-S
CLAMP, HOSE
KH2404149-S
GASKET, EXHAUST
KH2415327-S
O-RING, INTAKE PORT
KH3275503-S
KIT, CYLINDER HEAD HARDWARE
