Toro 74373 (Z5030) - TimeCutter Z5030 Riding Mower, 2009 (290004013-290999999) OIL PAN AND LUBRICATION ASSEMBLY KOHLER SV720-0039 Spareparts

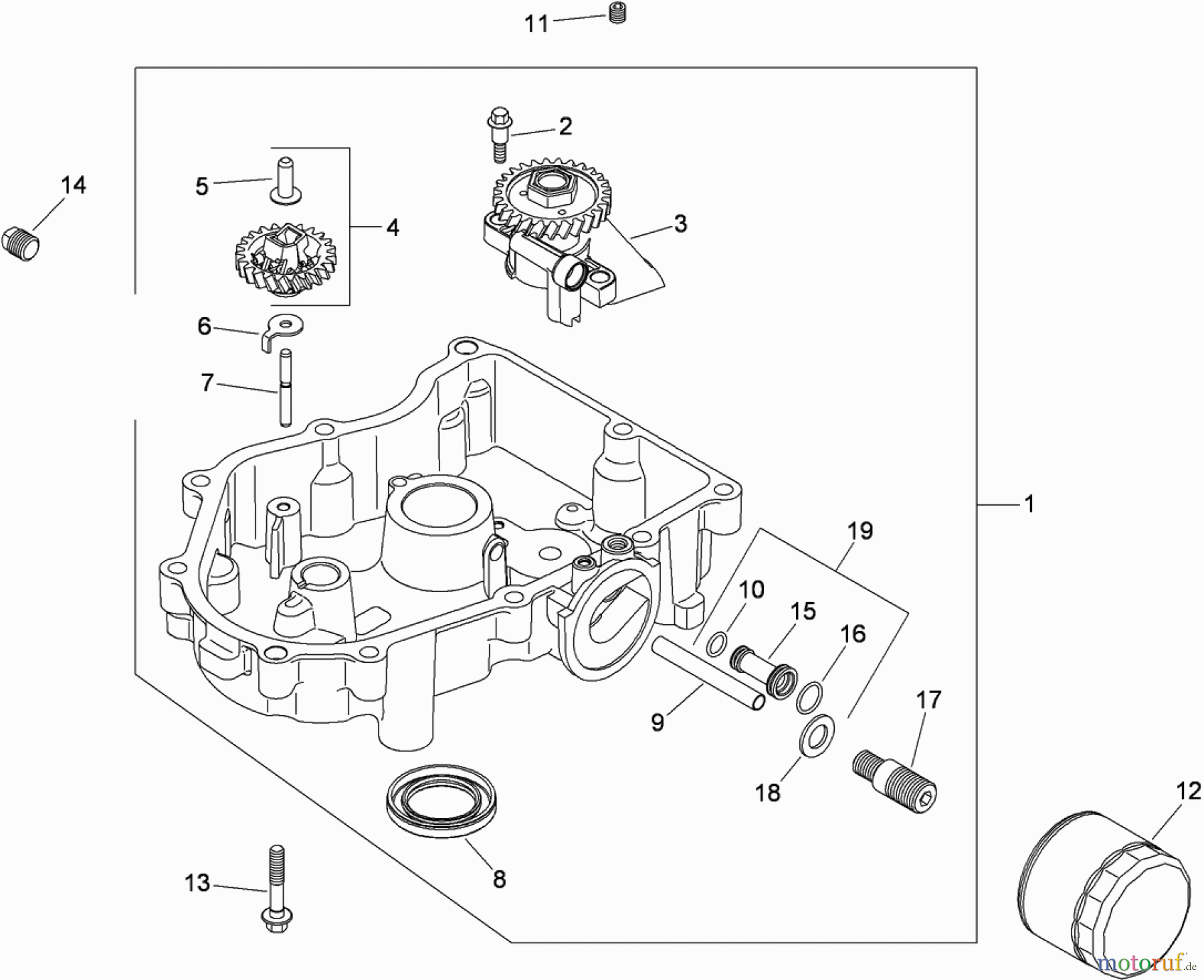

OIL PAN AND LUBRICATION ASSEMBLY KOHLER SV720-0039 74373 (Z5030) - Toro TimeCutter Z5030 Riding Mower, 2009 (290004013-290999999)

Toro Neu Mowers, Zero-Turn 74373 (Z5030) - Toro TimeCutter Z5030 Riding Mower, 2009 (290004013-290999999) OIL PAN AND LUBRICATION ASSEMBLY KOHLER SV720-0039
PosArticle NumberDescription
1 KH3219914-SOIL PAN ASSEMBLY
2 KH3208601-SSCREW, SHD THD FRM M6X.0X6.5
3 KH3239310-SPUMP ASSEMBLY, OIL
4 KH2404312-SKIT, GOVERNOR GEAR W/PIN
5 KH1238001-SPIN, GOVERNOR REGULATING
6 KH2444802-STAB, LOCKING
7 KH1214402-SSHAFT, GOVERNOR GEAR
8 Toro SEAL, OILKH2503206-SSEAL, OIL
9 KH3212301-STUBE, OIL FEED - FILTER TO PAN
10 KH2415301-SO-RING, OIL PICK-UP
11 KH2513960-SPLUG, CTSK PIPE 1/8"
12 KH1205001-SOIL FILTER
13 KH2408617-SSCREW, FLG M8X1.25X45
14 KH2513957-SPLUG, SQ HD PIPE 3/8"
15 KH3212306-STUBE, OIL FEED
16 KH3215305-SO-RING
17 KH3213605-SNIPPLE, OIL FILTER
18 KH3246802-SWASHER, FLAT
19 KH3212309-SOIL FEED TUBE ASSEMBLY
