Toro 74374 (Z5040) - TimeCutter Z5040 Riding Mower, 2008 (280000001-280999999) 50 INCH DECK AND SIDE DISCHARGE ASSEMBLY Spareparts

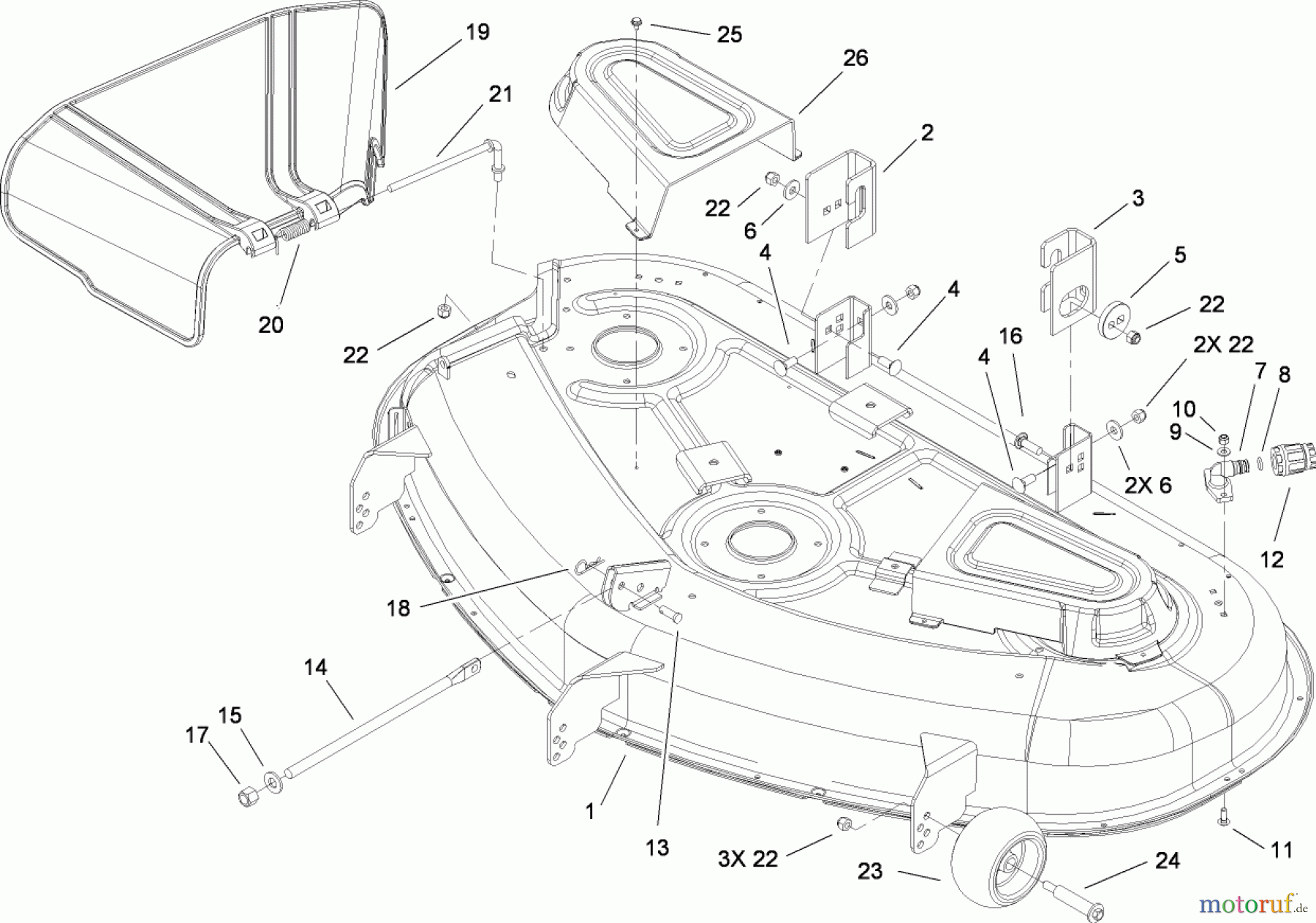

50 INCH DECK AND SIDE DISCHARGE ASSEMBLY 74374 (Z5040) - Toro TimeCutter Z5040 Riding Mower, 2008 (280000001-280999999)

Toro Neu Mowers, Zero-Turn 74374 (Z5040) - Toro TimeCutter Z5040 Riding Mower, 2008 (280000001-280999999) 50 INCH DECK AND SIDE DISCHARGE ASSEMBLY
PosArticle NumberDescription
1 TR110-679050 INCH DECK ASM
2 TR108-7836BRACKET-HANGER, RIGHT REAR
3 TR108-7838BRACKET-HANGER, LEFT REAR
4 Toro SchraubeTR3231-2Schraube
5 TR112-3980ECCENTRIC
6 TR80-6990Scheibe
7 TR95-2747FITTING-WASHOUT
8 TR46-6290O-RING, SEAL
9 TR3256-22Scheibe
10 Toro MutterTR3296-42Mutter
11 TR3229-1Schraube
12 TR95-3270SCHLAUCHFITTING
13 TR1-808284PIN-CLEVIS
14 TR108-7847ROD-LIFT
15 TR87-7270Scheibe
16 TR3231-28SCREW-CARR
17 TR3296-23Mutter
18 TR9335054Haarnadelsicherung
19 TR108-7895DEFLECTOR
20 TR110-6694SPRING-TORSION
21 TR112-3950ROD-PIVOT
22 TR32-9639
23 TR1-603299LAUFROLLE
24 TR112-3977BOLT-SHOULDER
25 TR32104-76Schraube
26 TR108-7890COVER-BELT
