Toro 74374 (Z5040) - TimeCutter Z5040 Riding Mower, 2008 (280000001-280999999) 50 INCH DECK SPINDLE AND BELT DRIVE ASSEMBLY Spareparts

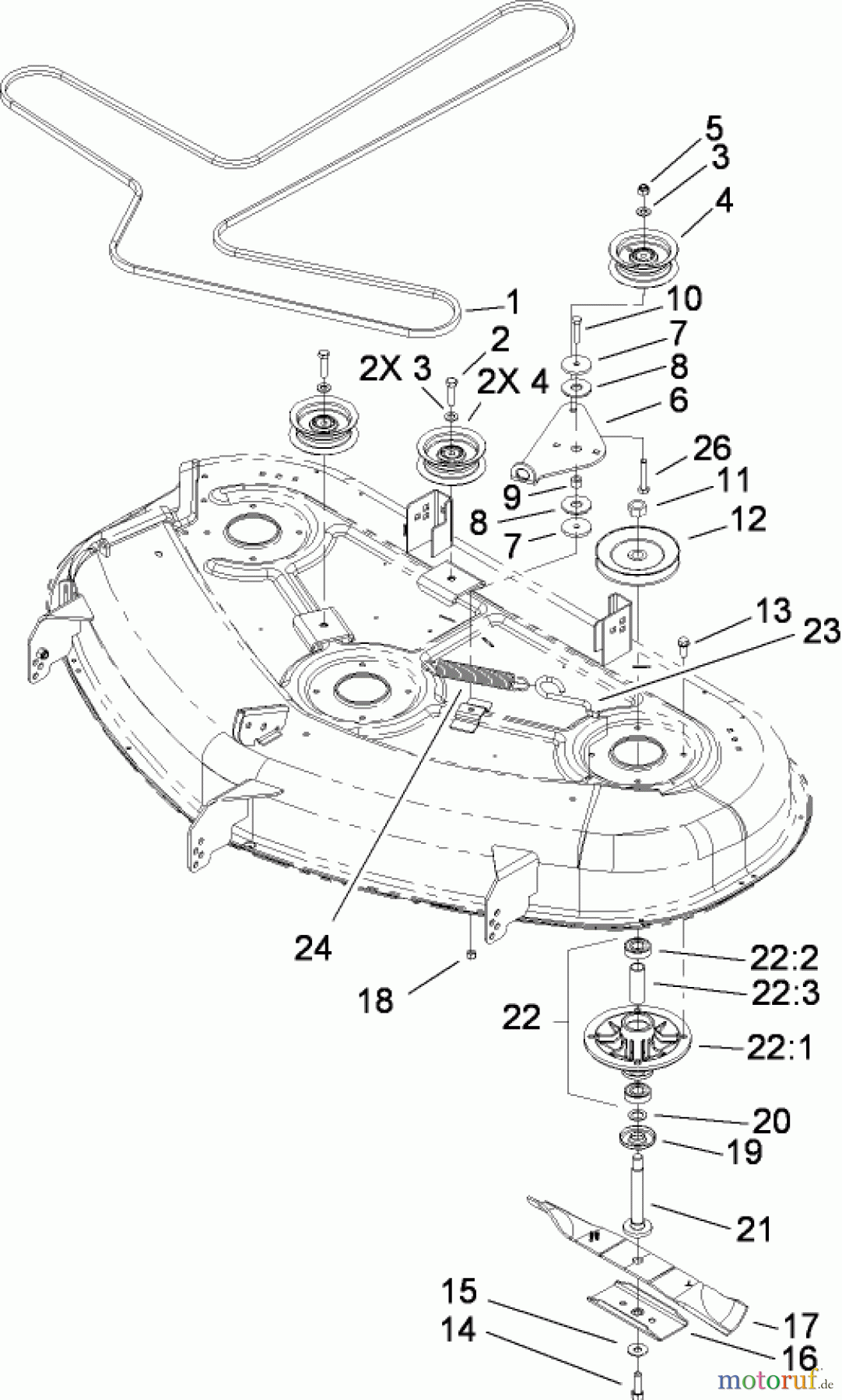

50 INCH DECK SPINDLE AND BELT DRIVE ASSEMBLY 74374 (Z5040) - Toro TimeCutter Z5040 Riding Mower, 2008 (280000001-280999999)

Toro Neu Mowers, Zero-Turn 74374 (Z5040) - Toro TimeCutter Z5040 Riding Mower, 2008 (280000001-280999999) 50 INCH DECK SPINDLE AND BELT DRIVE ASSEMBLY
PosArticle NumberDescription
1 TR110-6892V-BELT
2 TR323-8SCREW-HH
3 Toro WASHER-FLATTR3256-24WASHER-FLAT
4 TR106-2175Spannrolle
5 TR32-9639
6 TR114-8540ARM-IDLER
7 TR115-2455SPACER
8 Toro WASHER-FRICTION, COMPOSITETR114-0463WASHER-FRICTION, COMPOSITE
9 TR114-8549BUSHING
10 TR322-7Schraube
11 TR3219-6Mutter
12 TR110-6865PULLEY
13 Toro SchraubeTR32144-41Schraube
14 Toro SCHRAUBETR26-0671SCHRAUBE
15 Toro WASHER-BELLEVILLETR3290-465WASHER-BELLEVILLE
16 TR106-2248-03STIFFENER-BLADE
17 TR110-6837-03BLADE-17.5 INCH, HIGH LIFT
18 Toro MutterTR3296-29Mutter
19 TR80-4360SHIELD-BEARING
20 TR80-4380Distanzscheibe
21 TR117-1192SHAFT-SPINDLE
22 TR
22:1 TR88-4510Lagergehaeuse
22:2 TR100-1048Kugellager
22:3 TR62-3661Buechse
23 TR112-3973HOOK-RETURN, SPRING
24 TR1-603414Zugfeder
26 TR323-10Schraube
