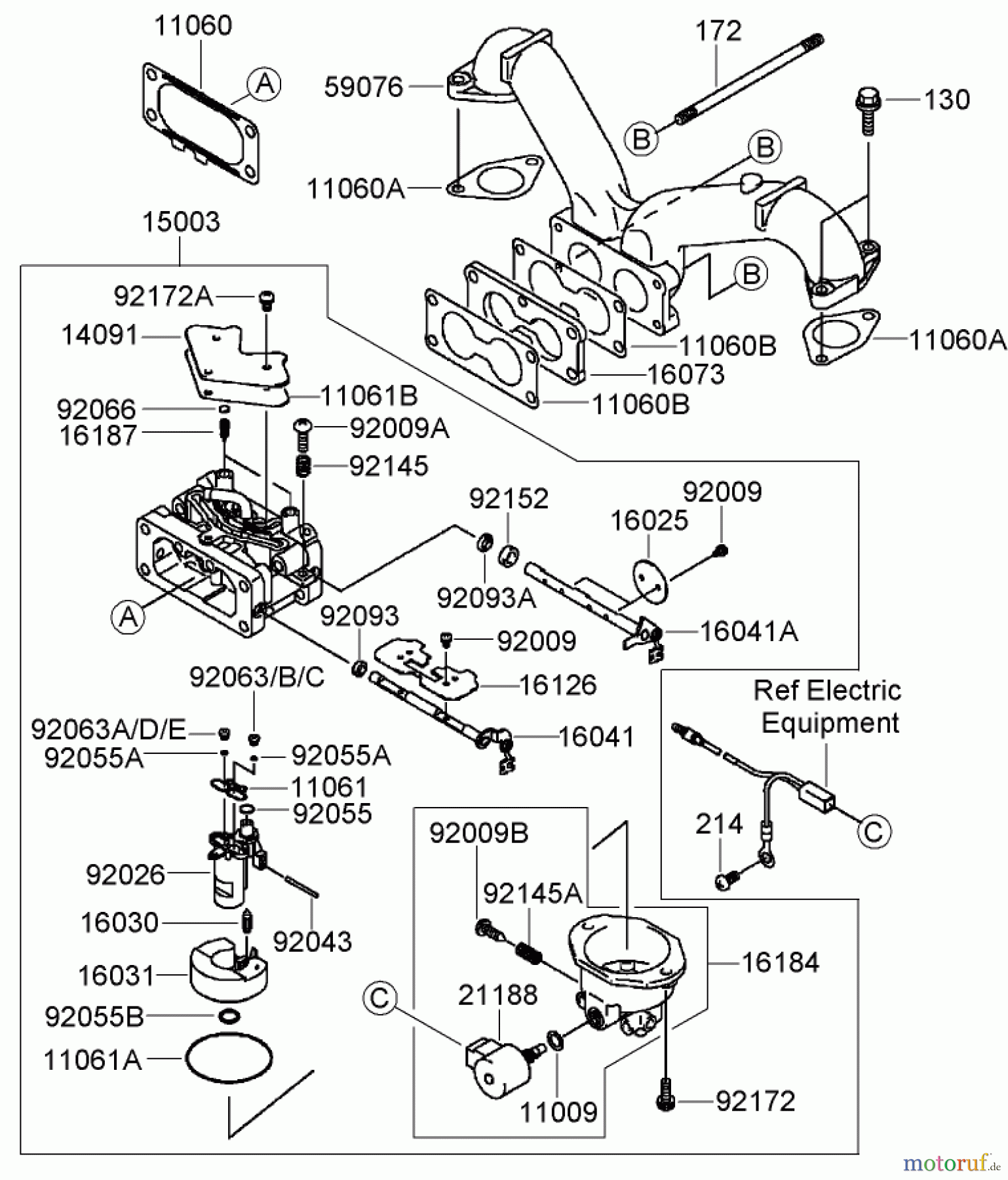

Toro 74374 (Z5040) - TimeCutter Z5040 Riding Mower, 2008 (280000001-280999999) CARBURETOR ASSEMBLY KAWASAKI FH641V-AS31 Spareparts

CARBURETOR ASSEMBLY KAWASAKI FH641V-AS31 74374 (Z5040) - Toro TimeCutter Z5040 Riding Mower, 2008 (280000001-280999999)

Pos	Article Number	Description
11009	KA110092056	DICHTUNG BENZINSTANDSMESSER
11060	KA110607009	LUFTFILTERDICHTUNG
11060A	KA110607011	GASKET
11060B	KA110607024	DICHTUNG B2
11061	KA110617037	GASKET
11061A	KA110617038	GASKET
11061B	KA110617039	GASKET
14091	KA140917031	COVER
15003	KA150047024	CARBURETOR-ASSY
16025	KA160257003	VALVE-THROTTLE
16030	KA160307004	VALVE-FLOAT
16031	KA160317003	FLOAT
16041	KA160417021	SHAFT-CARBURETOR
16041A	KA160417023	SHAFT-CARBURETOR
16073	KA160737005	INSULATOR
16126	KA161267015	VALVE
16184	KA161847017	CHAMBER-ASSY-FLOAT
16187	KA161877002	NEEDLE-JET
21188	KA211887003	SOLENOID
59076	KA590767011	MANIFOLD-INTAKE
92009	KA920097003	SCREW
92009A	KA920097004	SCREW
92009B	KA920097006	SCREW,DRAIN
92026	KA920267011	SPACER
92043	KA920437014	PIN
92055	KA920557024	RING-O
92055A	KA920557013	RING-O
92055B	KA920557016	RING-O
92063	KA920637051	JET-MAIN,#104
92063A	KA920637056	JET-MAIN,#102
92063B	KA920637075	JET-MAIN,#101
92063C	KA920637076	JET-MAIN,#098
92063D	KA920637079	JET-MAIN,#099
92063E	KA920637080	JET-MAIN,#096
92066	KA920667009	PLUG,EXPANSION
92093	KA920937001	SEAL,D=5.9
92093A	KA920937002	SEAL,D=6.9
92145	KA921457010	SPRING
92145A	KA921457011	SPRING
92152	KA921527005	COLLAR
92172	KA921727005	SCREW
92172A	KA921727006	SCREW
130	KA130AA0620	BOLT-FLANGED
172	KA172BA06105	BOLT-STUD
214	KA214AA0510	SCREW-PAN+-
