Toro 74387 (ZS 5000) - TimeCutter ZS 5000 Riding Mower, 2011 (311000001-311999999) FRAME, FRONT AXLE AND CASTER WHEEL ASSEMBLY Spareparts

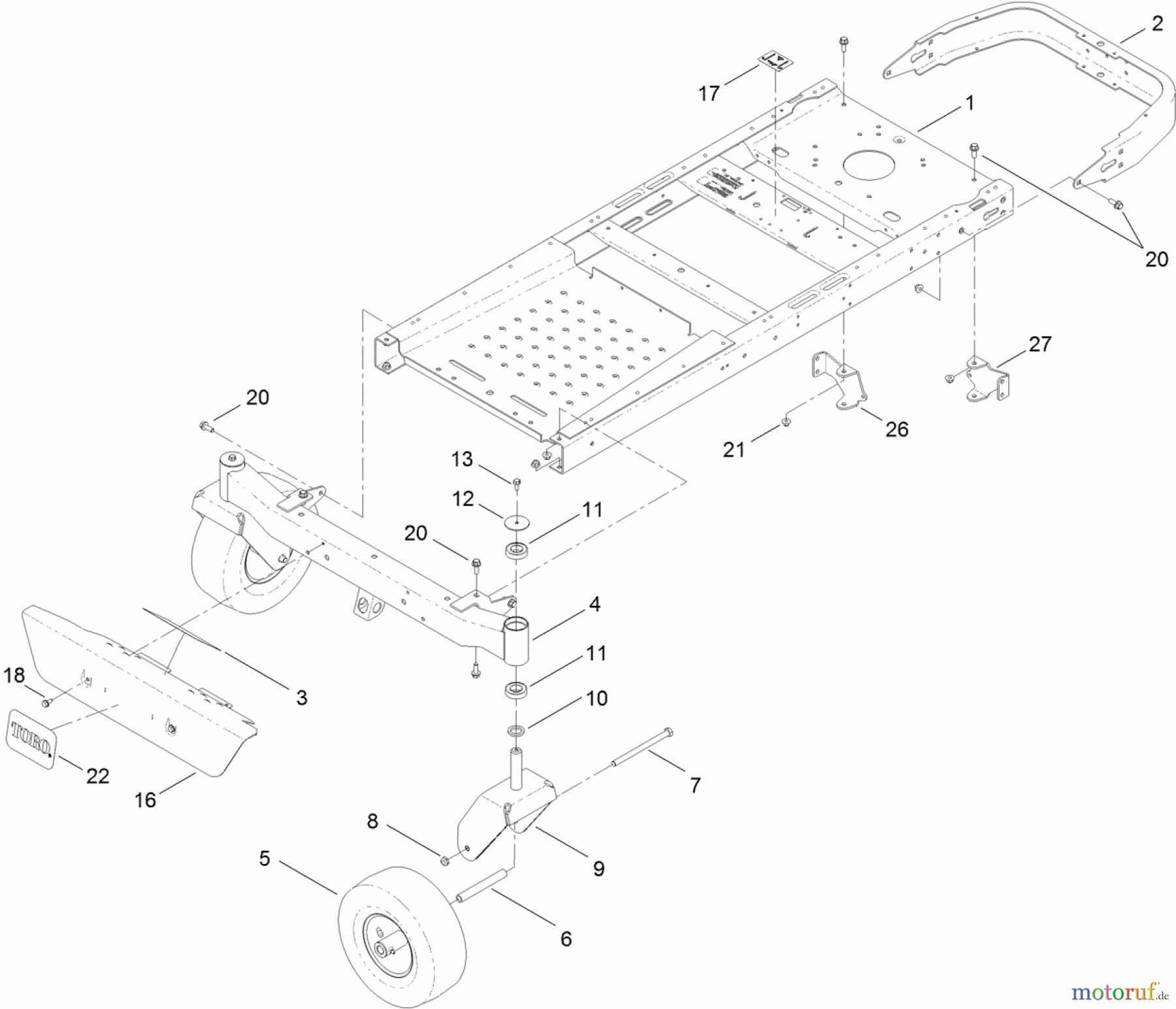

FRAME, FRONT AXLE AND CASTER WHEEL ASSEMBLY 74387 (ZS 5000) - Toro TimeCutter ZS 5000 Riding Mower, 2011 (311000001-311999999)

Toro Neu Mowers, Zero-Turn 74387 (ZS 5000) - Toro TimeCutter ZS 5000 Riding Mower, 2011 (311000001-311999999) FRAME, FRONT AXLE AND CASTER WHEEL ASSEMBLY
PosArticle NumberDescription
1 TR117-7403-01FRAME ASM
2 TR117-7415-01BUMPER-REAR (WIDE)
3 TR120-2239DECAL-DANGER
4 TR120-5513-01AXLE-FRONT, WIDE
5 TR119-347313 INCH WHEEL AND TIRE ASM
6 TR119-3475SPANNER
7 TR3253-7Federring
8 TR3296-45NUT-LOCK, NI
9 TR119-3349-01FORK-CASTER, WIDE
10 TR117-7394WASHER-THRUST
11 TR109-3678BEARING-BALL
12 TR119-8915WASHER
13 TR3234-47SCREW-HHF
16 TR117-7424-03FOOTREST
17 TR120-5465DECAL-TRANSPORT
18 TR32144-70Schraube
20 TR3234-42Imbusschraube
21 TR104-8301Mutter
22 TR99-4693DECAL
26 TR117-7459-01MOUNT-HYDRO, REAR (RH)
27 TR117-7460-01MOUNT-HYDRO, REAR (LH)
